Large Aperture Optical Mount 840-0150-T

• Adjustment of both angles is controlled from one side • Ideal for high density optical schemes • Fine adjustment screws with 0.25 mm pitch • Travel range ±2° • Hardened inserts under adjusters • Original L-shaped flat… Read more →

From $105 Configure & order →

Order

SKU	Product Type	Mount Material and Coating	Mounting Thread
840-0150-T	Manual Optical Positioner, 2-screws	Black Anodised Aluminum	M4	Out of stock $105

Specifications

Product Type	Manual Optical Positioner, 2-screws
Mount Material and Coating	Black Anodised Aluminum
Mounting Thread	M4
Angular Tilt Range	4 Deg
Tilt Sensitivity	0 deg 0 min 10 sec
Number of Axes	2
Mount Clear Aperture	31.8 mm
Width	50 mm
Length	21 mm
Height	73 mm

Description

Adjustment of both angles is controlled from one side
Ideal for high density optical schemes
Fine adjustment screws with 0.25 mm pitch
Travel range ±2°
Hardened inserts under adjusters
Original L-shaped flat spring

Precision Optical Mounts of Side Control enable to greatly increase the thickness of optical elements as it has a convenient access to the adjustment handles.

L-shaped flat spring of original design renders the great stability of a mount's platform. The spring performs two functions: work as a usual spring, and eliminate polarizing rotation of the platform.

Angular range is ±2.5° about each of two orthogonal axes. Precision screws with pitch of 0.25 mm render sensitivity of 10 arcsec.

Three M4 tapped holes on the sides of the base allow a variety of mounting configurations, e.g. horizontal and vertical.

The mount is produced from black anodized aluminium. L-shaped spring is produced from high quality stainless spring steel.

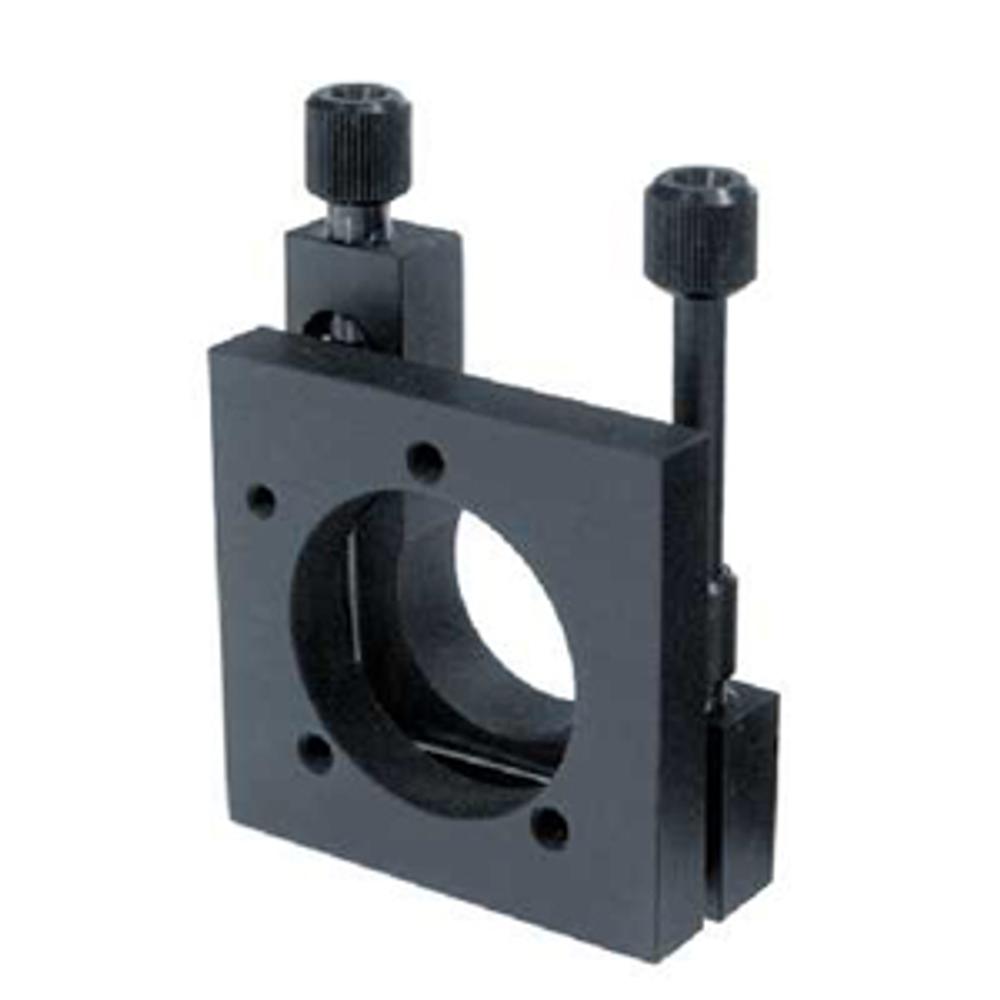

Large Aperture Optical Mount 840-0150-T on its platform has a Ø31.8 aperture. It is designed for precise orthogonal adjustment of mirrors.
