Base Plates

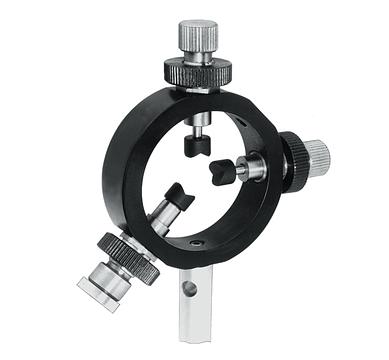

Adjustable Lens Mounts 830-0030 [OBSOLETE]

The 830-0030 series adjustable lens mounts provide convenient, precise optics centering, repeatable removal and replacing. Lenses are positioned and locked in place by three ri...

From $141

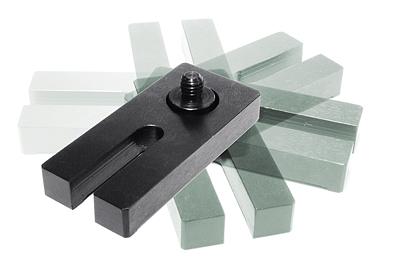

Base Plate with Rotary Clamp 820-0130

820-0130 is used for random positioning on an optical table when these elements can not be directly fastened to the optical table in required place. The Rod or Rod Holder are p...

From $11

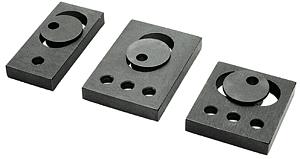

Base Plates with Eccentric Clamp 820-0120

Bases 820-0120 are used to clamp posts and post holders in random positions. Attach a post to the base using an M6 screw. Set the position. The base rotates around the clamp thr...

From $16

Collar 820-0030

The 820-0030 collar allows to fix model 820-0010 Standard Rods at desirable height and to rotate the rod without changing height. Finish: black anodized aliuminium.

From $8

Compact Magnetic Bases 820-0150

Small components may be quickly positioned on ferromagnetic optical tables and breadboards or translation stages using Compact Magnetic Bases 820-0150.

From $13

Connecting Cones 820-0250, 820-0254

Connecting Cones 820-0250 and 820-0254 are particularly useful for connecting elements when specific orientation plane is required. For example in spatial filter 990-1000, or in...

From $6

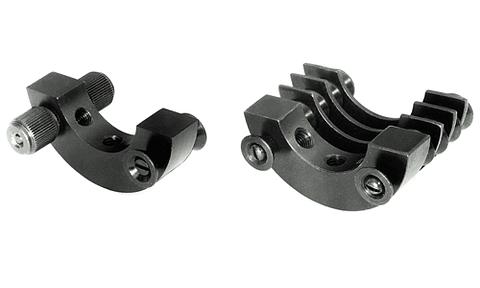

Filter Holders 830-0060A, 830-0070A

Model 830-0060A and 830-0070A Filter Holders are designed to locate plate optics with maximum clear aperture. Each plate is held separately to prevent scratching and is register...

From $26

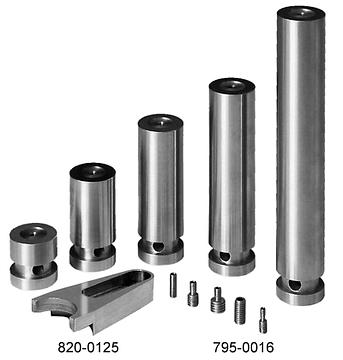

Fixed Pedestals 820-0055

• Solid stainless steel rod Ø 25 mm • Random positioning • Exceptional stability  [Image]   Table Clamp 820-0125 and thread adapters are designed for clamping Fixed Pedest...

From $21

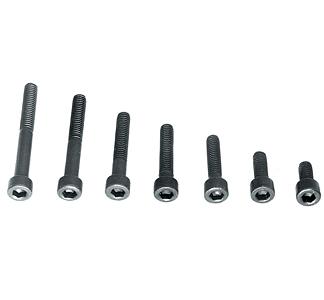

Hex Key, Screws 820-0260, 820-0270, 820-0280

The “L” shaped 820-0270 hex key is very convenient in all mounting situations. The 820‑0260 screw is very useful for mounting of rods, rod holders, large rod 810-0040 directly ...

From $1

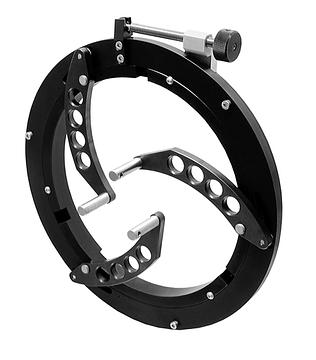

Large Self-Centering Lens/Optics Mounts 830-0027

Self-Centering Optics Mount 830-0027 reliably centres and securely holds round optics and cylindrical objects. This mount is particularly valuable when lenses of different diame...

From $423

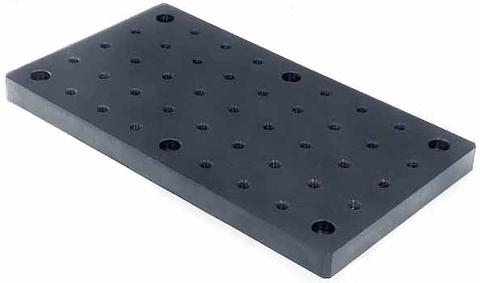

Large Table Base 810-0070

The model 810-0070 Large Table Base can be used in the same way as a standard table base, as well as be mounted above the optical table (on large rods or on the side of the tabl...

From $104

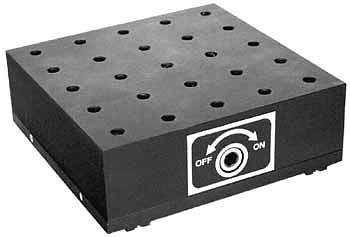

Low-Profile Magnetic Base 820-0140

• Highest holding force – up to 140 kg • Non-magnetic mounting surface • M6 mounting holes pattern on 25 mm centers • Low field leakage Low-profile Magnetic Base features: a hi...

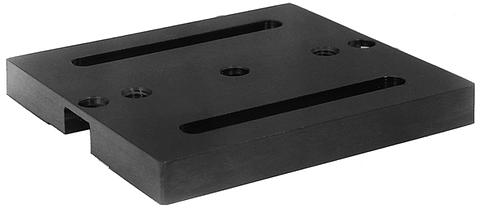

Movable Base 820-0090

The 820-0090 movable base provides 50 mm longitudinal translation of one or two mounted rod holders, translators or riser blocks. Finish: black anodized aluminium.

From $31

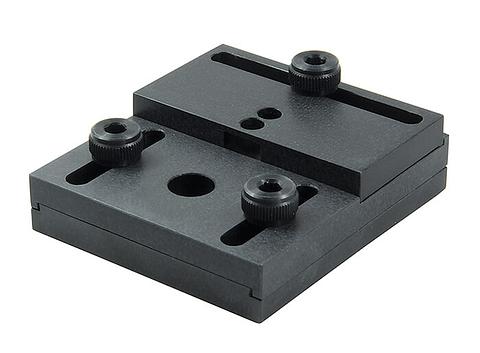

Movable Base 820-0100

The 820-0100 adjustable base provides separate X-Y adjustment. It is cost-effective solution of non-critical two axis positioning of rod holders, translators and riser blocks. ...

From $61

Movable Bases 820-0060, 820-0070, 820-0080

The 820-0060 movable base is especially convenient for close space situations. Its primary use is to position rods and small riser blocks. Finish: anodized aluminium. The 820-...

From $9

Multiple Mounting Plates 810-0035

Multiple Mounting Plates 810-0035 allow to assemble groups of accessories mounted in close proximity and acting as one unit (e.g. compound lens). For example, the slot of the pl...

From $32

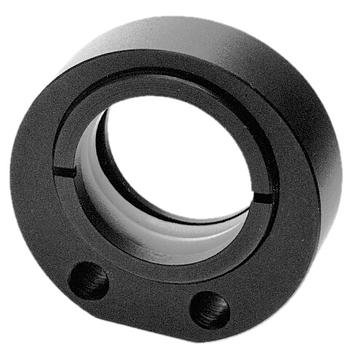

Optical Component Mounts 830-0037

Optical Component Mounts 830-0037 can be used to hold round and thin optical elements of standard sizes. Mounts vary in dimensions so as to support diameters from 12,7 to 75 mm ...

From $22

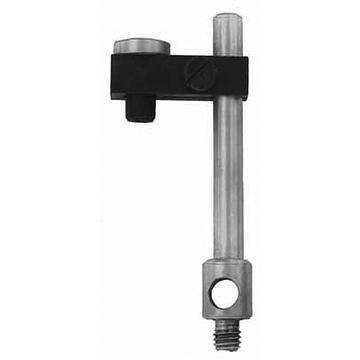

Optics Clamp 830-0050

The 830-0050 clamp is especially convenient for fast clamping of optical elements on bases, translators, rotators, and other surfaces with M6 and M4 tapped holes. Rod Material:...

From $22

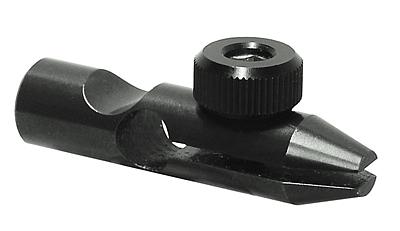

Plate Clamp 830-0055

Plate Clamp 830-0055 holds thin lightweight plates, like filters, transparencies, resolution targets and razor blades used in knife edge experiments. These black anodized alumi...

From $18

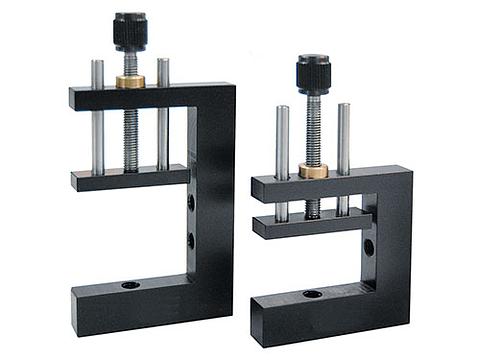

Rectangular Optics Holder 830-0100, 830-0101, 830-0110, 830-0111

Rectangular optics holders 830-0100 and 830-0110 provide easy and safe mounting of rectangular optics. • Guiding pins ensure correct and reliable positioning of optical compone...

From $48

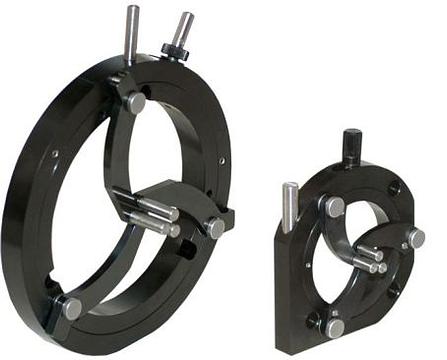

Self-Centering Lens/Optics Mounts 830-0025

Self-Centering Lens/Optics Mounts reliably centres and securely holds round optics and cylindrical objects. This device is particularly valuable when lenses of different diamete...

From $115

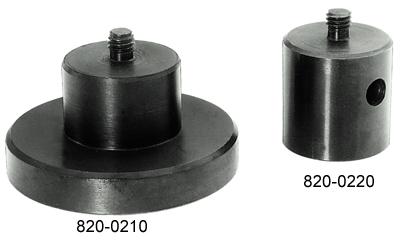

Solid Base Height Extenders 820-0210, 820-0220

The 820-0210 solid base provides mounting of components at fixed optical axis height. It adds 25 mm height for every component to be mounted on. The 820-0220 height extender add...

From $9

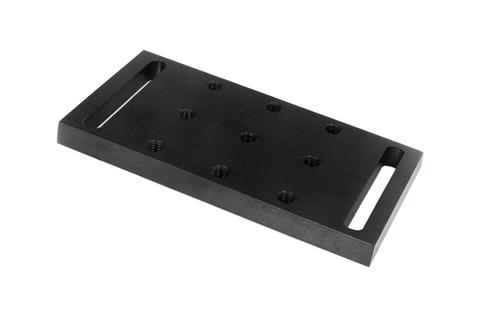

Table Bases 820-0110

The 820-0110-02 and 820-0110-04 standart table bases with 9 and 12 threaded M6 holes respectively allow positioning of all basemounted accessories with M6 tapped holes or male t...

From $25

Table Clamp 820-0125

For mounting silent rods 795-0010 or fixed pedestals 820-0055 to tables, you may use thread adapters 795-0016 or clamp 820-0125. Table clamp 820-0125 can also be used for mounti...

From $18

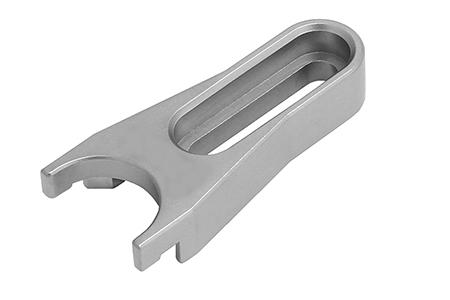

Table Clamp 820-0240

Using Table Clamps 820-0240 you can position any base and most base mounted components at any angle on the table and not be limited by the pattern of mounting holes of the optic...

From $13

Table Clamps 820-0230

The 820-0230-02 and 820-0230-04 clamps provide fixing of movable bases and other components to a surface with M6 tapped holes. It is useful when direct mounting of components is...

From $21

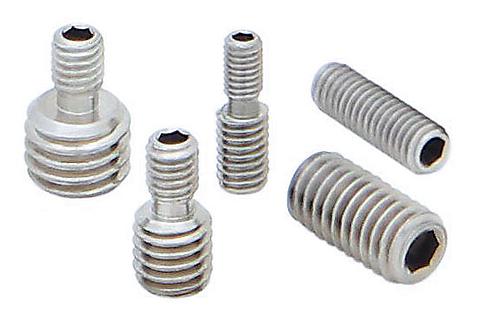

Thread Adapters 795-0016

Thread Adapters 795-0016 are used to connect components when precise orientation in plane is not required. Some adapters have different threads on ends. Thus, components with M4...

From $2

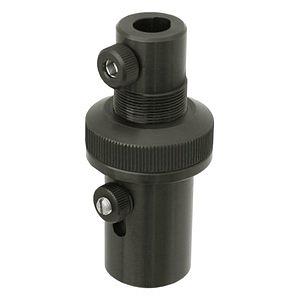

Translating Post Holder 820-0045

• Fine post height adjustment within 13 mm rotation; • One rotation of adjustment ring adjusts height of post by 1 mm; • High stability position locking; Material: Aluminium. ...

From $63

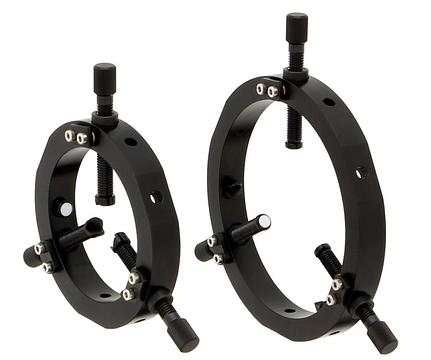

Universal Adjustable Lens/Optics Mounts 830-0035

Universal Adjustable Lens/Optics Mounts 830-0035-04 and 830-0035-02 are used to accommodate any round objects of any thickness, like lenses, mirrors or lasers. Three support sha...

From $138

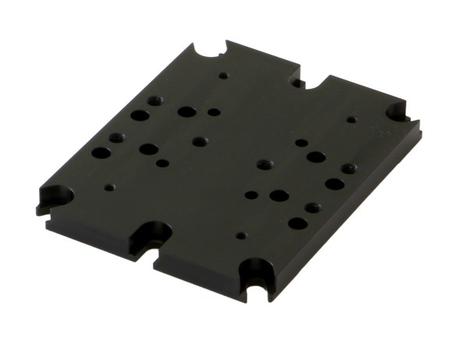

Universal Base Plate 820-0136

Universal Base Plate 820-0136 is designed to fix listed translators to optical tables and other flat surfaces. Fits metric and imperial hole patterns. Designed to be used with: ...

From $62
