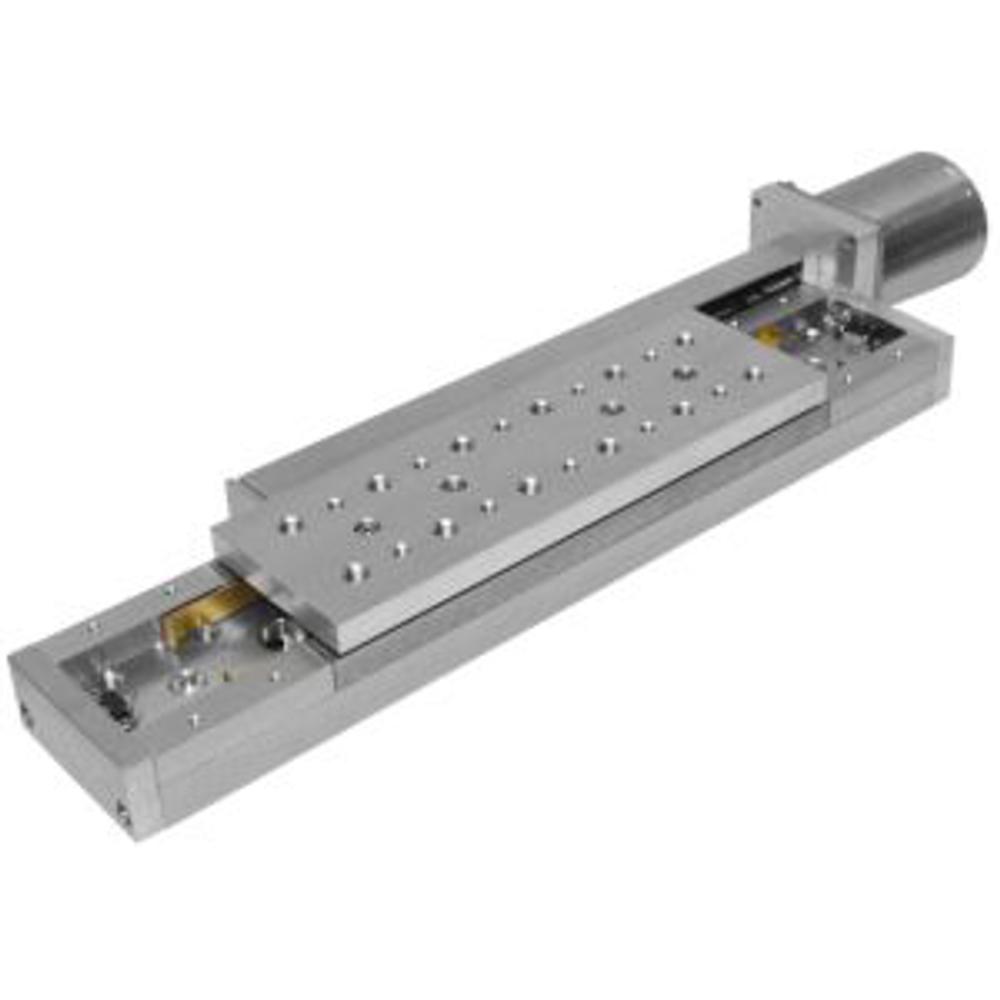

Vacuum Compatible Motorized Stages 960-0060V
• Narrow • Compact design • Resolution 0.31 µm (1/8 step) • High guide way accuracy • Lead screw pitch 0.5 mm • X-Y-Z configurations available • Non vacuum version Vacuum Compatible Motorized Stages are equipped with… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 810-0160V | angle bracket for Z axis assembly |
Out of stock
—
|
| 820-0115V | base plate for mounting to optical tables |
Out of stock
—
|
| 960-0060V-06 | travel range - 50 mm |
Out of stock
—
|
| 960-0060V-08 | travel range - 100 mm |
Out of stock
—
|
| 960-0060V-10 | travel range - 150 mm |
Out of stock
—
|
| 960-0060V-12 | travel range - 200 mm |
Out of stock
—
|
Specifications
| Lead screw pitch | 0.5 mm |
| Resolution in full step | 2.5 µm |
| Max. speed | 5 mm / s |
| Load capacity Horizontal Vertical | 8 kg 3 kg |
| Vacuum, Torr | 10⁻⁶ |
| Motor connector | DB9(M) |
| Stepper motor | VSS42 |
| Wiring scheme of the motor VSS42 | bipolar |
| Design Voltage of the motor VSS42, V | 42 |
| Phase Current of the motor VSS42, A | 1.2 |
| Holding Torque of the motor VSS42, Nm | 0.13 |
| Detent Torque of the motor VSS42, mNm | 5 |
| Phase Resistance of the motor VSS42, Ohm | 1.7 |
| Inductance of the motor VSS42, mH | 3 |
| Steps / Revolution of the motor VSS42 | 200(1.8°) |
| Assemblies of the motor VSS42 X-Y Z To flat surface | directly 810-0160V 820-0115V |
| Snap-action limit switch | two end switches |
| Type | Pushed is "closed" |
Description
- Narrow
- Compact design
- Resolution 0.31 µm (1/8 step)
- High guide way accuracy
- Lead screw pitch 0.5 mm
- X-Y-Z configurations available
- Non vacuum version
Vacuum Compatible Motorized Stages are equipped with vacuum compatible stepper motor. Stages stack in X-Y configurations directly using M6 screws. Angle Bracket 810-0160V is used to mount stages for vertical translation; it is also used for X-Y-Z configurations. To mount stages on a flat surface you will need 820-0115V base plate.
