Angle Brackets

Angle Bracket 810-0100

The main use of 810-0100 mini bracket is mounting of 860-0010 translators for three axis positioning possibility. The 810-0100 mini bracket has two M6 tapped holes on 25 mm cent...

From $33

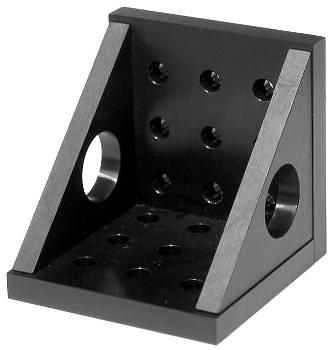

Angle Bracket 810-0110

Angle bracket 810-0110 is used to assemble Z axis in translation system 860-0051XYZ. Material: black anodized aluminium.

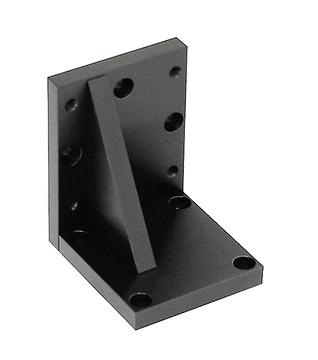

Angle Bracket 810-0112

Designed to be used with: - Aluminium Ball Bearing Stages 860-0096 - Motorized Translation Stage 970-0080 - Mini Rotation Stage 860-0170 Material: black anodized aluminium.

Angle Bracket 810-0115

810-0115 Angle Bracket is designed to be used with: - Low Profile Aluminium Stages 860-0070-02 - Motorized Translation Stages 960-0070-02. Material: black anodized aluminium.

Angle Bracket 810-0116

Angle Bracket 810-0116 designed to be used with: - Low Profile Aluminium Stages 860-0070-04 - Motorized Translation Stages 960-0070-04 Material: black anodized aliuminium.

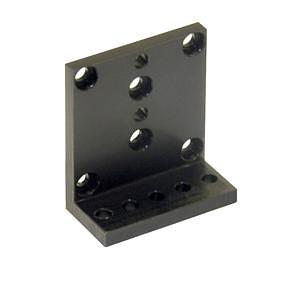

Angle Bracket 810-0120

Angle Bracket 810-0120 is an universal attachment unit. Is is ideally suited to attach together Micro Traslation Stages 860-0100 oriented relative to each other orthogonally on ...

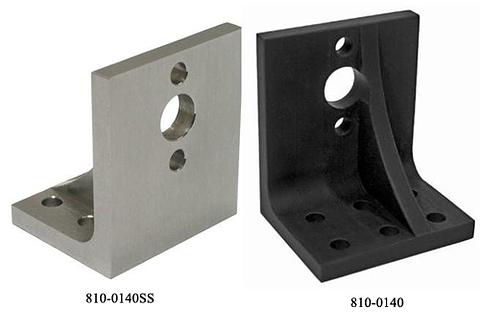

Angle Bracket 810-0140

Angle Bracket 810-0140 is ideally suited for orthogonally attaching Single-Axis Translation Stage 860-0092-01 to a Two-Axes Translation Stage 860-0092-02 or 860-0094. 810-0140 m...

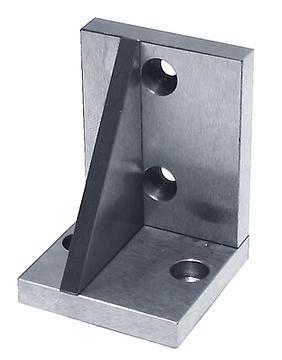

Angle Bracket 810-0145

Designed to be used with: - Stainless Steel Translation Stages 860-0054. Material: Stainless Steel.

From $57

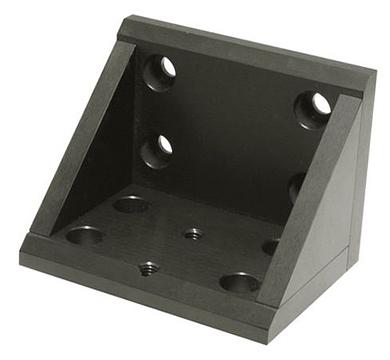

Angle Bracket 810-0146

Designed to be used with: - Stable Steel Translation Stage 860-0052, - Stable Aluminium Translation Stage 860-0053. Material: Steel, Stainless Stell or Black Anodized Alumin...

Angle Bracket 810-0150

Designed to be used with: - Narrow Aluminium Translation Stages 860-0060-02, 860-0060-04 - Narrow Motorized Translation Stages 960-0060-02. Material: Black anodized aluminium.

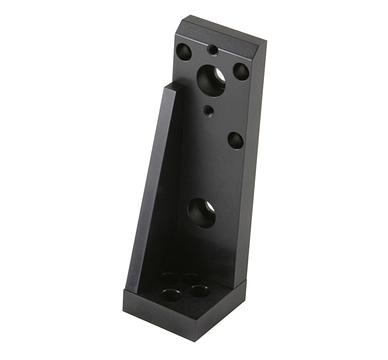

Angle Bracket 810-0150-01

Designed to be used with: - Narrow (width 30 mm) Aluminium Translation Stages 860-0060-05 - Narrow Motorized Translation Stage 960-0050

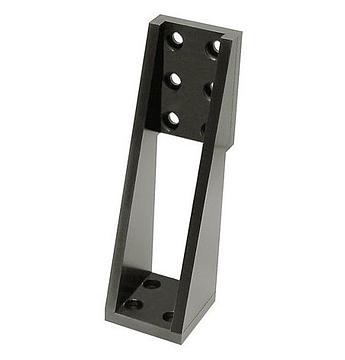

Angle Bracket 810-0160

Designed to be used with: - Medium Aluminium Stages 860-0060-06, 860-0060-08, 860-0060-10 - Medium Motorized Translation Stages 960-0060-06, 960-0060-08, 960-0060-10, 960-0060...

Angle Bracket 810-0165

Angle Bracket 810-0165 is designed to be used with 860-0155 Rotation stage and 960-0161 Motorized Rotation Stage. Material: Aluminium Finish: Black Anodized

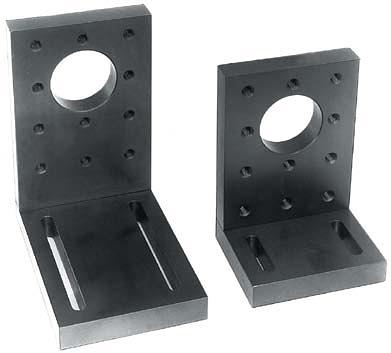

Angle Brackets 810-0080, 810-0090

The 810-0090 standard and 810-0080 large angle brackets have M6 tapped holes on 25 mm centers. The slots in the base allow longitudinal positioning on the table top. These brack...

From $73

Mini Angle Brackets 810-0130

Mini Angle Brackets 810-0130 are used to increase the functionality of Mini and Micro series Optical positioners. Model 810-0130-02 enables to establish a postioner at any angl...
