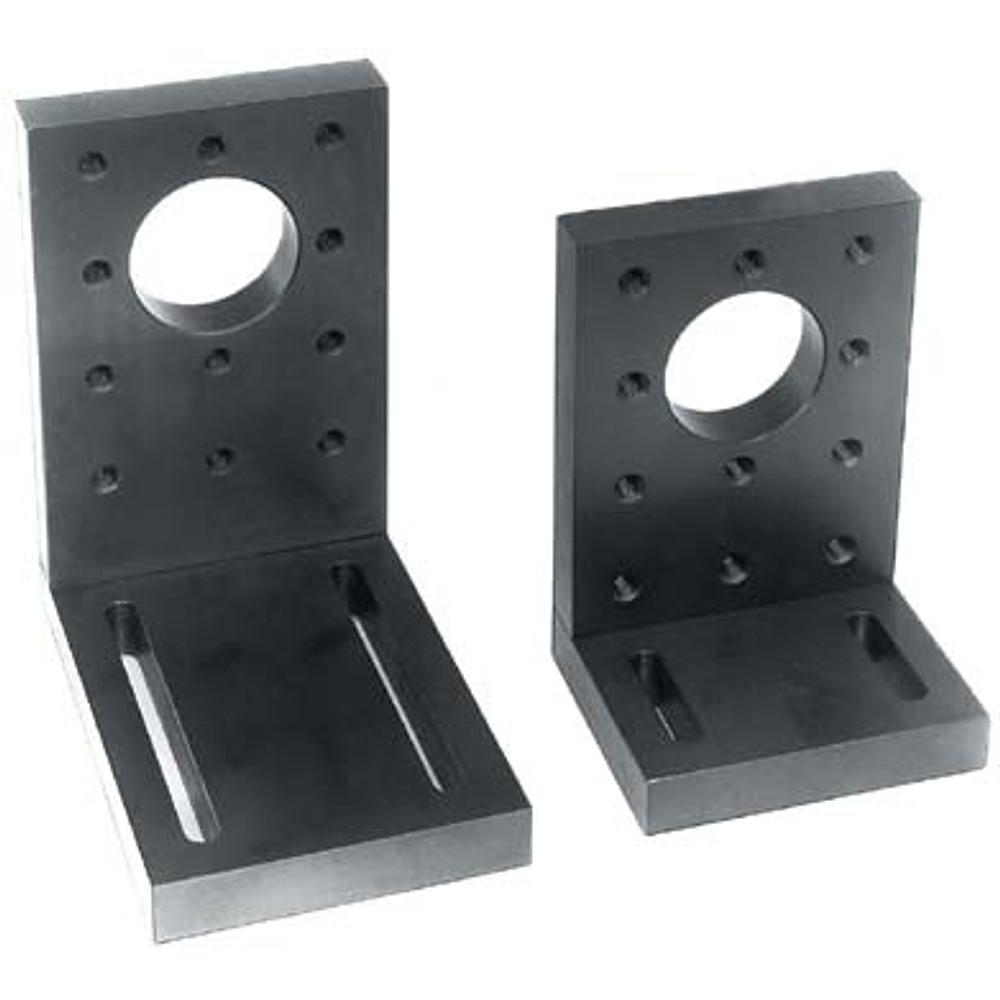

Angle Brackets 810-0080, 810-0090
The 810-0090 standard and 810-0080 large angle brackets have M6 tapped holes on 25 mm centers. The slots in the base allow longitudinal positioning on the table top. These brackets are especially useful for mounting of… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Width | Length | Height | Thickness | Mount Material and Coating | |
|---|---|---|---|---|---|---|---|
| 810-0080 | Angle Bracket | 76 mm | 114 mm | 125 mm | 14 mm | Black Oxidized Steel |
Out of stock
$86
|
| 810-0090 | Angle Bracket | 76 mm | 64 mm | 110 mm | 14 mm | Black Oxidized Steel |
Out of stock
$76
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Angle Bracket |
| Width | 76 mm |
| Thickness | 14 mm |
| Mount Material and Coating | Black Oxidized Steel |
| Mounting Thread | M6 |
| Hole spacing | 25 mm |
Description
The 810-0090 standard and 810-0080 large angle brackets have M6 tapped holes on 25 mm centers. The slots in the base allow longitudinal positioning on the table top. These brackets are especially useful for mounting of translators 860-0020, 860-0030, 860-0040 and 860-0050.
Orthogonal surfaces of models 810-0080 and 810-0090 are perpendicular within 0.015 mm.
Finish: black oxidized steel.
