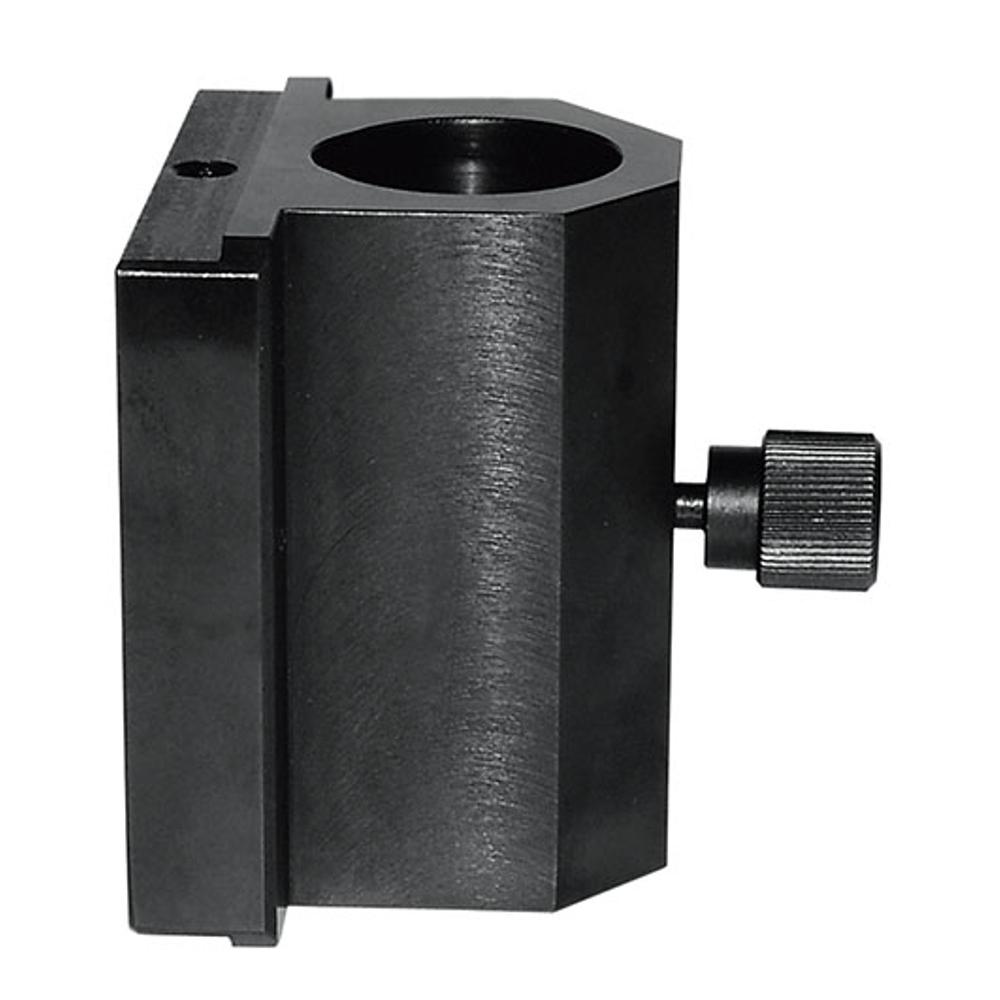

Mounting Large Rod Clamp 810-0061
Mounting Large Rod 810-0061 has one mounting surface with M6 holes. It provides coarse vertical positioning of mounted components along the Large Rod 810-0040 or 810-0050. The 820-0090 and 820-0060 bases and the … Read more →
Order
| SKU | Product Type | Width | Length | Height | Mount Material and Coating | |
|---|---|---|---|---|---|---|
| 810-0061 | Large Rod Mounting Clamp | 50 mm | 70 mm | 65 mm | Black Oxidized Steel |
2 in stock
Ships in: 2–5 calendar days
$59
|
Specifications
| Product Type | Large Rod Mounting Clamp |
| Width | 50 mm |
| Length | 70 mm |
| Height | 65 mm |
| Mount Material and Coating | Black Oxidized Steel |
| Weight | 1 kg |
| Mounting Thread | M6 |
Description
Mounting Large Rod 810-0061 has one mounting surface with M6 holes. It provides coarse vertical positioning of mounted components along the Large Rod 810-0040 or 810-0050. The 820-0090 and 820-0060 bases and the 810-0080, 810-0090 angle brackets can be fastened to the edge or to the mounting surface of positioner.

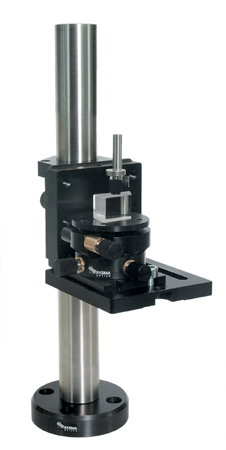

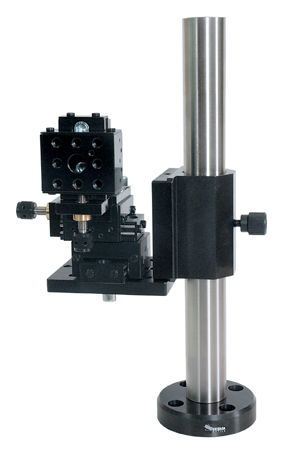

Mounting Option: Mounting Option:
Large Rod with rod base 810-0050, Large Rod with rod base
810-0050,
Large Rod Mounting Clamp 810-0061, Large Rod Mounting Clamp 810-0061
Movable Base 820-0090, Movable Base 820-0090,
Tilt/Rotation Stage 860-0110 Compact Translation Stages
860-0010XYZ

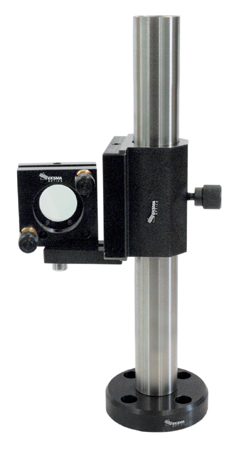

Mounting Option:
Large Rod with rod base 810-0050,
Large Rod Mounting Clamp 810-0061,
Kinematic Mirror and Beamsplitter Mount 840-0020,
Movable Base 820-0060
