Tilt/Rotation Stage 860-0110
The model 860-0110 tilt/rotation stage provides two independent tilt adjustments within ±5° range and ±5° in-plane rotation adjustment. Precision screws provide 9 arcsec resolution in rotation and both tilt planes… Read more →
Order
| SKU | Product Type | Rotation Range, coarse | Platform Size, mm | |
|---|---|---|---|---|
| 860-0110 | Tilt Platform | 10 deg 0 min 0 sec | Ø48 |
Out of stock
$236
|
Specifications
| Product Type | Tilt Platform |
| Mount Material and Coating | Black Anodised Aluminum |
| Rotation Range, coarse | 10 deg 0 min 0 sec |
| Platform Size, mm | Ø48 |
| Mounting Thread | M4 |
| Width | 56 mm |
| Length | 71 mm |
| Height | 88 mm |
| Rotation Resolution | 0 deg 0 min 9 sec |
Description

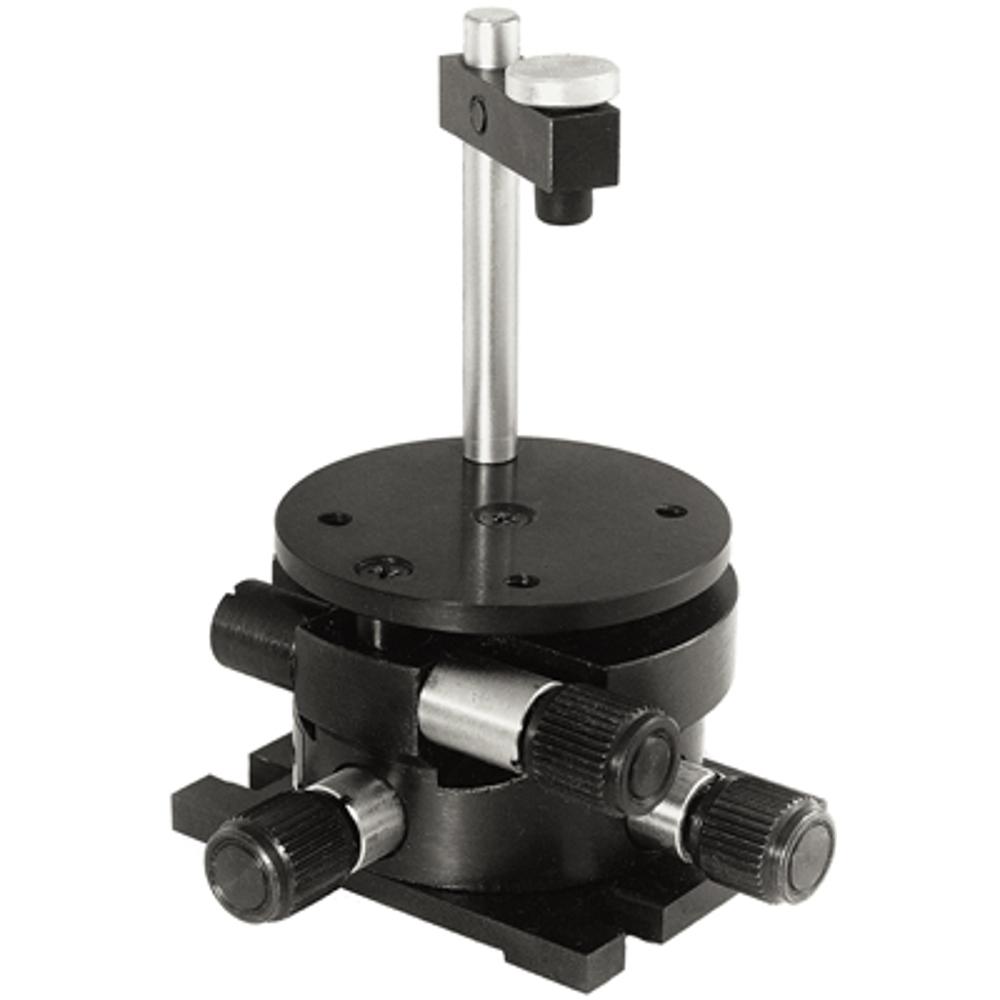

The model 860-0110 tilt/rotation stage provides two independent tilt adjustments within ±5° range and ±5° in-plane rotation adjustment. Precision screws provide 9 arcsec resolution in rotation and both tilt planes (adjustment screws M6×0.25, 3 pcs.).
The mounting clamp with a spring-loaded disengagement knob allows easy insertion and removal of optical components up to 39 mm height and 30×30 mm in square.
Model 860-0110 stage is attached to tables through clearance holes in its base. The main elements of the table are finished with black anodized aliuminium.
