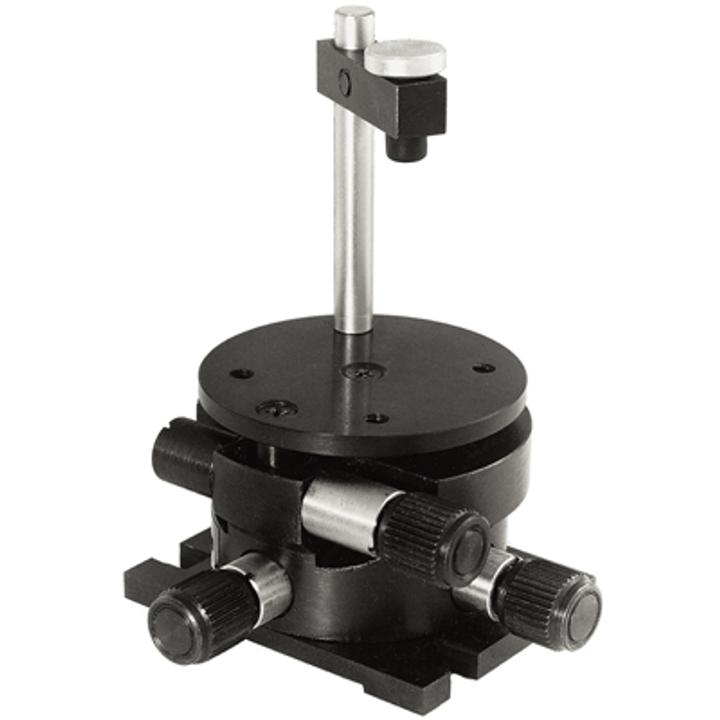

Tilt/Rotation Stage 860-0110 SKU: 860-0110
The model 860-0110 tilt/rotation stage provides two independent tilt adjustments within ±5° range and ±5° in-plane rotation adjustment. Precision screws provide 9 arcsec resolution in rotation and both tilt planes (adjustment screws M6×0.25, 3 pcs.). The mounting clamp with a…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Tilt Platform |
| Mount Material and Coating | Black Anodised Aluminum |
| Rotation Range, coarse | 10 deg 0 min 0 sec |
| Platform Size, mm | Ø48 |
| Mounting Thread | M4 |
| Width | 56 mm |
| Length | 71 mm |
| Height | 88 mm |
| Rotation Resolution | 0 deg 0 min 9 sec |
