Manual Positioners
-

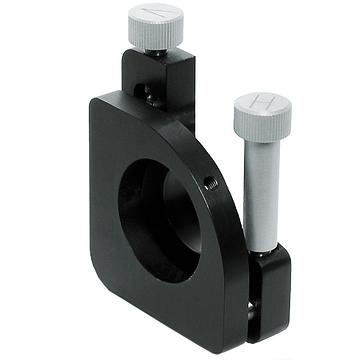

Kinematic Positioning Mount 840-0193
• for Ø25.4 mm (1 inch) ring holders • clear aperture of 23 mm • kinematic design • dimensions most compact among 1 inch optics mounts • tilt/tip range ±2° • sensitivity 3 arcse...
From $112
-

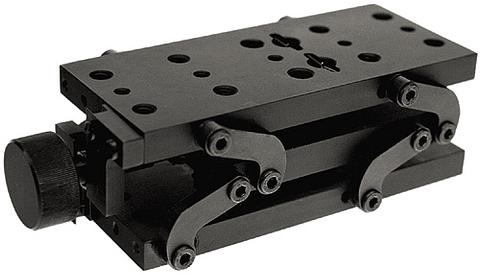

Adjustable Height Platform 850-0200
Adjustable Height Platform 850-0200 of original construction is a stable vertical translation stage of original design with 25 mm travel range and maximum load capacity of 3 kg....
From $329
-

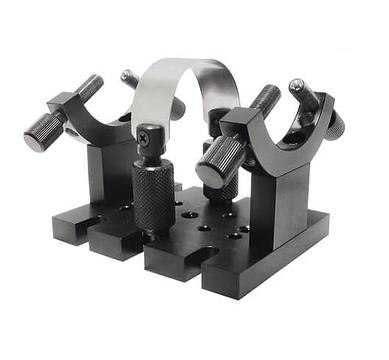

Adjustable Laser/Laser Head Holder 850-0095
• Stable design • Precise adjustment about linear and angular coordinates • Wide adjustment angle • High load capacity • Convenient mounting Adjustable Laser/Laser Head Holder ...
From $131
-

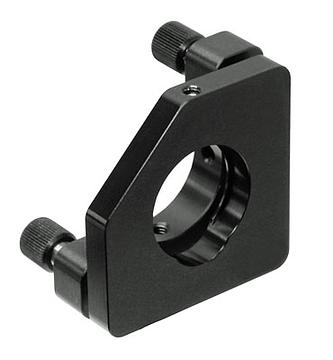

Beamsplitter/Mirror Mounts 840-3120-B
• For Ø25.4 mm (1 inch) optics • Reset-flange inside the central aperture stops the optics • Nylon-tipped fixing screw secures the optics • M6x0.25 adjustment screws provide pre...
From $57
-

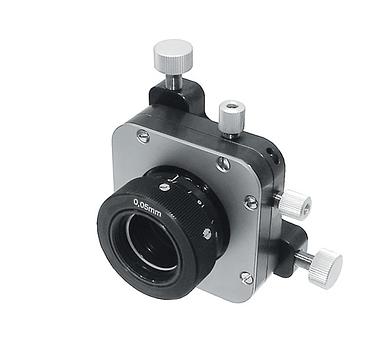

Five-Axes Optical Mount 840-0210
The Five-Axes Mounts are considered as a combination of: • side drive kinematic optical mount (840-0192/ 840-0193), • Y-Z translation optical mount (990-0050), • optical zo...
From $263
-

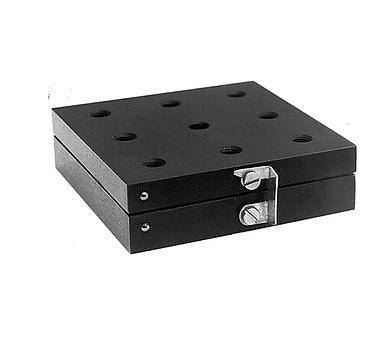

Kinematic Bases 850-0020, 850-0022
• Kinematic repositioning with repeatability of several arcsec • Exclusive mounting disk for extra freedom in positioning (850-0020 only) • Hooks of spring steel for reliable lo...
From $94
-
Kinematic Double Optical Mount of Side Drive 840-0192
• For Ø25.4 mm (1 inch) optics • Clear aperture 23 mm • Kinematic design • Dimensions most compact among 1 inch optics mounts • Tilt/tip range ±2° • Sensitivity 3 arcsec • Both ...
From $115
-

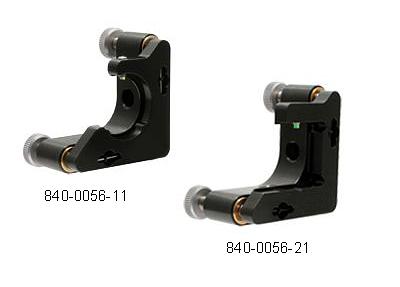

Kinematic Mirror / Beamsplitter Mounts 840-0056
Kinematic Mirror / Beamsplitter Mounts 840-0056 are used for precise angular and linear alignment of optical elements. We provide two types of kinematic mirror/beamsplitter moun...
From $97
-

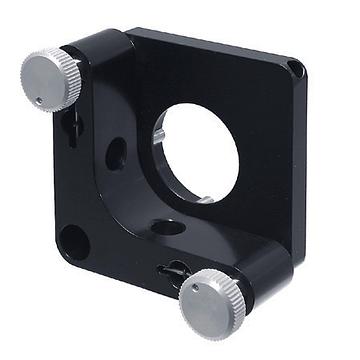

Kinematic Mirror/Beamsplitter Mounts (Al) 840-0032, 840-0033
Kinematic Mirror/Beamsplitter Mounts 840-0032 and 840-0033 are designed for precise alignment of various optical elements to desired angular and linear orientation. • Precise...
From $76
-

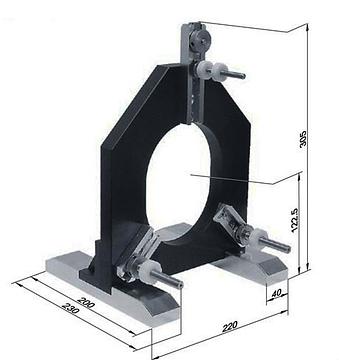

Large Optical Mount 840-0006
Large Optical Mount 840-0006 is designed for large and heavy transmission optics. • Optics diameter - 115-200 mm • Optics thickness up to 52 mm • Load capacity - 6 kg
From $920
-

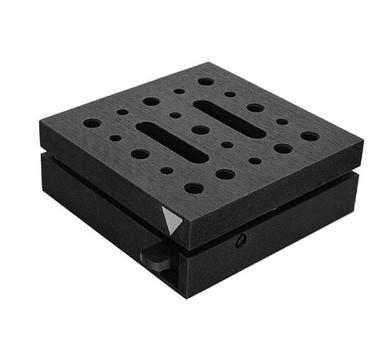

Magnetic Kinematic Base 850-0030
Magnetic Kinematic Base 850-0030 enables to lift the units mounted on the platform as a group. The platform is replaced with a repeatability of 50 µm. The platform has patterns...
From $101
-

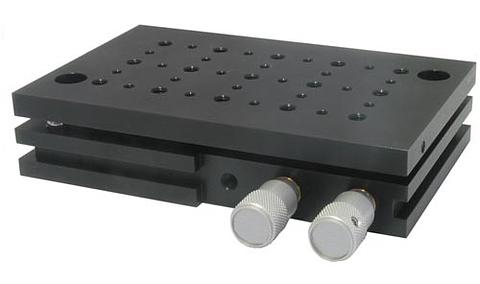

Multi-Axis Tilt Platform 850-0010
Multi-Axis Tilt Platform 850-0010 provides angular adjustment about two axes – tilting and in-plane rotation. The mounting platform is rotated around kinematic pivot point by t...
From $347
-
Single Axis Tilt Stage 850-0040
Single-Axis Tilt-Stage 850-0040 provides tilt range of 6° with 6 μrad sensitivity. Pivot is done on two hardened steel balls. The base has M6 tapped holes on four sides, to fas...
From $83
-

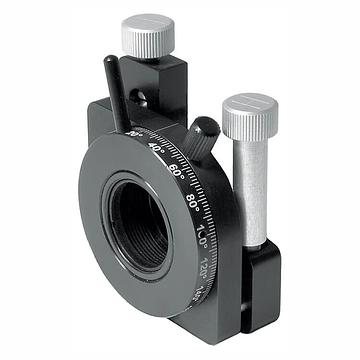

Positioning Mount 840-0199 for Nonlinear Crystal Housing
• Accepts Ø 25.4 mm and up to 10.5 mm thickness ring housings • Kinematic design • Wedge and ball drive mechanism • Tilt/tip range: ±2° • Sensitivity: 3 arcsec • Fine adjustment...
From $211
