Kinematic Mirror/Beamsplitter Mounts (Al) 840-0032, 840-0033
Kinematic Mirror/Beamsplitter Mounts 840-0032 and 840-0033 are designed for precise alignment of various optical elements to desired angular and linear orientation. • Precise and handy adjustment • Stable vertical… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mount Material and Coating | Angular Tilt Range | Tilt Sensitivity | Travel Range | Mount Clear Aperture | Mounted Optics Diameter | Number of Axes | |
|---|---|---|---|---|---|---|---|---|---|
| 840-0032-80 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 5 mm | 24 mm | 25.4 mm - 25.4 mm | 2 |
Out of stock
$87
|
| 840-0032-90 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 5 mm | 24 mm | 25.4 mm - 25.4 mm | 2 |
Out of stock
$78
|
| 840-0033-80 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 5 mm | 24 mm | 25.4 mm - 25.4 mm | 2 |
Out of stock
$100
|
| 840-0033-90 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 5 mm | 24 mm | 25.4 mm - 25.4 mm | 2 |
Out of stock
$96
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Mount Material and Coating | Black Anodised Aluminum |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Travel Range | 5 mm |
| Mount Clear Aperture | 24 mm |
| Travel Sensitivity | 1 µm |
| Weight | 0.09 kg |
| Mounting Thread | M6 |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Height | 54 mm |
| Number of Axes | 2 |
Description

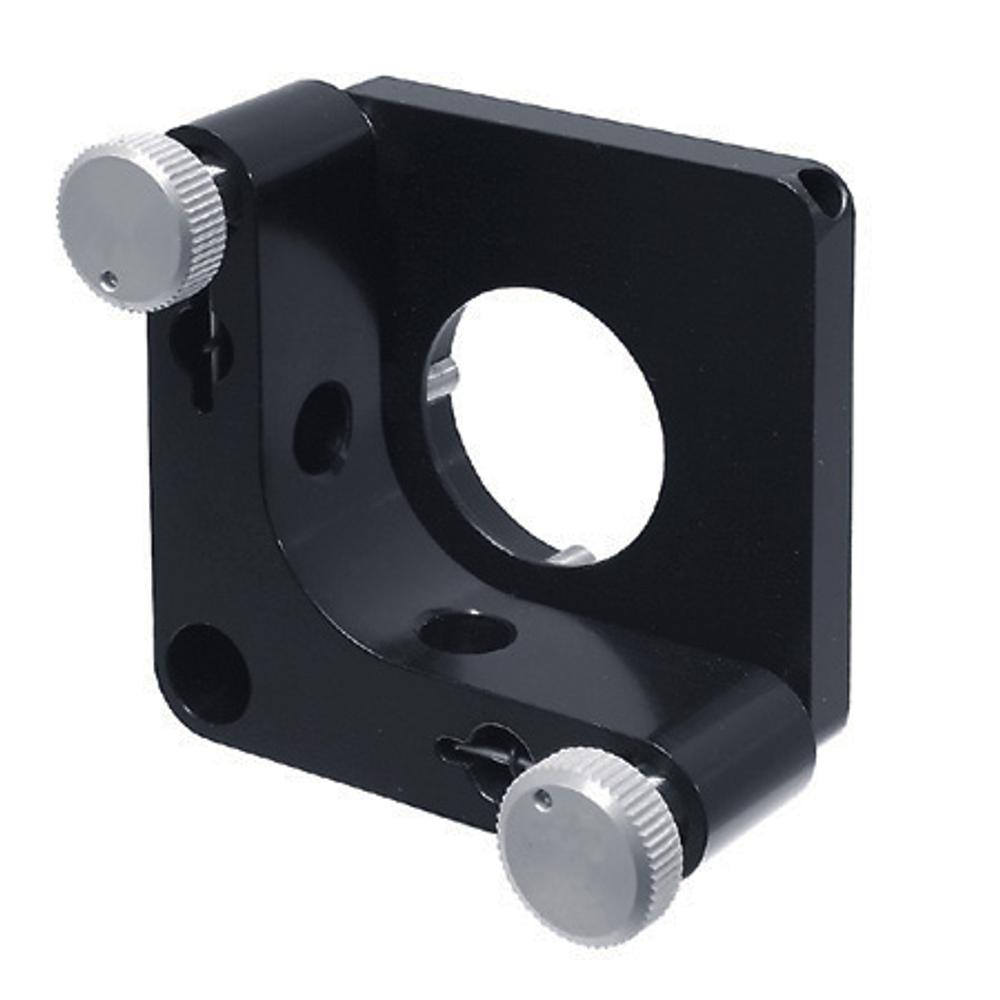

Kinematic Mirror/Beamsplitter Mounts 840-0032 and 840-0033 are designed for precise alignment of various optical elements to desired angular and linear orientation.
- Precise and handy adjustment
- Stable vertical mounting
- Made of black anodized aluminium
The base of the mount has holes Ø 8.7 mm for driving screws of your choice. As a standard, we fit Ultra-Fine Screws 870-0080 or 870-0090. Each screw has a hardened steel ball tip. The mounts also have an 1" mounting hole with Ø 24 mm clear aperture.
840-0032, 840-0033 may be mounted on one side or another, e.g. to swap left/right hand side of access to the drive relative to the beam. It mounts to an M6 screw or directly to mounting posts on their M6 tips. Put a M4 screw through the combined Ø7/M6 hole to fasten the mount to units with M4 holes.
