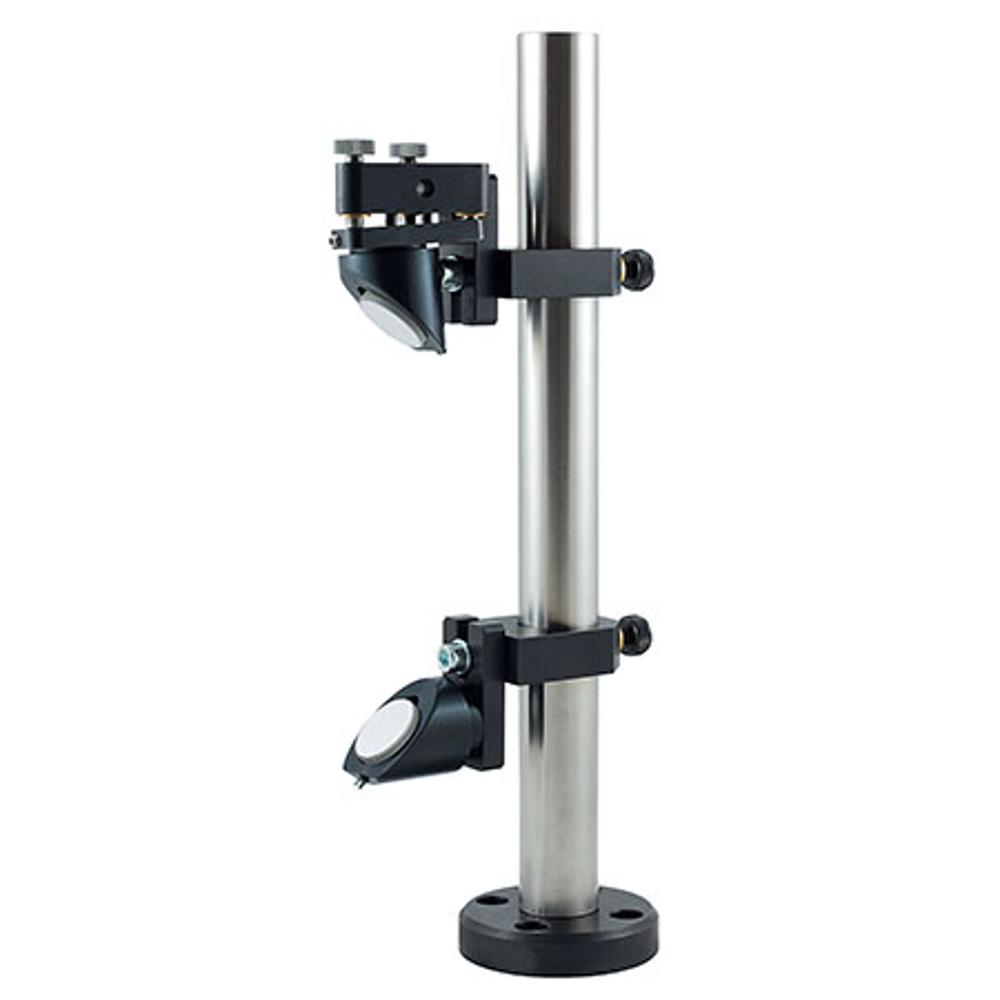

Periscope on Large Rods 810-0067
Eksma Optics offers periscope assemblies on large rods that enable to easily adjust the height and change the direction of a laser beam. The periscope assembly consists of two adapters for mirrors at 45° 840-0115 where… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Description · Weight · Height (H) · Distance between mirrors (Lmin...Lmax) | |
|---|---|---|
| 810-5066 | Periscope on Large Rod with oxidized steel base and two Kinematic Mirror Mounts·2.34 kg·315 mm·35...250 mm |
Out of stock
$330
|
| 810-5067 | Periscope on Large Rod with oxidized steel base·2.25 kg·315 mm·35...250 mm |
Out of stock
$252
|
| 810-5166 | Periscope on Large Rod with stainless steel base and two Kinematic Mirror Mounts·315 mm·35...250 mm |
Out of stock
$339
|
| 810-5167 | Periscope on Large Rod with stainless steel base·315 mm·35...250 mm |
Out of stock
$261
|
| 810-5266 | Periscope on Large Rod with black oxidized steel base and Kinematic Mirror Mounts·2.82 kg·415 mm·35...350 mm |
Out of stock
$366
|
| 810-5267 | Periscope on Large Rod with black oxidized steel base·2.73 kg·415 mm·35...350 mm |
Out of stock
$288
|
| 810-5366 | Periscope on Large Rod with stainless steel base and two Kinematic Mirror Mounts·415 mm·35...350 mm |
Out of stock
$375
|
| 810-5367 | Periscope on Large Rod with stainless steel base·2.73 kg·415 mm·35...350 mm |
Out of stock
$297
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Classification
| Type | brackets|rails |
Description
Eksma Optics offers periscope assemblies on large rods that enable to easily adjust the height and change the direction of a laser beam.
The periscope assembly consists of two adapters for mirrors at 45° 840-0115 where mounted optics face each other. Mounting Clamps 810-0062A allow to adjust the distance between mirrors for a position needed.
The assemblies are available with one or two kinematics mirror mounts that has adjustment range of 9° and sensitivity of 3 arcsec. Other kinematic mirrors for periscope (for example with 3 adjustment screws 840-0033) are available on request.
For periscope assemblies of height lower than 300 mm, please see Periscope on Silent Rods 810-0065.
