Periscope on Silent Rods 810-0065
• Precise azimuth control • Precise angles control • 1" optics mounts • Stable and adjustable These research and industrial grade periscope assemblies are a useful tools for changing beam path direction and elevation.… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Distance between mirrors · Height | |
|---|---|---|
| 810-2065-03 | 25 min…75 max·200 mm |
Out of stock
$345
|
| 810-2065-04 | 25 min…72 max·200 mm |
Out of stock
$386
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Optics Diameter | Ø1" (Ø25.4 mm) |
| Minimum Thickness of Optics | 4.5 mm |
| Angular Adjustment Range | ±4.5° |
| Rotation | 360° |
Classification
| Type | brackets|rails |
Description
- Precise azimuth control
- Precise angles control
- 1" optics mounts
- Stable and adjustable
These research and industrial grade periscope assemblies are a useful tools for changing beam path direction and elevation. Periscope uses the kinematic mount to create the most stable and flexible system available.

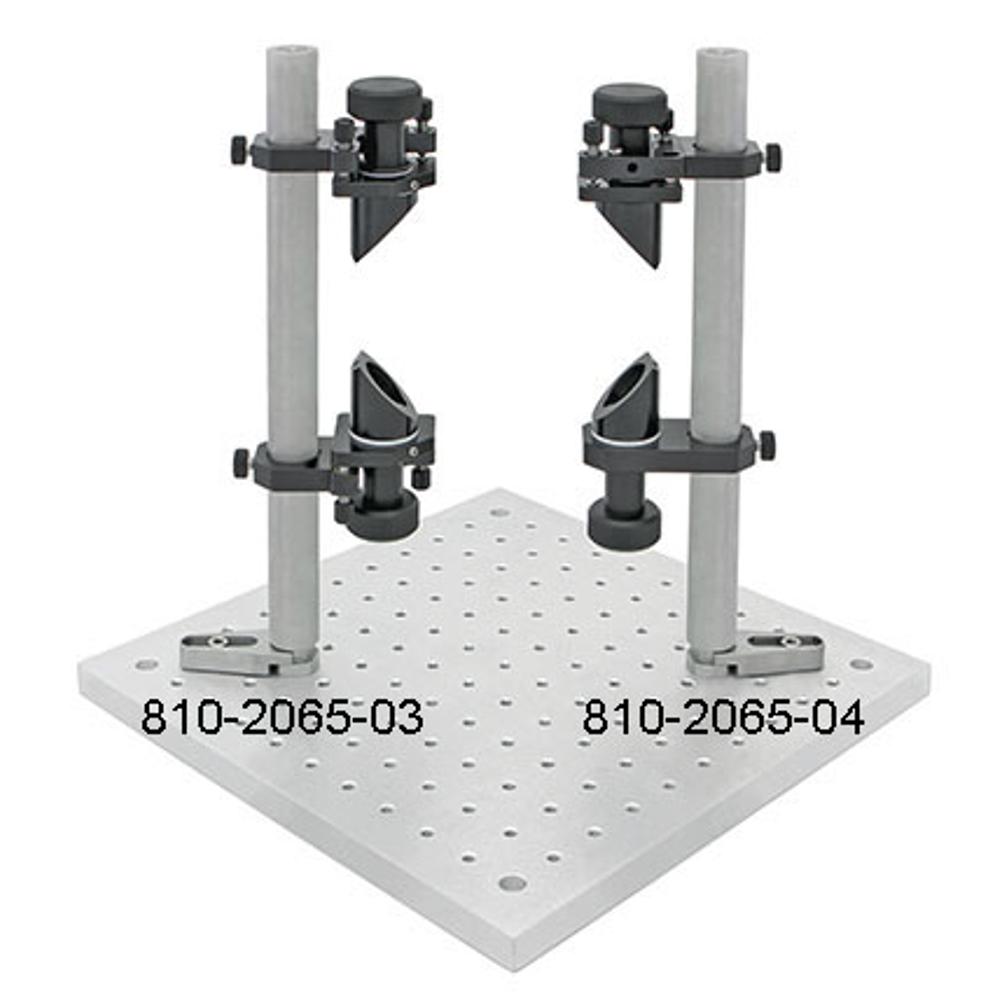

810-2065-03 kit includes: silent rod, 2 post clamps, 2 mirror mounts, 2 rotation locking screws, 2 adapters for mirror at 45 deg and table clamp.
810-2065-04 kit includes: silent rod, 2 post clamps, mirror mount, 2 rotation locking screws, 2 adapters for mirror at 45 deg and table clamp.
While 810-2065-03 allows the same functionality on top and bottom optic holders, the 810-2065-04 comes with adjustable top while bottom is rigid and offers rotation only.
Optics rest against two contact lines formed at the interface and are firmly held by a plastic securing srew. Adapter easily accomodates any 1'' optics.
