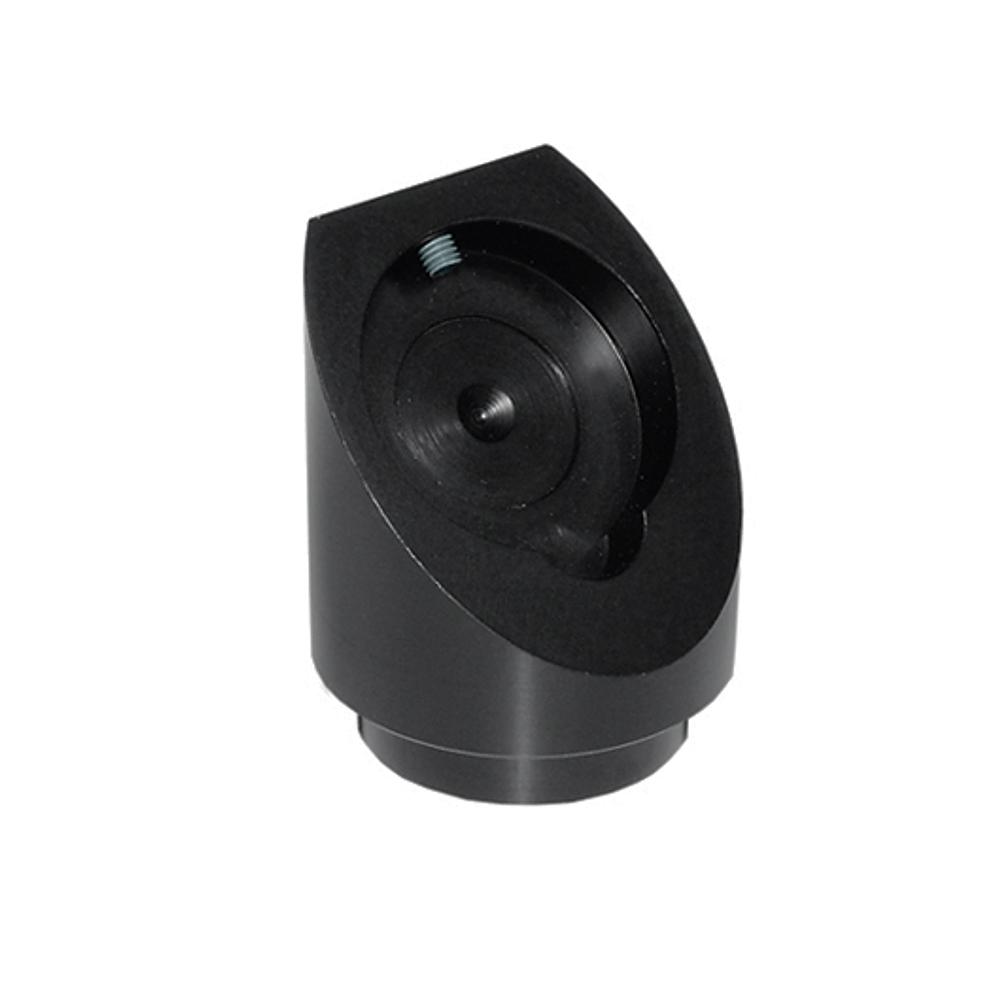

Adapter for Mirror at 45 deg 840-0115

• Suitable for dichroic mirrors and beamsplitters operating at AOI 45 deg With the help of this Adapter optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface.… Read more →

From $36 Configure & order →

Order

SKU	Product Type	Mounted Optics Diameter	Mount Material and Coating	Mounting Thread
840-0115	Optics Adapter	22.4 mm - 25.5 mm	Black Anodised Aluminum	M6	Out of stock $36

Specifications

Product Type	Optics Adapter
Mounted Optics Diameter	22.4 mm - 25.5 mm
Mount Material and Coating	Black Anodised Aluminum
Mounting Thread	M6
Width	33 mm
Height	41.2 mm

Description

Suitable for dichroic mirrors and beamsplitters operating at AOI 45 deg

With the help of this Adapter optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface. Adapter easily accommodates any optical mount designed for 1'' optics or can be attached to any mount using baseplate.

For fine adjustment adapter can be mounted into Kinematic Mirror Mount 840-0020. Such combination provides 6° range of orthogonal adjustments with 8 arc-seconds resolution.

Optics with diameter 22.4-25.5 mm and thickness 5-8 mm can be secured with a plastic screw. Optics of other thickness can be cemented into adapter.

Finish: black anodized aliuminium.
