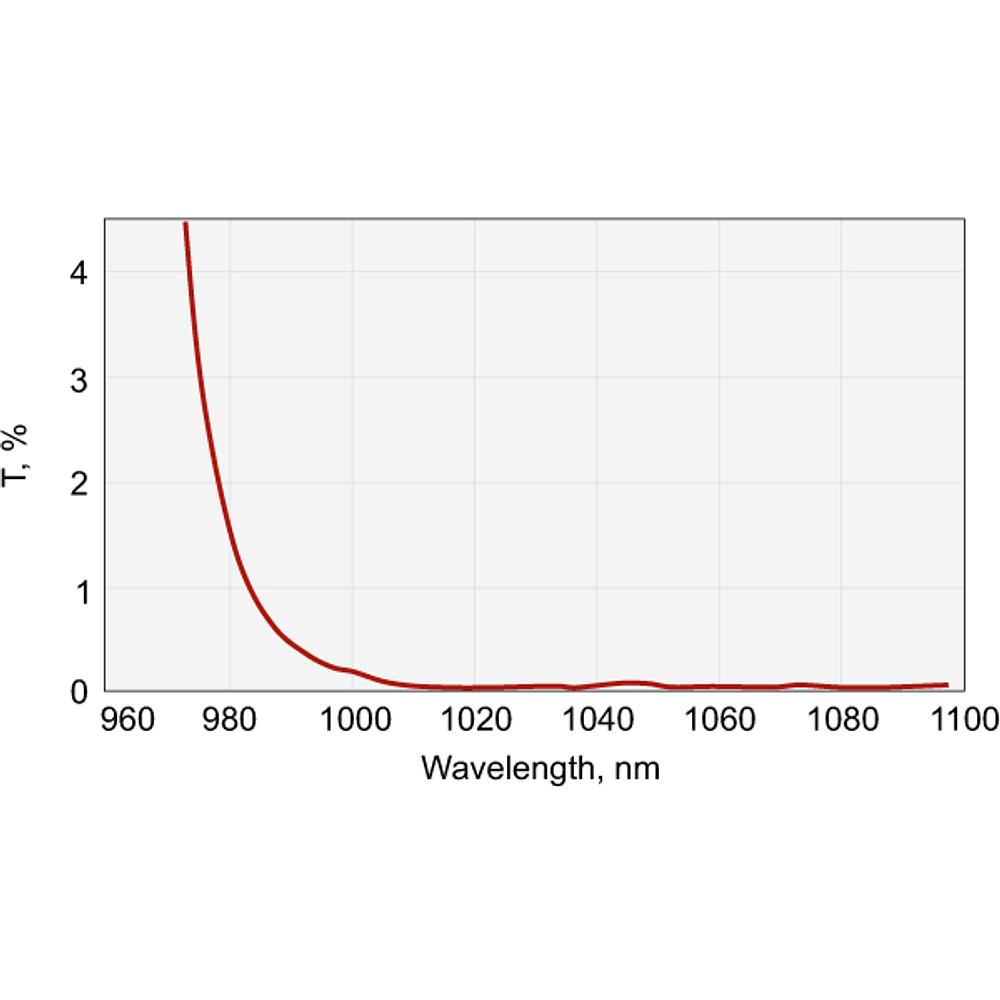

Nd:YAG Laser Line Mirrors
Two kinds of substrate material are available. Laser line mirrors are designed for 45° or 0° angle of incidence. Featuring high polishing quality, low scattering and high damage threshold enables dielectric reflectors… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Surface 1, Wavelength 1
| SKU | Shape Type | Diameter | Material | Surface Shape | Coating | Wavelength | Reflectivity, % | AOI (angle of incidence) | Polarization | |
|---|---|---|---|---|---|---|---|---|---|---|
| 037-0530 | Round | 76.2 mm | BK7 | Plano | HR | 527 nm - 532 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$245
|
| 041-0530-i0 | Round | 12.7 mm | UVFS | Plano | HR | 527 nm - 532 nm | 99.8 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$82
|
| 045-0350T12HHR | Round | 50.8 mm | UVFS | Plano | HR | 351 nm - 361 nm | 99.9 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
7 in stock
Ships in: 2–5 calendar days
$608
|
| 045-1060T12HHR-i0 | Round | 50.8 mm | UVFS | Plano | HR | 1047 nm - 1064 nm | 99.95 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$492
|
| 047-0530 | Round | 76.2 mm | UVFS | Plano | HR | 527 nm - 532 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
2 in stock
Ships in: 2–5 calendar days
$456
|
| 047-0530-i0 | Round | 76.2 mm | UVFS | Plano | HR | 527 nm - 532 nm | 99.8 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$456
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Diameter Lower Tolerance | -0.12 mm |
| Center Thickness Upper Tolerance | 0.25 mm |
| Center Thickness Lower Tolerance | -0.25 mm |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 3 min 0 sec |
Surface 1
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Clear Aperture, % | 85 % - 100 % |
Surface 1, Wavelength 1
| Coating | HR |
| Polarization | avg |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
Description
Two kinds of substrate material are available. Laser line mirrors are designed for 45° or 0° angle of incidence. Featuring high polishing quality, low scattering and high damage threshold enables dielectric reflectors to have perfect beam steering for Nd:YAG lasers.
