Kinematic Mirror / Beamsplitter Mounts 840-0056
Kinematic Mirror / Beamsplitter Mounts 840-0056 are used for precise angular and linear alignment of optical elements. We provide two types of kinematic mirror/beamsplitter mounts: for round optical elements… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mount Material and Coating | Angular Tilt Range | Tilt Sensitivity | Travel Range | Mount Clear Aperture | Mounted Optics Diameter | Number of Axes | |
|---|---|---|---|---|---|---|---|---|---|
| 840-0056-11 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 4 mm | — | 25.4 mm - 25.4 mm | 2 |
Out of stock
$107
|
| 840-0056-12 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 4 mm | — | 50.8 mm - 50.8 mm | 2 |
1 in stock
Ships in: 2–5 calendar days
$161
|
| 840-0056-13 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 4 mm | — | 76.2 mm - 76.2 mm | 2 |
2 in stock
Ships in: 2–5 calendar days
$220
|
| 840-0056-21 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 4 mm | 26 mm | 25.4 mm - 25.4 mm | 2 |
Out of stock
$119
|
| 840-0056-22 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 4 mm | 37.4 mm | 50.8 mm - 50.8 mm | 2 |
Out of stock
$179
|
| 840-0056-23 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | 9 Deg | 0 deg 0 min 3 sec | 4 mm | 53.6 mm | 76.2 mm - 76.2 mm | 2 |
Out of stock
$251
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Optical Positioner, 3-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Travel Range | 4 mm |
| Travel Sensitivity | 1 µm |
| Mounting Thread | M6 |
| Number of Axes | 2 |
Description

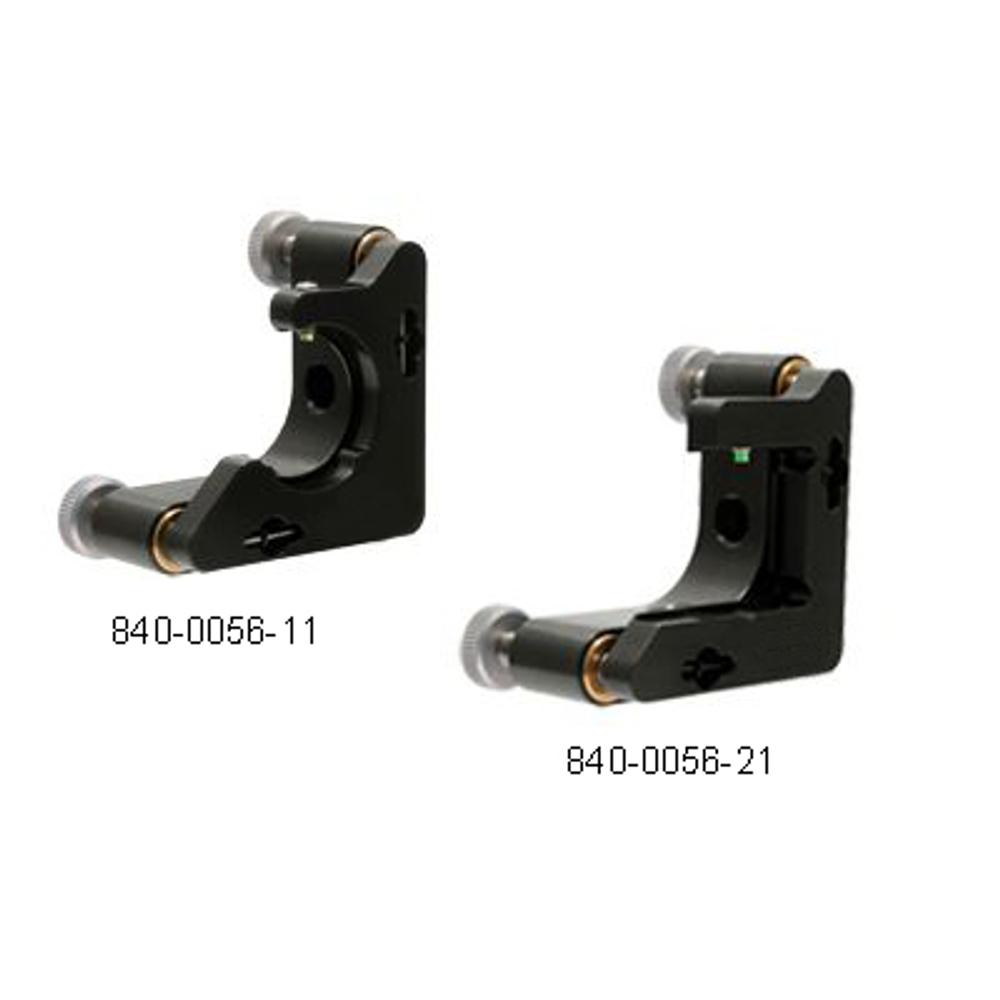

Kinematic Mirror / Beamsplitter Mounts 840-0056 are used for precise angular and linear alignment of optical elements. We provide two types of kinematic mirror/beamsplitter mounts: for round optical elements (840-0056-11; 840-0056-12; 840-0056-13) and for square optical elements (840-0056-21; 840-0056-22; 840-0056-23).
- 1", 2", 3" optics mounts
- Tilt range 9° (about two axes)
- Travel range 4 mm
- Sensitivity 3 arcsec or 1µm
- Mounting on either of 2 sides
- Made of black anodized aluminium
- Motorized version 940-0060
840-0056 has a resting flange to stop the optics. One fixing screw (two in “square” mounts) secures the optics against hard rests, which make 2 contact points. To prevent damage to the optics, the tip of the fixing screw is made of plastic.
Square mounts 840-0056-20 additionally have 4 fixing screws for thin optics. They have conic tips to work as wedges to clutch a thin plate of optics to the resting flange. For thick optics square mounts have 2 screws rather than one.
A platform is preloaded by two strong coil springs, ensuring tight kinematic fit. A thick base adds to stability. This allowed us to eliminate part of the mount, keeping clear one edge of the optics.
As standard, mounts come with screws 870-0080. You may order the mounts with 2 or 3 adjustment screws. The prices are given of kinematic mirror/beamsplitter mounts with 3 driving screws.
