Dual Band Laser Mirrors

Dual Band Laser Mirrors

• Highly reflective mirrors (99.5% reflectivity) • Designed to work at 45° or 0° angle of incidence • Made from BK7 glass or UV grade fused silica Laser Line Mirrors are dielectric reflectors with optimised… Read more →

From $113 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Listed in

Configure & order — pick a catalog variant or configure your own

Material Any
or
D Any
Catalog band: 12.7–76.2 mm
Manufacturable: 12.7–76.2 mm
12.7 mm 76.2 mm
or mm
ET Any
Catalog band: 3.0–12.7 mm
Manufacturable: 3.0–12.7 mm
3.0 mm 12.7 mm
or mm
R, % (s+p)/2 Any
Catalog band: 99.0–99.9 %
Manufacturable: 99.0–99.9 %
99.0 % 99.9 %
or %
AOI Any
Catalog band: 0.0–45.0 °
Manufacturable: 0.0–45.0 °
0.0 ° 45.0 °
or °
Wavelength Any
or
Application Any
or
120 catalog variants — refine the spec to narrow it down.
SKU Application · Group · Wavelength · Size · R, % (s+p)/2 · D · ET · Diameter · Thickness · Material · AOI
051-4080 BK7; ø12.7 x 3 mm·390-410+780-820 nm·ø12.7 x 3 mm·99.5%·BK7·45°
15 in stock Ships in: 2–5 calendar days
$113
051-4080-i0 Ti:Sa 2H+1H·BK7; ø12.7 x 3 mm·390-410+780-820 nm·99.5%·12.7 mm·3 mm·BK7·0°
Out of stock Ships in: 62–65 calendar days
$113
051-4080T6 BK7; ø12.7 x 6 mm·390-410+780-820 nm·ø12.7 x 6 mm·99.5%·BK7·45°
16 in stock Ships in: 2–5 calendar days
$113
051-4080T6-i0 Ti:Sa 2H+1H·BK7; ø12.7 x 6 mm·390-410+780-820 nm·99.5%·12.7 mm·6 mm·BK7·0°
Out of stock Ships in: 62–65 calendar days
$113
051-5103 Yb:KGW/KYW 2H+1H·BK7; ø12.7 x 3 mm·500-530+1000-1060 nm·99.5%·12.7 mm·3 mm·BK7·45°
9 in stock Ships in: 2–5 calendar days
$113
051-5103-i0 BK7; ø12.7 x 3 mm·500-530+1000-1060 nm·ø12.7 x 3 mm·99.7%·BK7·0°
Out of stock Ships in: 62–65 calendar days
$113
051-5103T6 Yb:KGW/KYW 2H+1H·BK7; ø12.7 x 6 mm·500-530+1000-1060 nm·99.5%·12.7 mm·6 mm·BK7·45°
Out of stock Ships in: 62–65 calendar days
$113
051-5103T6-i0 Yb:KGW/KYW 2H+1H·BK7; ø12.7 x 6 mm·500-530+1000-1060 nm·99.5%·12.7 mm·6 mm·BK7·0°
1 in stock Ships in: 2–5 calendar days
$113

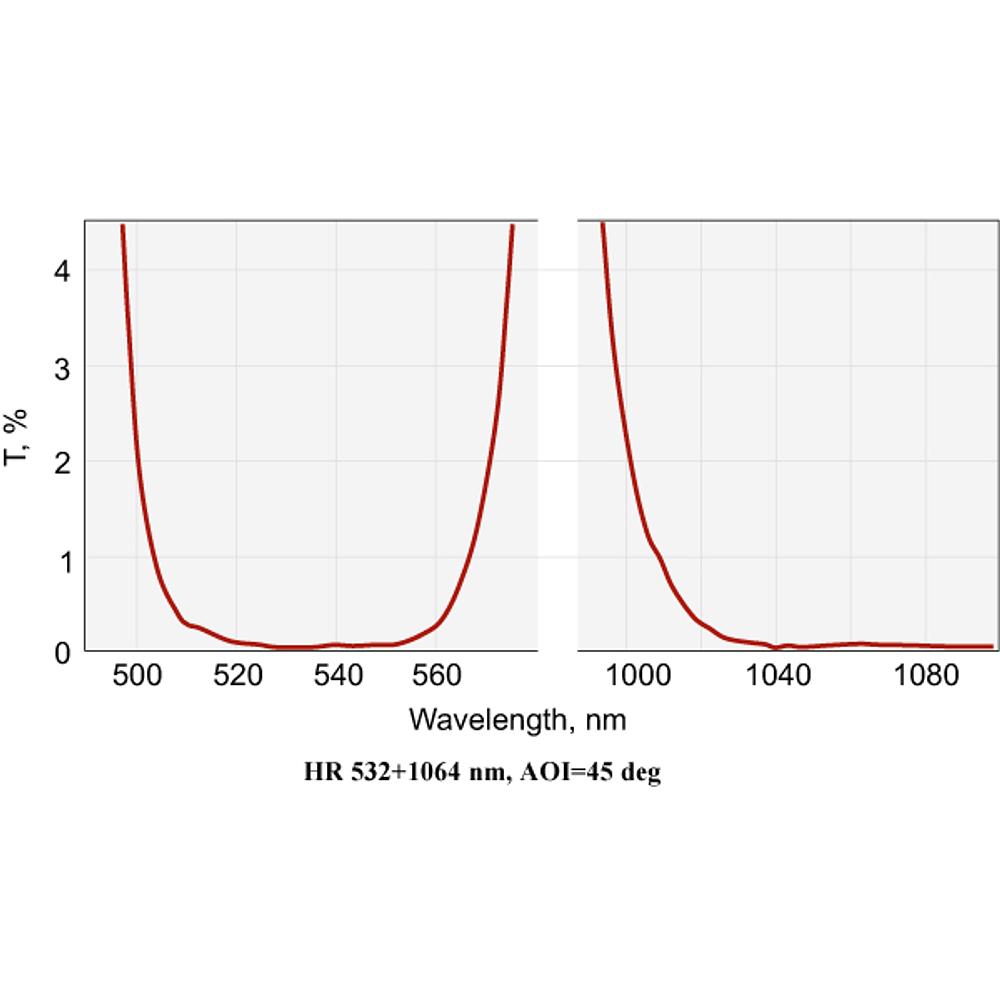

051-5306 Nd:YAG 2H+1H·BK7; ø12.7 x 3 mm·532+1064 nm·99.5%·12.7 mm·3 mm·BK7·45°
12 in stock Ships in: 2–5 calendar days
$113
051-5306-i0 Nd:YAG 2H+1H·BK7; ø12.7 x 3 mm·532+1064 nm·99.5%·12.7 mm·3 mm·BK7·0°
2 in stock Ships in: 2–5 calendar days
$113
051-5306T6 Nd:YAG 2H+1H·BK7; ø12.7 x 6 mm·532+1064 nm·99.5%·12.7 mm·6 mm·BK7·45°
Out of stock Ships in: 62–65 calendar days
$113
051-5306T6-i0 Nd:YAG 2H+1H·BK7; ø12.7 x 6 mm·532+1064 nm·99.5%·12.7 mm·6 mm·BK7·0°
2 in stock Ships in: 2–5 calendar days
$113
051-6306 HeNe:Nd:YAG 1H·BK7; ø12.7 x 3 mm·633+1064 nm·99.5%·12.7 mm·3 mm·BK7·45°
65 in stock Ships in: 2–5 calendar days
$113
051-6306-i0 HeNe:Nd:YAG 1H·633+1064 nm·99.5%·12.7 mm·3 mm·BK7·0°
Out of stock Ships in: 58–61 calendar days
$113
051-6306T6 YAG 1H+HeNe·633+1064 nm·99.5%·ø12.7 mm·6 mm·BK7·45°
Out of stock Ships in: 58–61 calendar days
$113
051-6306T6-i0 YAG 1H+HeNe·633+1064 nm·99.7%·ø12.7 mm·6 mm·BK7·0°
Out of stock Ships in: 58–61 calendar days
$113
052-4080 BK7; ø25.4 x 6 mm·390-410+780-820 nm·ø25.4 x 6 mm·99.5%·BK7·45°
44 in stock Ships in: 2–5 calendar days
$136
052-4080-i0 BK7; ø25.4 x 6 mm·390-410+780-820 nm·ø25.4 x 6 mm·99.7%·BK7·0°
3 in stock Ships in: 2–5 calendar days
$136
052-5103 Yb:KGW/KYW 2H+1H·BK7; ø25.4 x 6 mm·500-530+1000-1060 nm·99.5%·25.4 mm·6 mm·BK7·45°
21 in stock Ships in: 2–5 calendar days
$136
052-5103-i0 Yb:KGW/KYW 2H+1H·BK7; ø25.4 x 6 mm·500-530+1000-1060 nm·99.5%·25.4 mm·6 mm·BK7·0°
24 in stock Ships in: 2–5 calendar days
$136
052-5306 Nd:YAG 2H+1H·BK7; ø25.4 x 6 mm·532+1064 nm·99.5%·25.4 mm·6 mm·BK7·45°
23 in stock Ships in: 2–5 calendar days
$136
052-5306-i0 Nd:YAG 2H+1H·BK7; ø25.4 x 6 mm·532+1064 nm·99.5%·25.4 mm·6 mm·BK7·0°
Out of stock Ships in: 62–65 calendar days
$136
052-6306 HeNe:Nd:YAG 1H·BK7; ø25.4 x 6 mm·633+1064 nm·99.5%·25.4 mm·6 mm·BK7·45°
23 in stock Ships in: 2–5 calendar days
$136
052-6306-i0 HeNe:Nd:YAG 1H·BK7; ø25.4 x 6 mm·633+1064 nm·99.5%·25.4 mm·6 mm·BK7·0°
Out of stock Ships in: 62–65 calendar days
$136
055-4080 Ti:Sa 2H+1H·BK7; ø50.8 x 8 mm·390-410+780-820 nm·99.5%·50.8 mm·8 mm·BK7·45°
3 in stock Ships in: 2–5 calendar days
$200
055-4080-i0 Ti:Sa 2H+1H·BK7; ø50.8 x 8 mm·390-410+780-820 nm·99.5%·50.8 mm·8 mm·BK7·0°
Out of stock Ships in: 62–65 calendar days
$200
055-5103 Yb:KGW/KYW 2H+1H·BK7; ø50.8 x 8 mm·500-530+1000-1060 nm·99.5%·50.8 mm·8 mm·BK7·45°
5 in stock Ships in: 2–5 calendar days
$200
055-5103-i0 Yb:KGW/KYW 2H+1H·BK7; ø50.8 x 8 mm·500-530+1000-1060 nm·99.5%·50.8 mm·8 mm·BK7·0°
Out of stock Ships in: 62–65 calendar days
$200
055-5306 Nd:YAG 2H+1H·BK7; ø50.8 x 8 mm·532+1064 nm·99.5%·50.8 mm·8 mm·BK7·45°
6 in stock Ships in: 2–5 calendar days
$200
055-5306-i0 Nd:YAG 2H+1H·BK7; ø50.8 x 8 mm·532+1064 nm·99.5%·50.8 mm·8 mm·BK7·0°
4 in stock Ships in: 2–5 calendar days
$200
055-6306 HeNe:Nd:YAG 1H·BK7; ø50.8 x 8 mm·633+1064 nm·99.5%·50.8 mm·8 mm·BK7·45°
Out of stock Ships in: 62–65 calendar days
$200
055-6306-i0 HeNe:Nd:YAG 1H·633+1064 nm·99.5%·50.8 mm·8 mm·BK7·0°
Out of stock Ships in: 58–61 calendar days
$200
057-4080 390-410+780-820 nm·ø76.2 x 12.7 mm·99.5%·BK7·45°
Out of stock Ships in: 58–61 calendar days
$378
057-4080-i0 Ti:Sa 2H+1H·390-410+780-820 nm·99.5%·76.2 mm·12.7 mm·BK7·0°
Out of stock Ships in: 58–61 calendar days
$378
057-5103 BK7; ø76.2 x 12.7 mm·500-530+1000-1060 nm·ø76.2 x 12.7 mm·99.5%·BK7·45°
1 in stock Ships in: 2–5 calendar days
$378
057-5103-i0 Yb:KGW/KYW 2H+1H·500-530+1000-1060 nm·99.5%·76.2 mm·12.7 mm·BK7·0°
Out of stock Ships in: 58–61 calendar days
$378
057-5306 Nd:YAG 2H+1H·BK7; ø76.2 x 12.7 mm·532+1064 nm·99.5%·76.2 mm·12.7 mm·BK7·45°
Out of stock Ships in: 62–65 calendar days
$378
057-5306-i0 Nd:YAG 2H+1H·BK7; ø76.2 x 12.7 mm·532+1064 nm·99.5%·76.2 mm·12.7 mm·BK7·0°
Out of stock Ships in: 62–65 calendar days
$378
057-6306 YAG 1H+HeNe·633+1064 nm·99.5%·ø76.2 mm·12.7 mm·BK7·45°
Out of stock Ships in: 58–61 calendar days
$378
057-6306-i0 HeNe:Nd:YAG 1H·633+1064 nm·99.5%·76.2 mm·12.7 mm·BK7·0°
Out of stock Ships in: 58–61 calendar days
$378
061-2635 Nd:YAG 4H+3H·266+355 nm·99.0%·12.7 mm·3 mm·UVFS·45°
Out of stock Ships in: 58–61 calendar days
$166
061-2635-i0 Nd:YAG 4H+3H·266+355 nm·99.0%·12.7 mm·3 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$166
061-2635T6 Nd:YAG 4H+3H·UVFS; ø12.7 x 6 mm·266+355 nm·99.0%·12.7 mm·6 mm·UVFS·45°
2 in stock Ships in: 2–5 calendar days
$166
061-2635T6-i0 Nd:YAG 4H+3H·266+355 nm·99.0%·12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$166
061-2653 Nd:YAG 4H+2H·266+532 nm·99.0%·12.7 mm·3 mm·UVFS·45°
Out of stock Ships in: 58–61 calendar days
$166
061-2653-i0 Nd:YAG 4H+2H·266+532 nm·99.0%·12.7 mm·3 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$166
061-2653T6 Nd:YAG 4H+2H·UVFS; ø12.7 x 6 mm·266+532 nm·99.0%·12.7 mm·6 mm·UVFS·45°
11 in stock Ships in: 2–5 calendar days
$166
061-2653T6-i0 Nd:YAG 4H+2H·266+532 nm·99.0%·12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$166
061-3506 Nd:YAG 3H+1H·UVFS; ø12.7 x 3 mm·355+1064 nm·99.5%·12.7 mm·3 mm·UVFS·45°
17 in stock Ships in: 2–5 calendar days
$153
061-3506-i0 Nd:YAG 3H+1H·355+1064 nm·99.5%·12.7 mm·3 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$153
061-3506T6 Nd:YAG 3H+1H·355+1064 nm·99.5%·12.7 mm·6 mm·UVFS·45°
Out of stock Ships in: 58–61 calendar days
$153
061-3506T6-i0 Nd:YAG 3H+1H·355+1064 nm·99.5%·12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$153
061-3553 Nd:YAG 3H+2H·UVFS; ø12.7 x 3 mm·355+532 nm·99.5%·12.7 mm·3 mm·UVFS·45°
6 in stock Ships in: 2–5 calendar days
$153
061-3553-i0 Nd:YAG 3H+2H·UVFS; ø12.7 x 3 mm·355+532 nm·99.5%·12.7 mm·3 mm·UVFS·0°
1 in stock Ships in: 2–5 calendar days
$153
061-3553T6 Nd:YAG 3H+2H·UVFS; ø12.7 x 6 mm·355+532 nm·99.5%·12.7 mm·6 mm·UVFS·45°
4 in stock Ships in: 2–5 calendar days
$153
061-3553T6-i0 YAG 3H+2H·355+532 nm·99.7%·ø12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$153
061-4080 Ti:Sa 2H+1H·UVFS; ø12.7 x 3 mm·390-410+780-820 nm·99.5%·12.7 mm·3 mm·UVFS·45°
13 in stock Ships in: 2–5 calendar days
$146
061-4080-i0 UVFS; ø12.7 x 3 mm·390-410+780-820 nm·ø12.7 x 3 mm·99.7%·UVFS·0°
2 in stock Ships in: 2–5 calendar days
$146
061-4080T6 Ti:Sa 2H+1H·390-410+780-820 nm·99.5%·12.7 mm·6 mm·UVFS·45°
Out of stock Ships in: 58–61 calendar days
$146
061-4080T6-i0 Ti:Sa 2H+1H·390-410+780-820 nm·99.5%·12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$146
061-5103 UVFS; ø12.7 x 3 mm·500-530+1000-1060 nm·ø12.7 x 3 mm·99.5%·UVFS·45°
9 in stock Ships in: 2–5 calendar days
$146
061-5103-i0 Yb:KGW/KYW 2H+1H·UVFS; ø12.7 x 3 mm·500-530+1000-1060 nm·99.5%·12.7 mm·3 mm·UVFS·0°
Out of stock Ships in: 62–65 calendar days
$146
061-5103T6 UVFS; ø12.7 x 6 mm·500-530+1000-1060 nm·ø12.7 x 6 mm·99.5%·UVFS·45°
17 in stock Ships in: 2–5 calendar days
$146
061-5103T6-i0 Yb:KGW/KYW 2H+1H·500-530+1000-1060 nm·99.5%·12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$146
061-5306 Nd:YAG 2H+1H·UVFS; ø12.7 x 3 mm·532+1064 nm·99.5%·12.7 mm·3 mm·UVFS·45°
10 in stock Ships in: 2–5 calendar days
$144
061-5306-i0 Nd:YAG 2H+1H·UVFS; ø12.7 x 3 mm·532+1064 nm·99.5%·12.7 mm·3 mm·UVFS·0°
6 in stock Ships in: 2–5 calendar days
$144
061-5306T6 Nd:YAG 2H+1H·UVFS; ø12.7 x 6 mm·532+1064 nm·99.5%·12.7 mm·6 mm·UVFS·45°
3 in stock Ships in: 2–5 calendar days
$144
061-5306T6-i0 Nd:YAG 2H+1H·UVFS; ø12.7 x 6 mm·532+1064 nm·99.5%·12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 62–65 calendar days
$144
061-6306 HeNe:Nd:YAG 1H·UVFS; ø12.7 x 3 mm·633+1064 nm·99.5%·12.7 mm·3 mm·UVFS·45°
7 in stock Ships in: 2–5 calendar days
$144
061-6306-i0 YAG 1H+HeNe·633+1064 nm·99.7%·ø12.7 mm·3 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$144
061-6306T6 YAG 1H+HeNe·633+1064 nm·99.5%·ø12.7 mm·6 mm·UVFS·45°
Out of stock Ships in: 58–61 calendar days
$144
061-6306T6-i0 YAG 1H+HeNe·633+1064 nm·99.7%·ø12.7 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$144
062-2635 Nd:YAG 4H+3H·UVFS; ø25.4 x 6 mm·266+355 nm·99.0%·25.4 mm·6 mm·UVFS·45°
29 in stock Ships in: 2–5 calendar days
$197
062-2635-i0 Nd:YAG 4H+3H·266+355 nm·99.0%·25.4 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$197
062-2653 Nd:YAG 4H+2H·UVFS; ø25.4 x 6 mm·266+532 nm·99.0%·25.4 mm·6 mm·UVFS·45°
7 in stock Ships in: 2–5 calendar days
$197
062-2653-i0 Nd:YAG 4H+2H·UVFS; ø25.4 x 6 mm·266+532 nm·99.0%·25.4 mm·6 mm·UVFS·0°
Out of stock Ships in: 62–65 calendar days
$197
062-3506 Nd:YAG 3H+1H·UVFS; ø25.4 x 6 mm·355+1064 nm·99.5%·25.4 mm·6 mm·UVFS·45°
31 in stock Ships in: 2–5 calendar days
$184
062-3506-i0 Nd:YAG 3H+1H·355+1064 nm·99.5%·25.4 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$184
062-3553 Nd:YAG 3H+2H·UVFS; ø25.4 x 6 mm·355+532 nm·99.5%·25.4 mm·6 mm·UVFS·45°
14 in stock Ships in: 2–5 calendar days
$184
062-3553-i0 Nd:YAG 3H+2H·UVFS; ø25.4 x 6 mm·355+532 nm·99.5%·25.4 mm·6 mm·UVFS·0°
Out of stock Ships in: 62–65 calendar days
$184
062-4080 Ti:Sa 2H+1H·UVFS; ø25.4 x 6 mm·390-410+780-820 nm·99.5%·25.4 mm·6 mm·UVFS·45°
33 in stock Ships in: 2–5 calendar days
$170
062-4080-i0 UVFS; ø25.4 x 6 mm·390-410+780-820 nm·ø25.4 x 6 mm·99.7%·UVFS·0°
10 in stock Ships in: 2–5 calendar days
$170
062-5103 Yb:KGW/KYW 2H+1H·UVFS; ø25.4 x 6 mm·500-530+1000-1060 nm·99.5%·25.4 mm·6 mm·UVFS·45°
Out of stock Ships in: 62–65 calendar days
$170
062-5103-i0 UVFS; ø25.4 x 6 mm·500-530+1000-1060 nm·ø25.4 x 6 mm·99.7%·UVFS·0°
26 in stock Ships in: 2–5 calendar days
$170
062-5306 Nd:YAG 2H+1H·UVFS; ø25.4 x 6 mm·532+1064 nm·99.5%·25.4 mm·6 mm·UVFS·45°
31 in stock Ships in: 2–5 calendar days
$177
062-5306-i0 Nd:YAG 2H+1H·UVFS; ø25.4 x 6 mm·532+1064 nm·99.5%·25.4 mm·6 mm·UVFS·0°
11 in stock Ships in: 2–5 calendar days
$177
062-5306HHR YAG 1H+2H·UVFS; ø25.4 x 6 mm·532+1064 nm·99.9%·25.4 mm·6 mm·UVFS·45°
38 in stock Ships in: 2–5 calendar days
$238
062-5306HHR-i0 YAG 1H+2H·UVFS; ø25.4 x 6 mm·532+1064 nm·99.9%·25.4 mm·6 mm·UVFS·0°
12 in stock Ships in: 2–5 calendar days
$238
062-6306 HeNe:Nd:YAG 1H·UVFS; ø25.4 x 6 mm·633+1064 nm·99.5%·25.4 mm·6 mm·UVFS·45°
56 in stock Ships in: 2–5 calendar days
$177
062-6306-i0 YAG 1H+HeNe·633+1064 nm·99.7%·ø25.4 mm·6 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$177
065-2635 Nd:YAG 4H+3H·UVFS; ø50.8 x 8 mm·266+355 nm·99.0%·50.8 mm·8 mm·UVFS·45°
Out of stock Ships in: 62–65 calendar days
$304
065-2635-i0 Nd:YAG 4H+3H·266+355 nm·99.0%·50.8 mm·8 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$304
065-2653 Nd:YAG 4H+2H·UVFS; ø50.8 x 8 mm·266+532 nm·99.0%·50.8 mm·8 mm·UVFS·45°
9 in stock Ships in: 2–5 calendar days
$304
065-2653-i0 Nd:YAG 4H+2H·UVFS; ø50.8 x 8 mm·266+532 nm·99.0%·50.8 mm·8 mm·UVFS·0°
Out of stock Ships in: 62–65 calendar days
$304
065-3506 Nd:YAG 3H+1H·UVFS; ø50.8 x 8 mm·355+1064 nm·99.5%·50.8 mm·8 mm·UVFS·45°
5 in stock Ships in: 2–5 calendar days
$285
065-3506-i0 Nd:YAG 3H+1H·355+1064 nm·99.5%·50.8 mm·8 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$285
065-3553 Nd:YAG 3H+2H·UVFS; ø50.8 x 8 mm·355+532 nm·99.5%·50.8 mm·8 mm·UVFS·45°
Out of stock Ships in: 62–65 calendar days
$285
065-3553-i0 YAG 3H+2H·355+532 nm·99.7%·ø50.8 mm·8 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$285
065-4080 UVFS; ø50.8 x 8 mm·390-410+780-820 nm·ø50.8 x 8 mm·99.5%·UVFS·45°
3 in stock Ships in: 2–5 calendar days
$282
065-4080-i0 UVFS; ø50.8 x 8 mm·390-410+780-820 nm·ø50.8 x 8 mm·99.7%·UVFS·0°
Out of stock Ships in: 62–65 calendar days
$282
065-5103 UVFS; ø50.8 x 8 mm·500-530+1000-1060 nm·ø50.8 x 8 mm·99.5%·UVFS·45°
9 in stock Ships in: 2–5 calendar days
$282
065-5103-i0 Yb:KGW/KYW 2H+1H·UVFS; ø50.8 x 8 mm·500-530+1000-1060 nm·99.5%·50.8 mm·8 mm·UVFS·0°
8 in stock Ships in: 2–5 calendar days
$282
065-5306 Nd:YAG 2H+1H·UVFS; ø50.8 x 8 mm·532+1064 nm·99.5%·50.8 mm·8 mm·UVFS·45°
9 in stock Ships in: 2–5 calendar days
$276
065-5306-i0 Nd:YAG 2H+1H·UVFS; ø50.8 x 8 mm·532+1064 nm·99.5%·50.8 mm·8 mm·UVFS·0°
2 in stock Ships in: 2–5 calendar days
$276
065-6306 HeNe:Nd:YAG 1H·UVFS; ø50.8 x 8 mm·633+1064 nm·99.5%·50.8 mm·8 mm·UVFS·45°
52 in stock Ships in: 2–5 calendar days
$276
065-6306-i0 YAG 1H+HeNe·633+1064 nm·99.7%·ø50.8 mm·8 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$276
067-2635 Nd:YAG 4H+3H·266+355 nm·99.0%·76.2 mm·12.7 mm·UVFS·45°
Out of stock Ships in: 58–61 calendar days
$483
067-2635-i0 Nd:YAG 4H+3H·266+355 nm·99.0%·76.2 mm·12.7 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$483
067-2653 Nd:YAG 4H+2H·UVFS; ø76.2 x 12.7 mm·266+532 nm·99.0%·76.2 mm·12.7 mm·UVFS·45°
Out of stock Ships in: 62–65 calendar days
$483
067-2653-i0 Nd:YAG 4H+2H·266+532 nm·99.0%·76.2 mm·12.7 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$483
067-3506 Nd:YAG 3H+1H·UVFS; ø76.2 x 12.7 mm·355+1064 nm·99.5%·76.2 mm·12.7 mm·UVFS·45°
1 in stock Ships in: 2–5 calendar days
$474
067-3506-i0 Nd:YAG 3H+1H·355+1064 nm·99.5%·76.2 mm·12.7 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$474
067-4080 Ti:Sa 2H+1H·UVFS; ø76.2 x 12.7 mm·390-410+780-820 nm·99.5%·50.8 mm·12.7 mm·UVFS·45°
1 in stock Ships in: 2–5 calendar days
$474
067-4080-i0 390-410+780-820 nm·ø76.2 x 12.7 mm·99.7%·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$474
067-5103 Yb:KGW/KYW 2H+1H·500-530+1000-1060 nm·99.5%·76.2 mm·12.7 mm·UVFS·45°
Out of stock Ships in: 58–61 calendar days
$474
067-5103-i0 500-530+1000-1060 nm·ø76.2 x 12.7 mm·99.7%·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$474
067-5306 Nd:YAG 2H+1H·UVFS; ø76.2 x 12.7 mm·532+1064 nm·99.5%·76.2 mm·12.7 mm·UVFS·45°
Out of stock Ships in: 62–65 calendar days
$474
067-5306-i0 YAG 1H+2H·532+1064 nm·99.7%·ø76.2 mm·12.7 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$474
067-6306 HeNe:Nd:YAG 1H·UVFS; ø76.2 x 12.7 mm·633+1064 nm·99.5%·76.2 mm·12.7 mm·UVFS·45°
Out of stock Ships in: 62–65 calendar days
$474
067-6306-i0 YAG 1H+HeNe·633+1064 nm·99.7%·ø76.2 mm·12.7 mm·UVFS·0°
Out of stock Ships in: 58–61 calendar days
$474

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Material BK7 grade A glass or UV grade fused silica
S1 Surface Flatness λ / 10 typical at 633 nm
S1 Surface Quality 20-10 scratch & dig laser quality
S2 Surface Quality Commercial polish
Diameter Tolerance + 0.00 mm, - 0.12 mm
Thickness Tolerance ± 0.25 mm
Wedge < 3 minutes
Chamfer 0.3 mm at 45° typical
Technology Electron beam multilayer dielectric
Adhesion and Durability Per MIL-C-675A. Insoluble in lab solvents
Clear Aperture Exceeds central 85% of diameter
Damage Threshold BK7 dual line mirrors - 3 J / cm2, 8 nsec pulse, 1064 nm typical / UVFS dual line mirrors - 5 J / cm2, 8 nsec pulse, 1064 nm typical
Coated Surface Flatness λ / 10 at 633 nm over 85% of diameter available
Angle of incidence 0° or 45°

Classification

Coating dielectric

Description

  • Highly reflective mirrors (99.5% reflectivity)
  • Designed to work at 45° or 0° angle of incidence
  • Made from BK7 glass or UV grade fused silica

Laser Line Mirrors are dielectric reflectors with optimised performance at stated laser wavelengths. Dual band laser mirrors are offered for applications where reflection of two laser lines is needed.

Our laser mirrors are made from BK7 or quartz and coated with dielectric multilayer coating. The achieved high polishing quality is also important for low wave front distortion, low scattering and high damage threshold.

Downloads

PDF
EKSMA_Optics_Laser_Mirrors_2_.pdf PDF · 207 KB

Related products — often paired with this product
