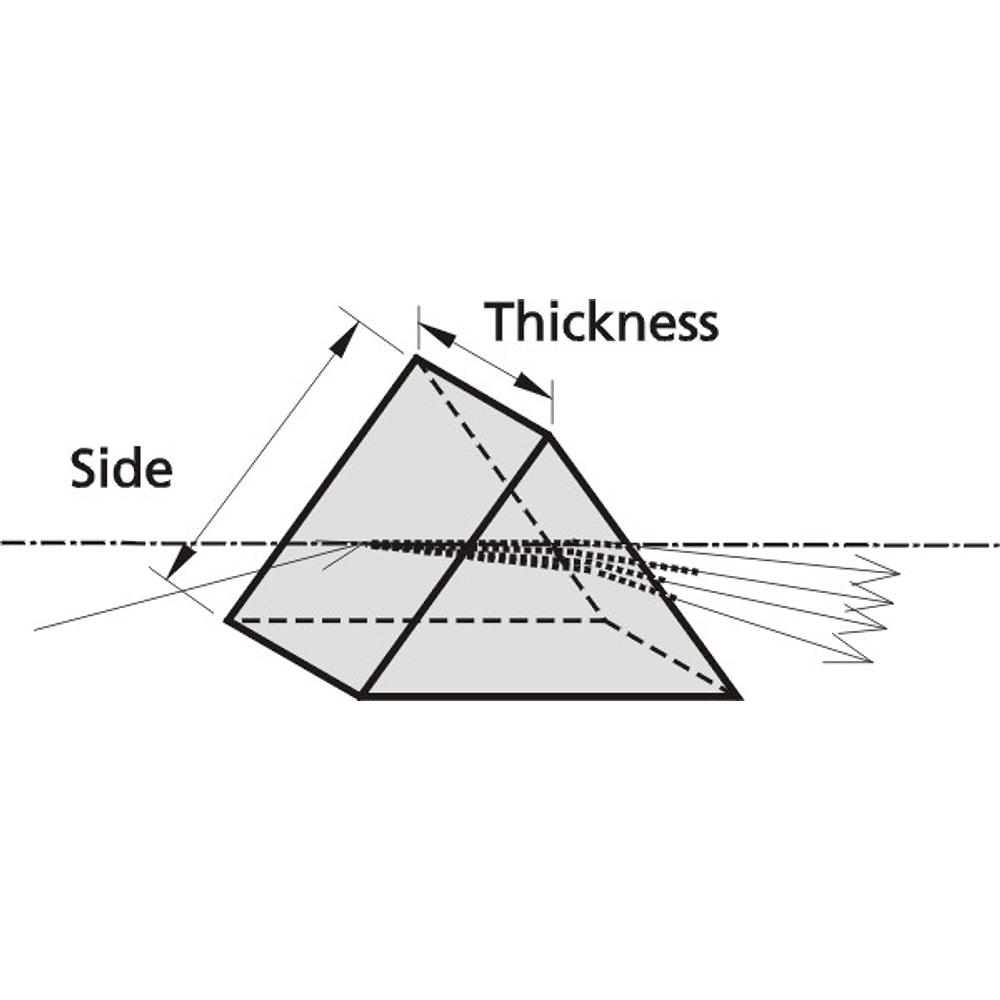

Laser Dispersing Prisms
• Separate light by wavelength • They are made so that entrance and exit beams pass through at the Brewster Angle Like Brewster Angle Windows, Laser Dispersing Prisms can be used inside the cavity of laser operating on… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Design Wavelength Range | Input Beam Diameter | Material Type | Material | Apex Angle | |
|---|---|---|---|---|---|---|
| 320-0110 | 800 nm - 800 nm | 6 mm | BK7 | BK7 | 67 deg 0 min 0 sec |
2 in stock
Ships in: 2–5 calendar days
$48
|
| 320-0218 | 800 nm - 800 nm | 12 mm | BK7 | BK7 | 67 deg 0 min 0 sec |
2 in stock
Ships in: 2–5 calendar days
$83
|
| 320-0525 | 800 nm - 800 nm | 22 mm | BK7 | BK7 | 67 deg 0 min 0 sec |
9 in stock
Ships in: 2–5 calendar days
$168
|
| 320-1110 | 800 nm - 800 nm | 6 mm | FS | UVFS | 69 deg 0 min 0 sec |
9 in stock
Ships in: 2–5 calendar days
$87
|
| 320-1218 | 800 nm - 800 nm | 12 mm | FS | UVFS | 69 deg 0 min 0 sec |
23 in stock
Ships in: 2–5 calendar days
$150
|
| 320-1525 | 800 nm - 800 nm | 22 mm | FS | UVFS | 69 deg 0 min 0 sec |
16 in stock
Ships in: 2–5 calendar days
$312
|
| 320-8110 | 800 nm - 800 nm | 6 mm | Glass | SF11 | 59 deg 0 min 0 sec |
11 in stock
Ships in: 2–5 calendar days
$59
|
| 320-8218 | 800 nm - 800 nm | 12 mm | Glass | SF11 | 59 deg 0 min 0 sec |
2 in stock
Ships in: 2–5 calendar days
$114
|
| 320-8525 | 800 nm - 800 nm | 22 mm | Glass | SF11 | 59 deg 0 min 0 sec |
11 in stock
Ships in: 2–5 calendar days
$234
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Design Wavelength Range | 800 nm - 800 nm |
| Angle Tolerance, +/- | 0 deg 2 min 0 sec |
Surface 1
| Surface quality, grind or polish | Polished |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface quality, grind or polish | Polished |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- Separate light by wavelength
- They are made so that entrance and exit beams pass through at the Brewster Angle
Like Brewster Angle Windows, Laser Dispersing Prisms can be used inside the cavity of laser operating on very low gain laser transitions, where even slight reflection losses may be intolerable.
Custom fabrication also available: coating, cutting, edging, drilling according to your specification.
