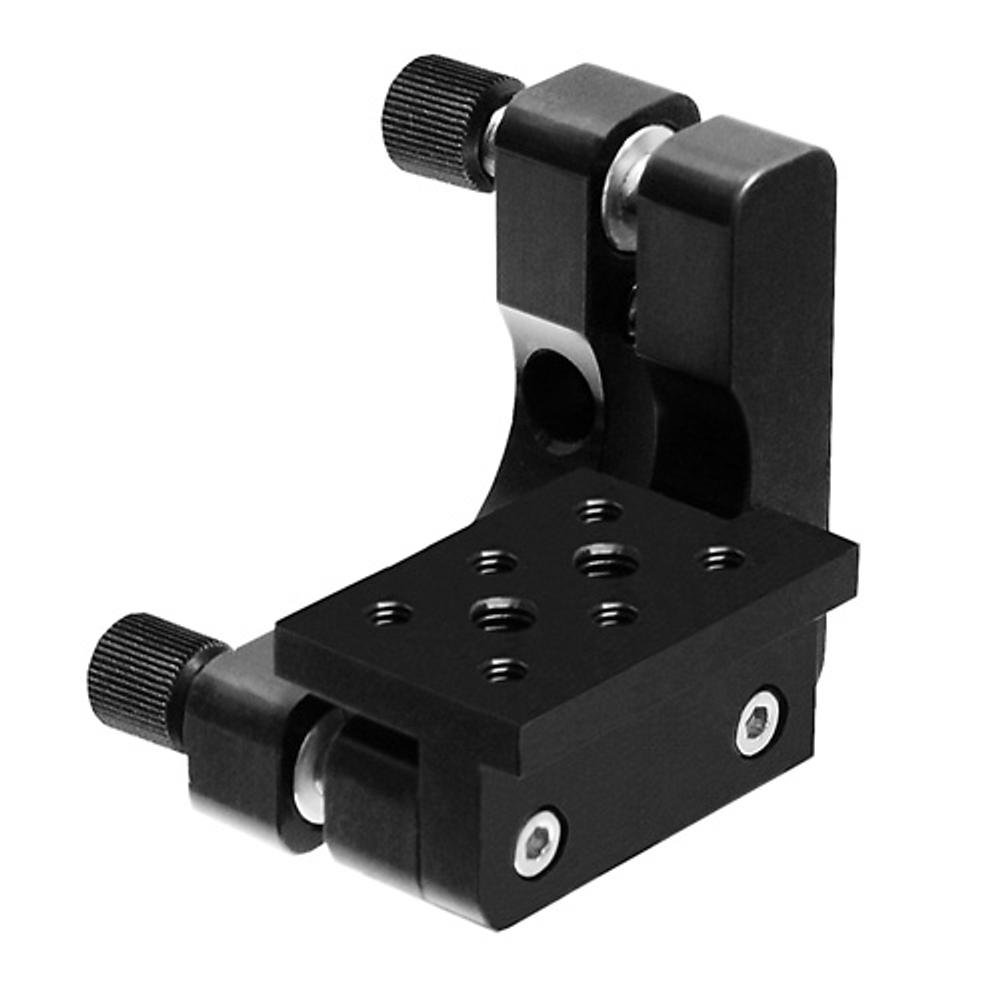

Prism/Optics Mount 840-1120-B
• Handy two orthogonal angular adjustments • 9° range • Sensitivity 3 arcsec • M6×0.25 adjustment screws provide precise kinematic control • Made of black anodized aluminium • "Right-hand" version is available Prism… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mount Material and Coating | Mounting Thread | |
|---|---|---|---|---|
| 840-1120-B2 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | M6, M4 |
Out of stock
$72
|
| 840-1120-B3 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | M6, M4 |
Out of stock
$88
|
| 840-1120-BM2 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | M6, M4 |
Out of stock
$72
|
| 840-1120-BM3 | Manual Optical Positioner, 3-screws | Black Anodised Aluminum | M6, M4 |
Out of stock
$88
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M6, M4 |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Number of Axes | 2 |
| Width | 50 mm |
| Length | 21.5 mm |
| Height | 49 mm |
| Screw Pitch | M6×0.25 |
Description
- Handy two orthogonal angular adjustments
- 9° range
- Sensitivity 3 arcsec
- M6×0.25 adjustment screws provide precise kinematic control
- Made of black anodized aluminium
- "Right-hand" version is available
Prism Mount 840-01120-B provides basic mounting for prisms, beamsplitters, cubes and etc. Spring clamps 840-0111 series should be ordered seperately. This mount is metric compatible.
840-1120-B Mounts are equipped with fine pitch M6x0.25 mm adjustment screws, which rest upon hardened steel seats to provide reliable and repeatable adjustment. Mounting through holes for M4 (8-32) screws.
