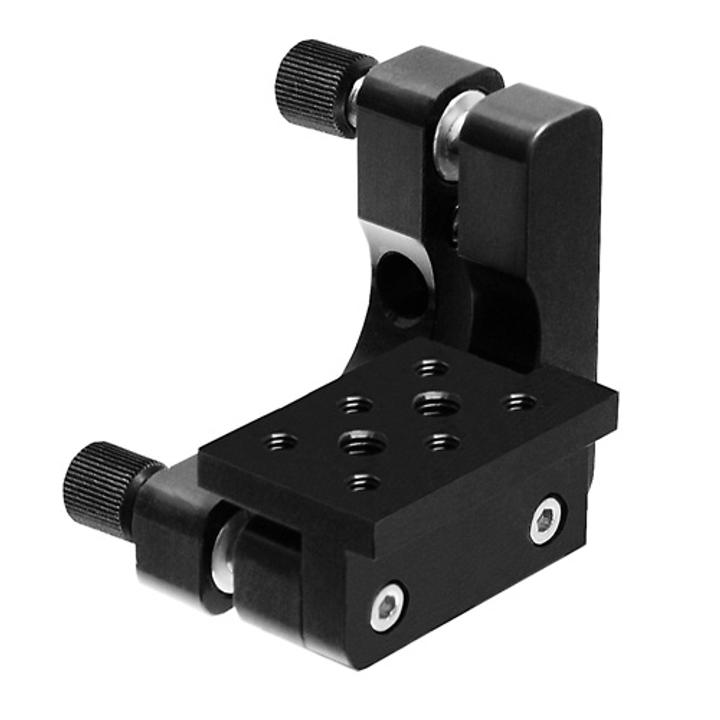

Prism/Optics Mount 840-1120-B SKU: 840-1120-BM3
• Handy two orthogonal angular adjustments • 9° range • Sensitivity 3 arcsec • M6×0.25 adjustment screws provide precise kinematic control • Made of black anodized aluminium • "Right-hand" version is available Prism Mount 840-01120-B provides basic mounting for prisms,…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 3-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M6, M4 |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Number of Axes | 2 |
| Width | 50 mm |
| Length | 21.5 mm |
| Height | 49 mm |
| Screw Pitch | M6×0.25 |
