Optical Mounts
-
Adapter 840-0110-A5
840-0110-A5 Platform Adapter allows to turn the optics to a convenient position.
From $17
-
Adapter for Beamsplitter at 45 deg 840-0116
• Suitable for dichroic mirrors and beamsplitters operating at AOI 45 deg Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the...
From $36
-
Adapter for Mirror at 45 deg 840-0115
• Suitable for dichroic mirrors and beamsplitters operating at AOI 45 deg With the help of this Adapter optics is firmly held by a plastic securing screw and it rests against t...
From $36
-
Adapter for Rectangular Polarizer at 56 deg 840-0118
• Suitable for rectangular thin film laser polarizers at 56 deg. Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interfac...
From $41
-
Adapter for Round Polarizer at 56 deg 840-0117
• Suitable for round thin film laser polarizers at 56 deg Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface. The ...
From $39
-
Adjustable Laser/Laser Head Holder 850-0095
• Stable design • Precise adjustment about linear and angular coordinates • Wide adjustment angle • High load capacity • Convenient mounting Adjustable Laser/Laser Head Holder ...
From $136
-
Beamsplitter Mount of Side Drive 840-0191
• Most compact dimensions among 1" optics mounts • Both tilt and tip are controlled from aside the optical path • Ideal for dense optical schemes • Fine adjustment screws with 0...
From $113
-
Beamsplitter/Optics Mount 840-0130-T
• Adjustment of both angles is controlled from one side • Ideal for high density optical schemes • Fine adjustment screws with 0.25 mm pitch • Travel range ±2° • Hardened insert...
From $108
-
Compact Mirror Mount 840-0090
Compact Mirror Mount 840-0090 has small adjustment screws with a hexagonal head or a hexagonal keyhole. Miniature Precision Mirror Mount ensures precise angular adjustments of s...
From $48
-
Filter Holders 830-0060A, 830-0070A
Model 830-0060A and 830-0070A Filter Holders are designed to locate plate optics with maximum clear aperture. Each plate is held separately to prevent scratching and is register...
From $27
-
Five-Axes Optical Mount 840-0210
The Five-Axes Mounts are considered as a combination of: • side drive kinematic optical mount (840-0192/ 840-0193), • Y-Z translation optical mount (990-0050), • optical zo...
From $273
-
Flipping Mirror/Beamsplitter Mount 840-0155
• Flip optics in and out of the experiment • Kinematic design • Precise and handy angular adjustment in two orthogonal planes • Stable vertical mounting • Adjustment range of 9°...
From $168
-
Flipping Mirror/Beamsplitter Mount 840-0155-04
• Flip optics in and out of the optical scheme • Tilt/tip range 8°, • sensitivity 3 arcsec • Kinematic design • For Ø 50.8 mm optics (2 inch) • Maximum optics thickness 7 mm • 4...
From $222
-
Gimbal Mount 840-0096
This mount is designed so that two intersecting axes of rotation are orthogonal and fixed in space. Such design allows independent adjustment about both axes without translation...
From $297
-

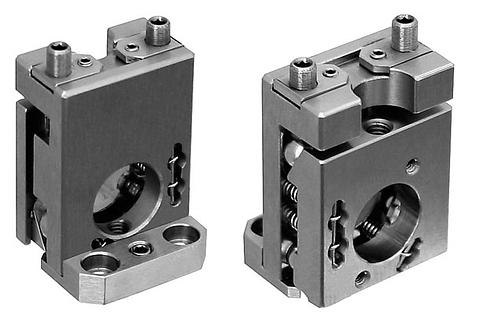

Kinematic Vertical Drive Optical Mount 840-0230
• For Ø12.7 mm (0.5 inch) optics • Stainless steel • Compact/robust design • Lockable adjustment screws • Fine screws pitch 0.25 mm (101.6 TPI) • Tilt/tip range ±2.5° • Sensitiv...
From $26
-

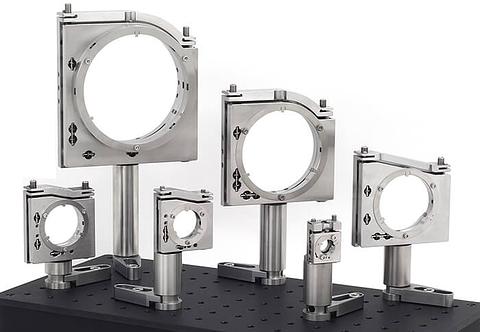

Kinematic Vertical Drive Optical Mount/Vertical Drive Optical Mount 840-0220, 840-0225
• For optics from 1" (25.4 mm) to 4" (101.6 mm) • Lockable adjustment screws • Sensitivity - 2 arcsec • Vacuum compatible version is available on request • Made of stainles...
From $324
-

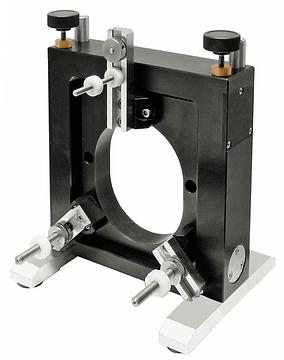

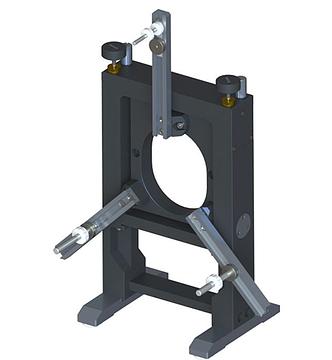

Large Adjustable Kinematic Optical Mount 840-0005
The super fine and stable Kinematic Optical Mounts 840-0005 and 840-0005-01 are designed for large and heavy optics. 840-0005-01 features an optional universal element holder ...
From $1,967
-

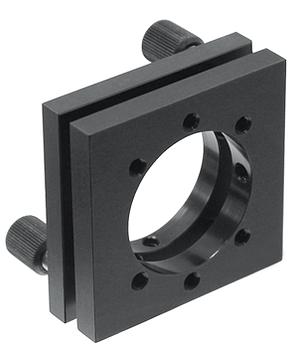

Large Aperture Optical Mount 840-0053
Large Aperture Optical Mounts 840-0053 were designed for precise orthogonal adjustment of mirrors. Mounts have six M4 mounting holes on their platforms. • Precise angular adj...
From $60
-
Large Aperture Optical Mount 840-0150-T
• Adjustment of both angles is controlled from one side • Ideal for high density optical schemes • Fine adjustment screws with 0.25 mm pitch • Travel range ±2° • Hardened insert...
From $105
-
Large Optical Mount 840-0006
Large Optical Mount 840-0006 is designed for large and heavy transmission optics. • Optics diameter - 115-200 mm • Optics thickness up to 52 mm • Load capacity - 6 kg
From $953
-
Large Self-Centering Lens/Optics Mounts 830-0027
Self-Centering Optics Mount 830-0027 reliably centres and securely holds round optics and cylindrical objects. This mount is particularly valuable when lenses of different diame...
From $514
-

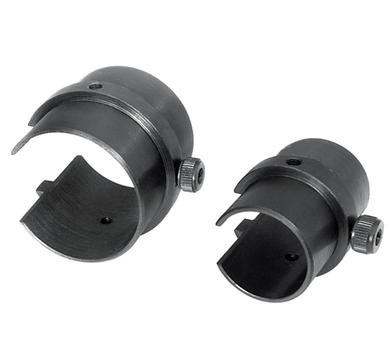

Laser Holders 830-0080, 830-0090
The 830-0080 and 830-0090 holders securely hold cylindrical objects like He-Ne lasers at fixed position. With the help of screw holders can be mounted directly to standard rods...
From $23
-

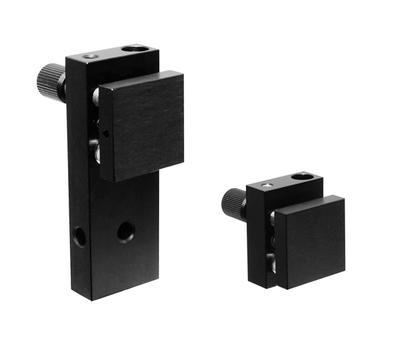

Lock Screws Mirror Mounts 840-0080
Miniature precision Mirror Mounts ensure precise angular adjustments of small optics about two orthogonal axes with 10 arcsec sensitivity. • miniature mounts for small optic ...
From $47
-
Miniature Clamp 840-0100-A2
840-0100-A2 allows fastening of optical elements up to 1". It is ideal if the mount is used as a tilt platform. The clamp has a M3 mounting thread.
From $14
-
Miniature Clamp 840-0110-A2
840-0110-A2 Miniature Clamp is ideal if the mount is used as a tilt platform. Plastic clutching pad clamps elements up to Ø40 mm (1.5'').
From $21
-
Miniature Flipping Mirror/Beamsplitter Mounts 840-0155-06, 840-0155-07, 840-0155-08, 840-0155-09
• Flip optics in and out of the optical scheme • Repeatability 20 µrad • Tilt/tip range 9° • Sensitivity 8 arcsec • For Ø12.7 and Ø25.4 mm (0.5” and 1”) optics • Clear edge desi...
From $131
-

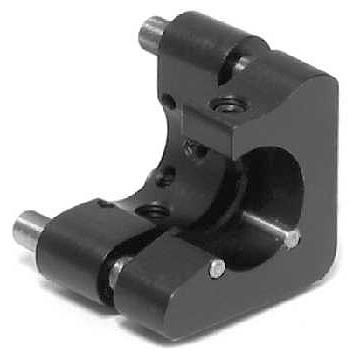

Miniature Kinematic Mirror / Beamsplitter Mount 840-0054
• Precise angular adjustments around two orthogonal axes • For Ø 12.7 mm optics (0.5 inch) • Kinematic • Clear edge design • Hex key drive • Tilt/tip range - 14° • Sensitivity o...
From $80
-

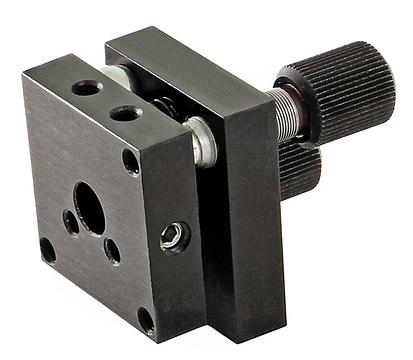

Mirror / Optics Mount 840-0060
These black anodized aluminium precision mirror mounts are ideal for holding 25 mm and smaller optics in tight spaces. The M4 and M6 taped holes are provided for mounting. • ...
From $52
-
Mirror Adapter 840-0100-A3
The cut-off side clears the edge of the optics for working with a beam very closely situated to another beam. A fixing screw of stainless steel clutches optics firmly against t...
From $14
-

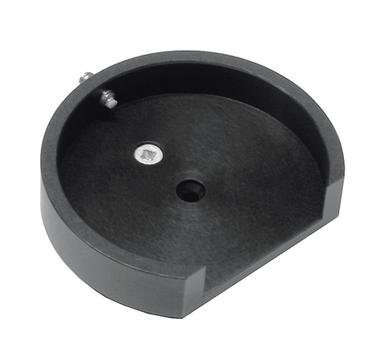

Mirror Adapter 840-0110-A3
Connecting cone facilitates adjustmenrt of the adapter. The cut-off side clears the edge of the optics for working with a beam very closely situated to another beam. Optics is ...
From $23
