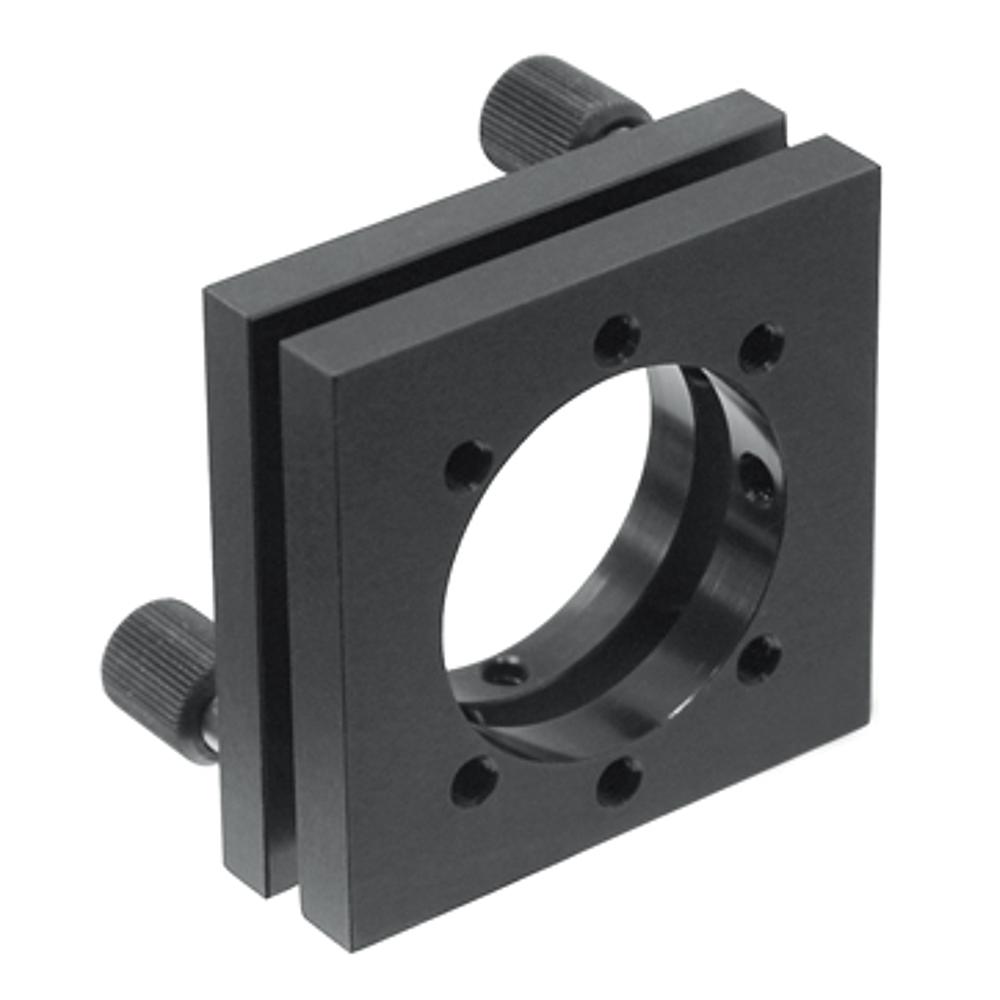

Large Aperture Optical Mount 840-0053
Large Aperture Optical Mounts 840-0053 were designed for precise orthogonal adjustment of mirrors. Mounts have six M4 mounting holes on their platforms. • Precise angular adjustments around two orthogonal axes •… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Mounting Thread | |
|---|---|---|---|---|
| 840-0053-01 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | M4 |
Out of stock
$60
|
| 840-0053-02 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | M4 |
Out of stock
$131
|
Specifications
| Product Type | Manual Optical Positioner, 2-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M4 |
| Angular Tilt Range | 9 Deg |
| Number of Axes | 2 |
| Length | 35 mm |
| Screw Pitch | M6×0.35 |
Description
Large Aperture Optical Mounts 840-0053 were designed for precise orthogonal adjustment of mirrors. Mounts have six M4 mounting holes on their platforms.
- Precise angular adjustments around two orthogonal axes
- Stable vertical mounting
- Tilt/tip range - 9°
- Made of black anodized aluminium
840-0053-01 has a Ø31.8 mm aperture.
840-0053-02 has a Ø51 mm aperture.
