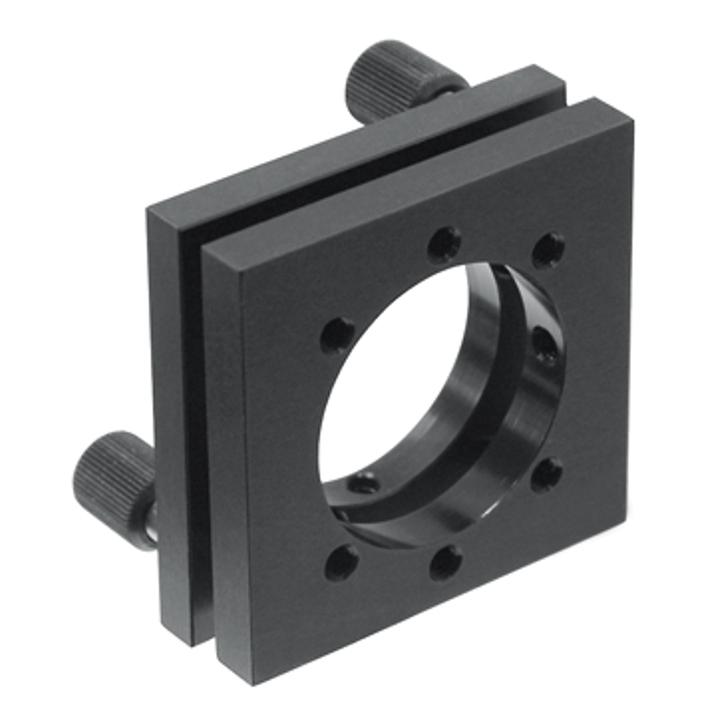

Large Aperture Optical Mount 840-0053 SKU: 840-0053-02
Large Aperture Optical Mounts 840-0053 were designed for precise orthogonal adjustment of mirrors. Mounts have six M4 mounting holes on their platforms. • Precise angular adjustments around two orthogonal axes • Stable vertical mounting • Tilt/tip range - 9° • Made of…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 2-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M4 |
| Angular Tilt Range | 9 Deg |
| Number of Axes | 2 |
| Mount Clear Aperture | 51 mm |
| Width | 68 mm |
| Length | 35 mm |
| Height | 68 mm |
| Screw Pitch | M6×0.35 |
Variant files
Technical drawings, models and data files for SKU 840-0053-02.
