Manual Translation Stages
-

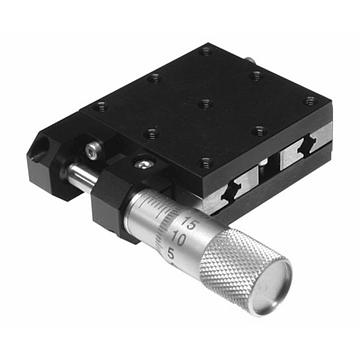

Aluminium Ball Bearing Stage 860-0096
• Compact design • Precise movement • 13 mm travel range • Lockable • X-Y direct stacking
From $372
-

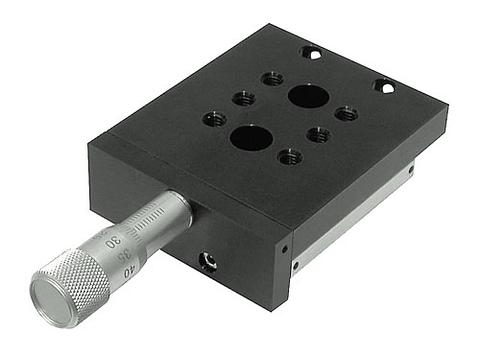

Basic Translation Stages 860-0085
• 10 mm travel • Low profile • X-Y-Z direct stacking Basic Translation Stages 860-0085 can be stacked for XYZ applications. 860-0085-01 stage should be stacked in XY axes with ...
From $299
-

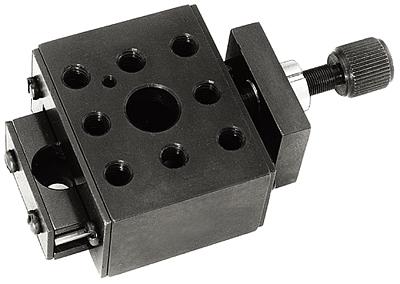

Compact Translation Stage 860-0010
The model 860-0010 compact translation stage is well suited for positioning applications in laboratory experiments requiring linear motion within small space. Ball bearing rolli...
From $155
-

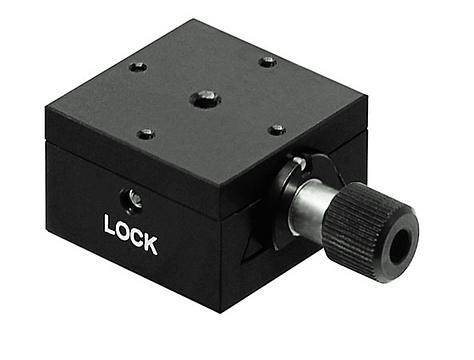

Dovetail Linear Translation Stage 860-0106
• Compact design • Robust Dovetail Mechanism • Rapid, Smooth Positioning • Lockable Moving Platform • XY Miniature Dovetail Stages The Dovetail Translation Stage is miniature, ...
From $99
-

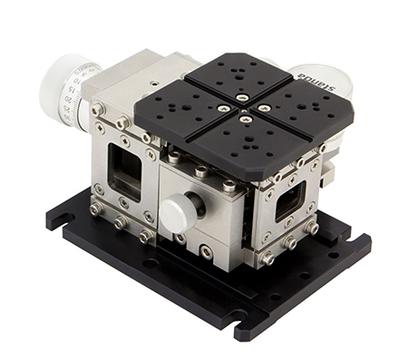

Fiber Coupling Stage 860-0210
• fiber coupling stage of flexure design • rotating platform on the top • compact block design • long-term stability • smooth motion Flexure stages are ideal for high precision...
From $957
-

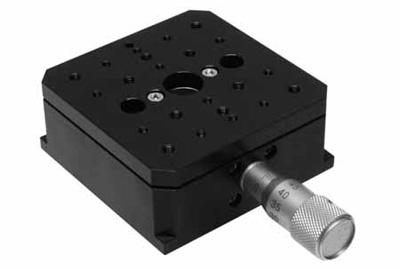

Linear Flexure Translation Stage 860-0105
• Extremely low friction • Stackable for X-Y-Z configurations The 860-0105 linear flexure translation stages provide ultra smooth translation for optical assemblies and other c...
From $432
-

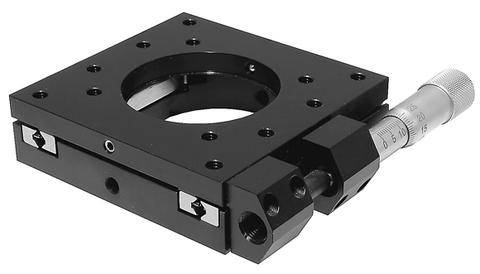

Low Profile Aluminium Translation Stages 860-0070
• Precision movement • 25, 50 mm travel ranges • Stackable for multi-axis positioning • Reversible for left or right hand applications • 2 inches (Ø50 mm) clear aperture • Inser...
From $593
-

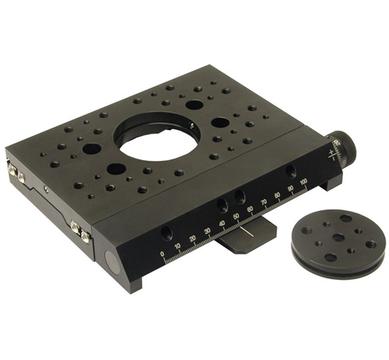

Low Profile Translation Stage with Quick Move Lever 860-0070-06
• Precise movement • 100 mm travel range • Stackable for XY positioning • 2 inches (Ø50 mm) clear aperture • Insert platform with M6, M4 and clearance holes • Instant targ...
From $723
-

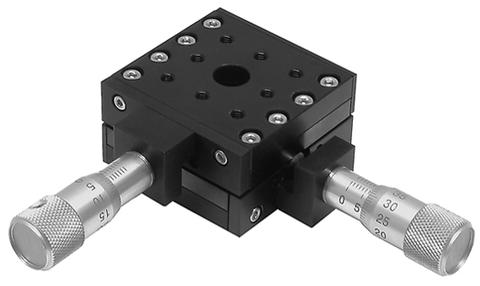

Low Profile Two-Axes Aluminium Translation Stage 860-0094
• Compact X-Y configuration • Exceptionally precise orientation of axes at 90° • Precision movement • 10 mm travel range • Precision ball bearings • Perpendicular and side contr...
From $478
-

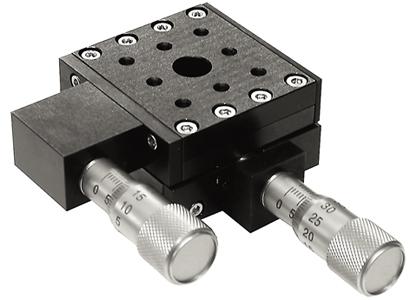

Low Profile Two-Axes Aluminium Translation Stage of Side Control 860-0094-02
• A rare opportunity to control an X-Y translation stage by access from a single side For your convenience we have rotated the driving screw for X axis in the Translation Stage...
From $574
-

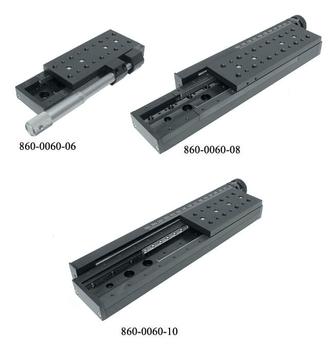

Medium (width 50 mm) Aluminium Translation Stages 860-0060
• 50, 100, 150 mm travel ranges • Stackable for X-Y-Z configuration • Convenient patterns of mounting holes • Precise ball bearings • Custom angle brackets are made promptly • M...
From $576
-

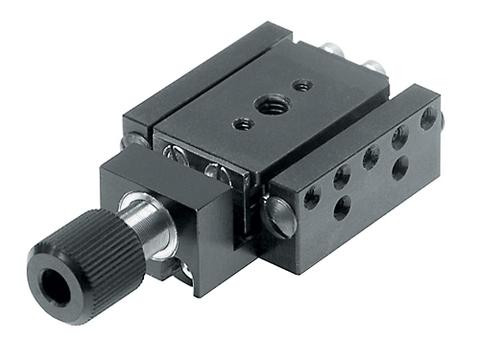

Micro Translation Stage 860-0100
• compact configuration • precision movement • 5 mm travel range • precision ball bearings • X-Y units are available Micro Translation Stage 860-0100 provides smooth, precise s...
From $236
-
Mini Rail System Ball Slide Positioners 860-0090-02, 860-0090-04
The Mini Rail System Ball Slide Positioner 860-0090-02 has a travel range of 5 mm. Using the micrometer driving screw mounted into M10×1 taped hole, the resolution of 10 µm is a...
From $299
-

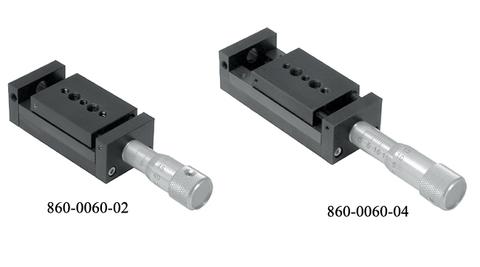

Narrow (width 30 mm) Aluminium Translation Stages 860-0060
• 10, 20, 25 mm travel ranges • Optional travel: 5, 6, 30 mm • Stackable for compact X-Y-Z configuration • Custom angle brackets are made promptly • Driving micrometer screw • P...
From $309
-

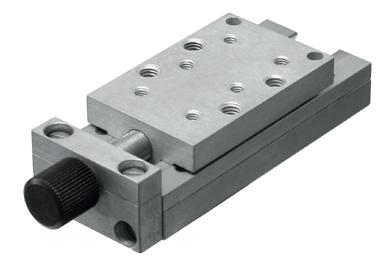

Non-Magnetic Linear Translation Stage 860-0056
• Precision non-magnetic translation stage • Only non-magnetic materials (brass, bronze, aluminium) are used for stage construction • X-Y-Z configurations available Fine screws...
From $65
-
Precision Translation Stages 860-0020, -0030, -0040, -0050
Model 860‑0020, 860‑0030, 860‑0040, 860‑0050 precision translation stages provide smooth and precise platform movement along one axis. They feature precision ball bearing constr...
From $227
-

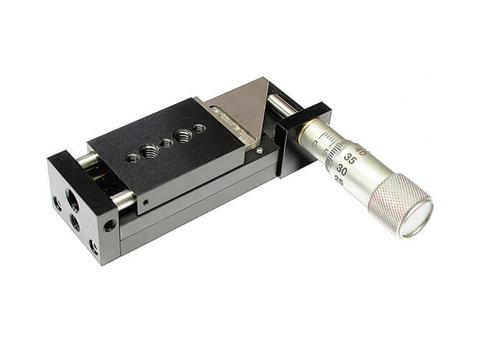

Side Control Linear Stages 860-0058
• 10, 20 mm travel ranges • Side Control Linear Stage • Driving Micrometer screw • Precise ball bearings • Compact XYZ configuration with all screws from one side • Right and le...
From $383
-

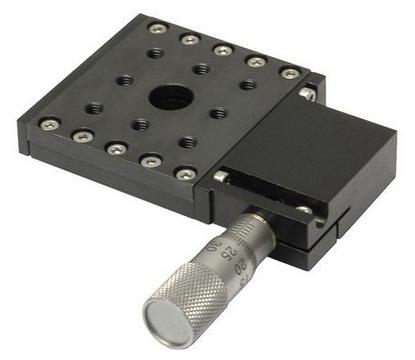

Side Control Linear Steel Stages 860-0092T
• Stable steel stage • 10 mm travel range • Side control linear stage • Driving micrometer screw • Precise ball bearings • Compact XYZ configuration with all screws from one si...
From $357
-

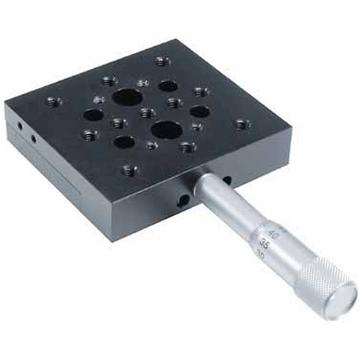

Stable Aluminium Translation Stage 860-0053
• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • Large mounting surface Stable Aluminium Translation Stag...
From $358
-

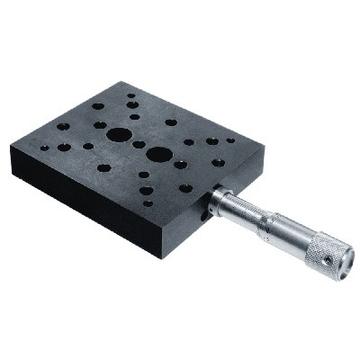

Stable Steel Translation Stage 860-0052
• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • For Z axis add 810-0146 angle bracket • Large mounting su...
From $472
-

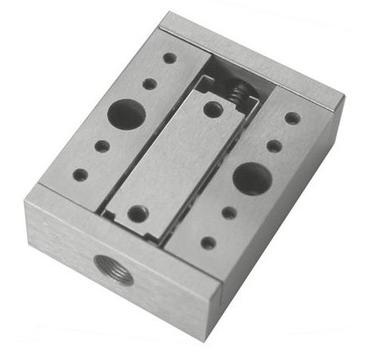

Stainless Steel Single to Multi-Axis Stages 860-0054
• Solid box design • Compact design • 6 mm travel range • Large mounting surface • Easily stackable for X-Y configuration • Made entirely of stainless steel – easily adaptable f...
From $237
-

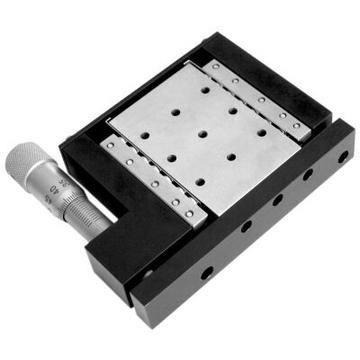

Translation Stage 860-0051
• Micrometer drive • Wide travel range • X-Y-Z configuration available
From $425
-

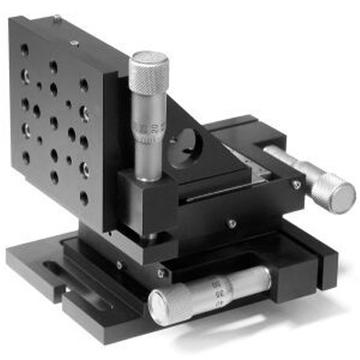

Translation System 860-0051XYZ
XYZ movement, micrometer drive within 15 mm travel range. Vacuum compatible translation system 860-0051V-XYZ is available. Translation system 860-0051XYZ is assembled of: • Th...
From $1,379
-

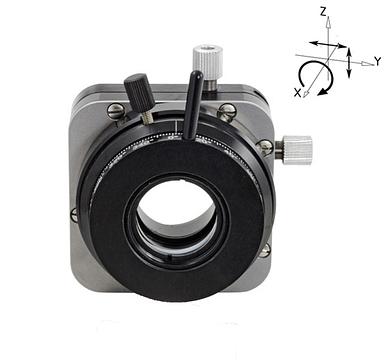

Two Axes Translation Polarizer Holder 840-0240
Two axes (Y-Z) translation stage with 2 mm travel range is driven by two screws. Two axes translation polarizer holder has M4 hole on the bottom and can be fitted in different m...
From $383
-

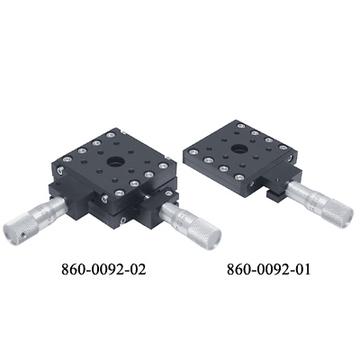

Ultra Low Profile Steel Translation Stages. Single and Two-Axes 860-0092
• 10.5 mm in height • 1axis stage • Compact X-Y configuration • Exceptionally precise orientation of axes at 90° • Precision movement • 10 travel range • Stages of stainless ste...
From $296
-

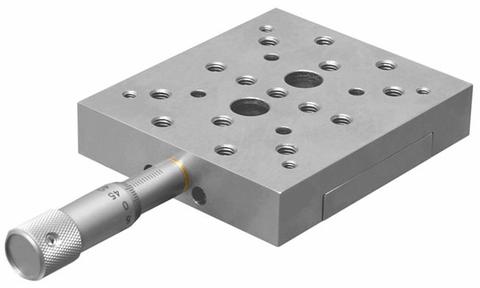

Vacuum Compatible Translation Stage 860-0052V
• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • For Z axis add 810-0146 angle bracket • Large mount...
-
Vertical Drive Ultra Low Profile Steel Translation Stages 860-0092D
• Stable steel stage • 10 mm travel range • Driving micrometer screw • Precise ball bearings • Stainless steel and vacuum versions available
From $920
-

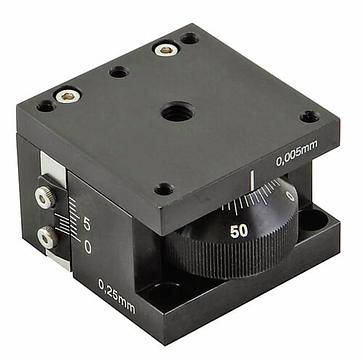

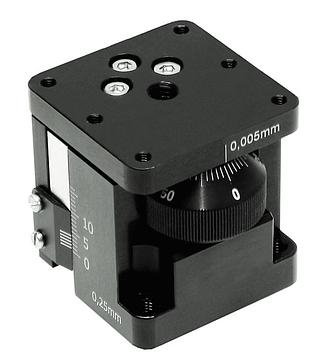

Vertical Stage 860-0099
• Compact • High precision • Travel range 13 mm • See 860-0098 for 5 mm travel • Motorized version 960-0199 is available Vertical Stage 860-0099 is made in most compact design...
From $372
-

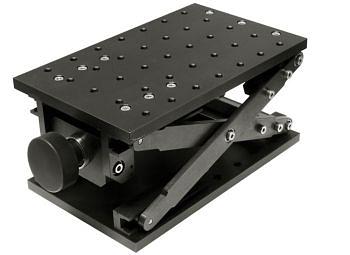

Vertical Translation Stage 860-0075
• Pantograph design • 16 ball bearings • Precision lead screw • 100 mm vertical travel • Height: min 84 mm, max 184 mm • Top and bottom plates parallel to 1 mm • Load capacity 7...
From $597
-

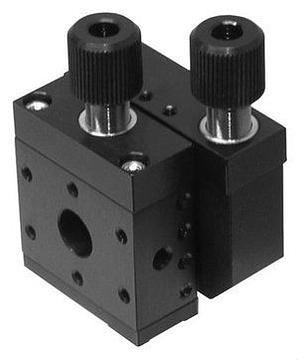

XZ Micro Translation Stage of Side Regulation 860-0102
• Ultra compact configuration • Precise rectilineal movement • 4 mm X-Z or X-Y travel range • Precision ball bearings • Fine Screws pitch 0.25 mm (100 threads per Inch) XZ Micr...
From $340
