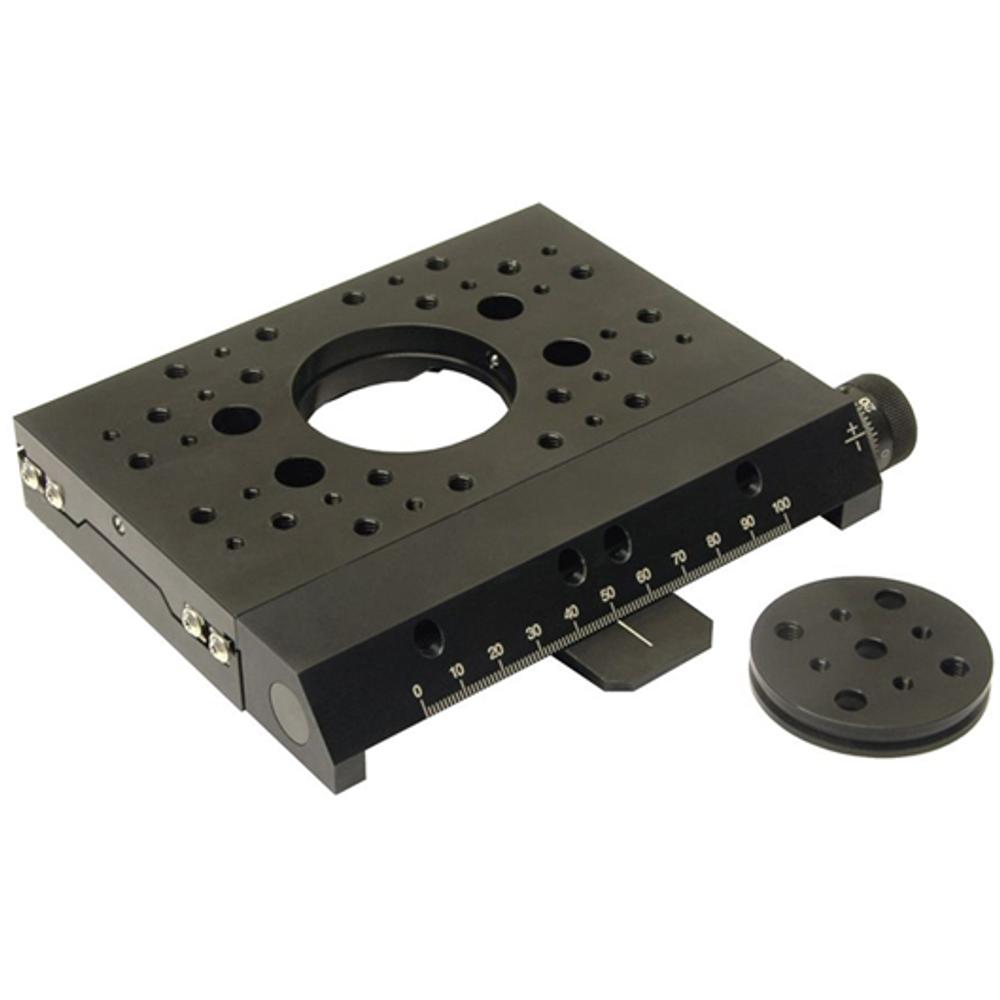

Low Profile Translation Stage with Quick Move Lever 860-0070-06

Low Profile Translation Stage with Quick Move Lever 860-0070-06

• Precise movement • 100 mm travel range • Stackable for XY positioning • 2 inches (Ø50 mm) clear aperture • Insert platform with M6, M4 and clearance holes • Instant targeting with subsequent fine adjustment… Read more →

From $723 Configure & order →

Order

SKU Product Type Travel Range Possible Axis Configurations Load Capacity Horizontal
860-0070-06 Manual Translation Stage 100 mm X 16 kg
Out of stock
$723

Specifications

Product Type Manual Translation Stage
Travel Range 100 mm
Travel Sensitivity 1 µm
Reading Accuracy - Linear 10 µm
Possible Axis Configurations X
Load Capacity Horizontal 16 kg
Weight 0.6 kg
Width 147 mm
Length 170 mm
Height 26 mm

Description

  • Precise movement
  • 100 mm travel range
  • Stackable for XY positioning
  • 2 inches (Ø50 mm) clear aperture
  • Insert platform with M6, M4 and clearance holes
  • Instant targeting with subsequent fine adjustment possibility by pressing a lever for quick movement bypassing the driving screw

Low Profile Translation Stage 860-0070-06 is designed to be used with a microscope. Coarse movement of the sample can be achieved by releasing the lever, fine position can then be achieved by using the adjustment screw.

860-0070-06XY consists of to 860-0070-06 stages stacked directly in XY configuration. For using it in XYZ configuration any other Eksma Optics linear positioner could be utilized as a Z-axis, which could be mounted through appropriate angle bracket.
