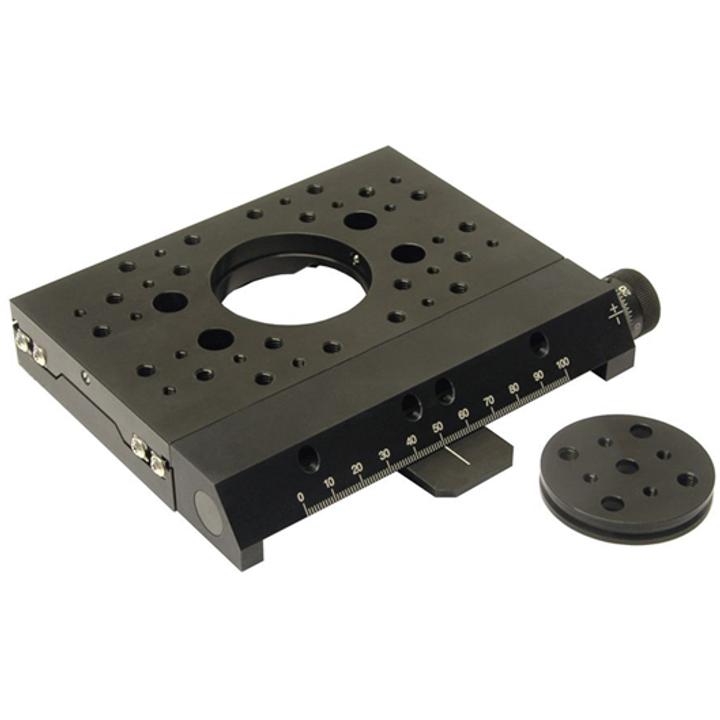

Low Profile Translation Stage with Quick Move Lever 860-0070-06 SKU: 860-0070-06
• Precise movement • 100 mm travel range • Stackable for XY positioning • 2 inches (Ø50 mm) clear aperture • Insert platform with M6, M4 and clearance holes • Instant targeting with subsequent fine adjustment possibility by pressing a lever for quick movement bypassing the…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Translation Stage |
| Travel Range | 100 mm |
| Travel Sensitivity | 1 µm |
| Reading Accuracy - Linear | 10 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 16 kg |
| Weight | 0.6 kg |
| Width | 147 mm |
| Length | 170 mm |
| Height | 26 mm |
