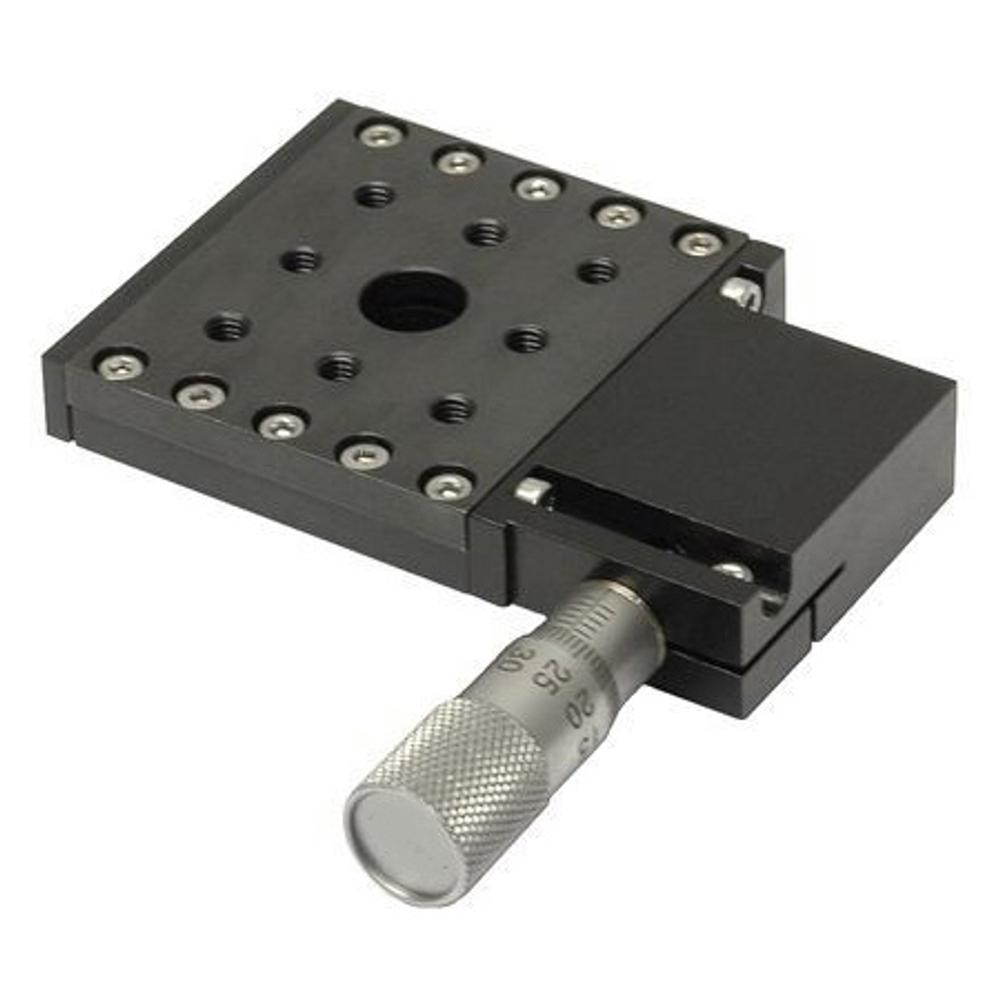

Side Control Linear Steel Stages 860-0092T
• Stable steel stage • 10 mm travel range • Side control linear stage • Driving micrometer screw • Precise ball bearings • Compact XYZ configuration with all screws from one side • Stainless steel and vacuum versions… Read more →
Order
| SKU | Product Type | Vacuum Compatibility | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|---|
| 860-0092-01T | Manual Translation Stage | False | Steel | 10 mm | X | 6 kg |
Out of stock
$357
|
Specifications
| Product Type | Manual Translation Stage |
| Vacuum Compatibility | False |
| Mount Material and Coating | Steel |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 6 kg |
| Load Capacity Vertical | 3 kg |
| Weight | 0.15 kg |
| Mounting Thread | M4 |
| Width | 75 mm |
| Length | 51 mm |
| Height | 20 mm |
Description
- Stable steel stage
- 10 mm travel range
- Side control linear stage
- Driving micrometer screw
- Precise ball bearings
- Compact XYZ configuration with all screws from one side
- Stainless steel and vacuum versions available
