Universal Base Plates 820-0135

Universal Base Plates 820-0135

Universal Base Plates are designed for attaching translation and rotation stages to optical tables or to another stages. 820-0135-02 is designed for stages like 820-0135-03 plus 860-0060-02, 860-0060-04, 960-0060-02,… Read more →

From $37 Configure & order →

Listed in

Order

SKU Spec
820-0135-02
Out of stock
$37
820-0135-03
Out of stock
$41
820-0135-04
Out of stock
$45

Specifications

820-0135-02 Universal Base Plate - Solidworks file
820-0135-02 Universal Base Plate - DWG file

Description

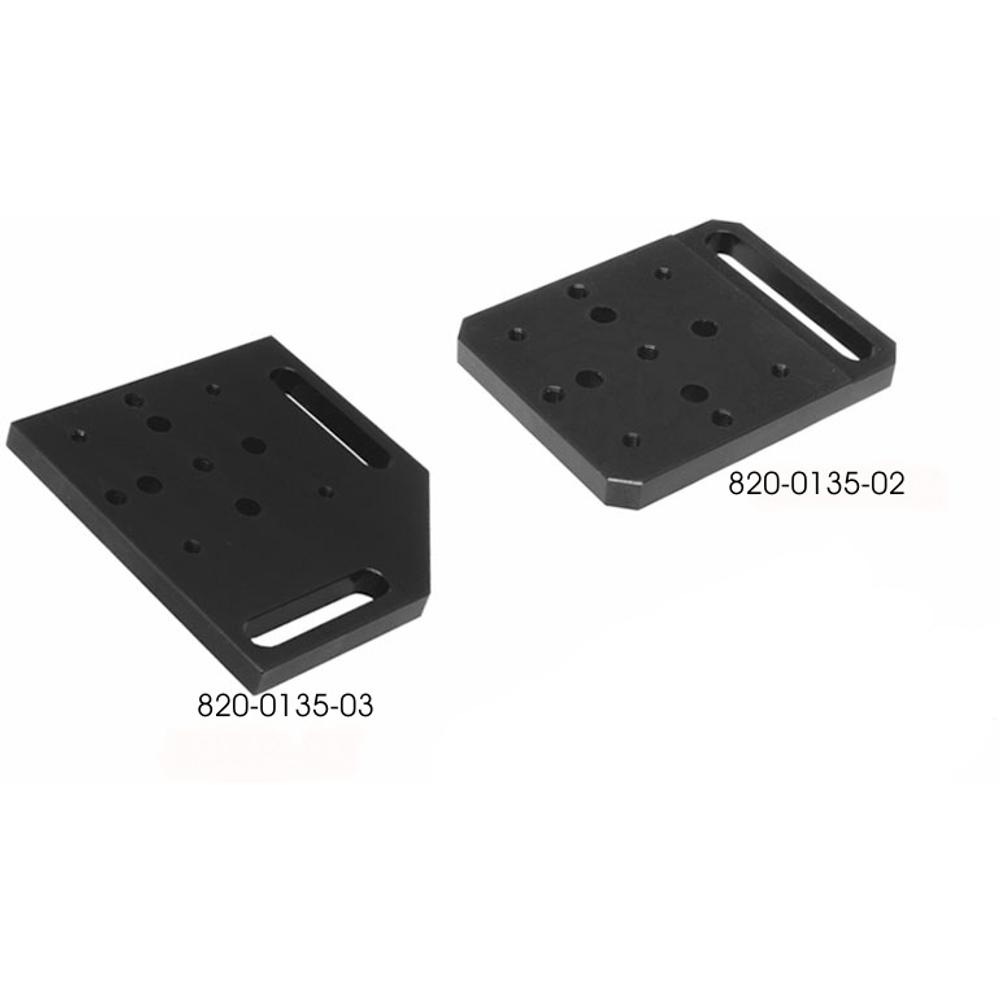

Universal Base Plates are designed for attaching translation and rotation stages to optical tables or to another stages.

820-0135-02 is designed for stages like 820-0135-03 plus 860-0060-02, 860-0060-04, 960-0060-02, 960-0060-04.

820-0135-03 is designed for 850-0200, 860-0054, 860-0056, 860-0092-01, 860-0092-02, 860-0094, 860-0094-02, 860-0096, 860-0098, 860-0170, 860-0180, 960-0170.

820-0135-04 is designed for 850-0200, 860-0054, 860-0056, 860-0092-01, 860-0092-02, 860-0094, 860-0094-02, 860-0096, 860-0098, 860-0170, 860-0180, 860-0060-02, 860-0060-04, 960-0060-02, 960-0060-04.

Material: Aluminium.

Finish: Black Anodized.

Downloads

PDF
UniversalBasePlates_820_0135.pdf PDF · 489 KB
