Aluminium Ball Bearing Vertical Stages 860-0098
• Compact • Ball bearing • High precision • Travel range 13 mm Aluminium Ball Bearing Vertical Stages 860-0098 is made in most compact design. Vernier scale is engraved on one side of the stage. Travel range 13… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 860-0098-03 |
Out of stock
$330
|
Specifications
| Travel Range | 13 mm | 13 mm |
|---|---|---|
| Sensitivity | 1 µm | 1 µm |
| Tracking accuracy | 1 µm | 1 µm |
| Reading accuracy | 5 µm | 5 µm |
| Load capacity | 5 kg | 5 kg |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Guide | Ball bearing | Ball bearing |
| Body material | Aluminium | Aluminium |
| Finish | Black anodized | Black anodized |
| Weight | 0.25 kg | 0.25 kg |
| Aluminium Ball Bearing Vertical Stages - Solidworks file | |
| Aluminium Ball Bearing Vertical Stages - DWG file | |
| Aluminium Ball Bearing Vertical Stages - STEP file |
Classification
| Type | translation|rotation |
Description
- Compact
- Ball bearing
- High precision
- Travel range 13 mm

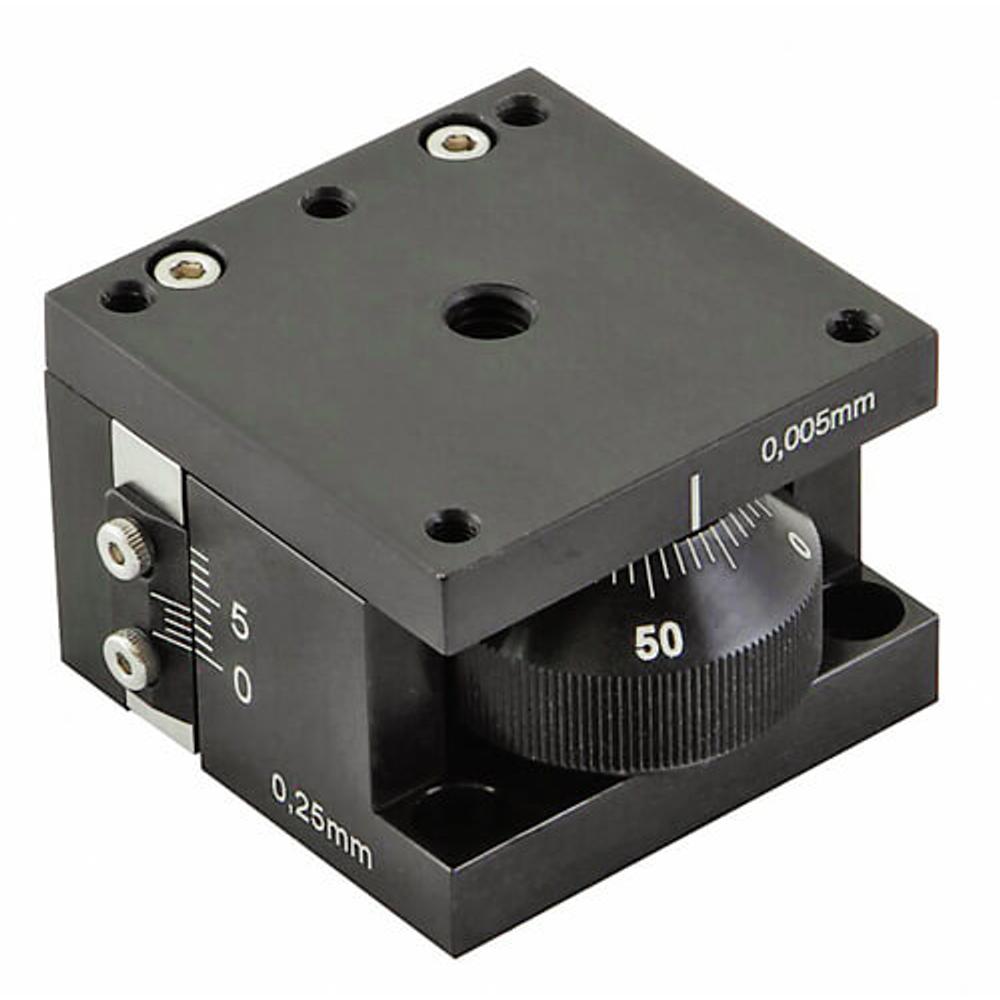

Aluminium Ball Bearing Vertical Stages 860-0098 is made in most compact design. Vernier scale is engraved on one side of the stage. Travel range 13 mm. Locking mechanism to secure stages in desired position is made on the other side.
Four M4 holes are made in the positioner's platform for mounting on other suitable surfaces, two of those can be used as thought holes for M3x10 screws to stack stages ontop of other, for example on translation stage 860-0096.
Universal Base Plate 820-0135-03 is required to fix the stages to a flat surface e.g. optical table.
