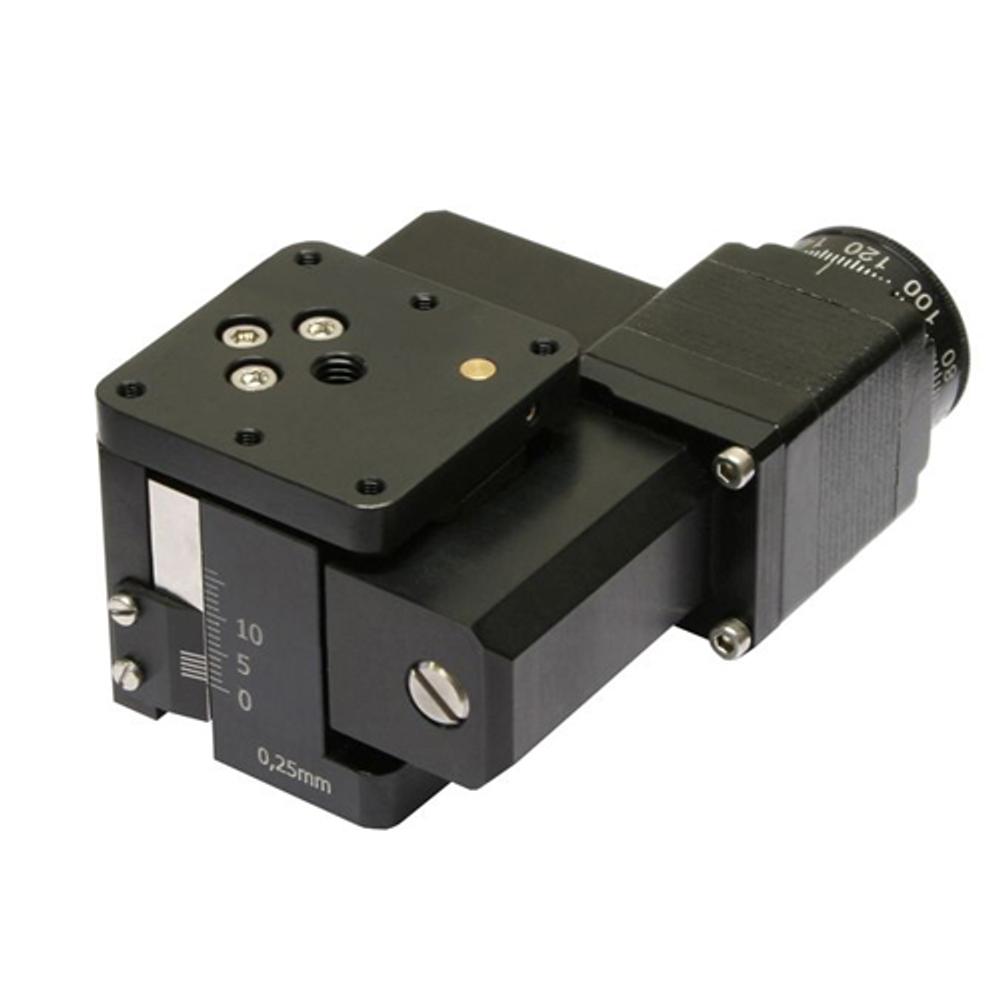

Motorized Vertical Translation Stage 960-0199
• Travel range 13 mm • Motors of other types are available • Stacks directly with stages 970-0080, 860-0170, 860-0096 and 860-0098-02 or 860-0099 • Vacuum version is available Motorized Vertical Translation Stages… Read more →
Order
| SKU | Product Type | Vacuum Compatibility | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 960-0199-01 | Motorized Translation Stage | False | 13 mm | Z | 6 kg |
Out of stock
$1,197
|
Specifications
| Product Type | Motorized Translation Stage |
| Vacuum Compatibility | False |
| Travel Range | 13 mm |
| Possible Axis Configurations | Z |
| Load Capacity Horizontal | 6 kg |
| Maximum Travel Speed | 0.416 mm/s |
| Weight | 0.45 kg |
| Cable Length, m | 1.6 m |
| Mounting Thread | M6, M4, M3 |
| Width | 65 mm |
| Length | 89 mm |
| Height | 55 mm |
| Travel Resolution | 0.083 µm |
| Lead Screw Pitch | 1 mm |
Description
- Travel range 13 mm
- Motors of other types are available
- Stacks directly with stages 970-0080, 860-0170, 860-0096 and 860-0098-02 or 860-0099
- Vacuum version is available
Motorized Vertical Translation Stages 960-0199 is made in most compact design. The platform has a central M6 mounting hole and six M3 mounting holes. Vernier scale is engraved on one side of the stage. Travel range 13 mm. Four M4 holes are made in the positioner's platform for mounting on other suitable surfaces.
Encoders or Revolution sensors are available on request. More information.
