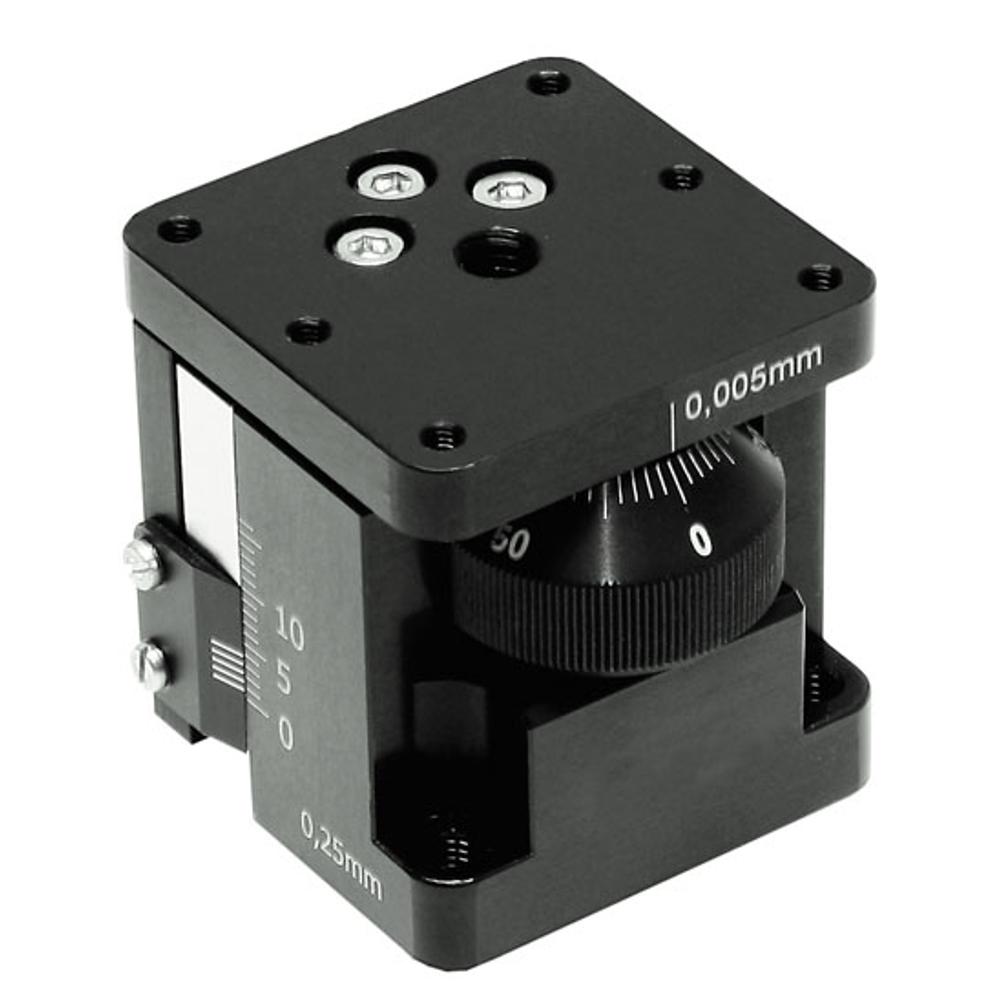

Vertical Stage 860-0099
• Compact • High precision • Travel range 13 mm • See 860-0098 for 5 mm travel • Motorized version 960-0199 is available Vertical Stage 860-0099 is made in most compact design. Vernier scale is engraved on one side of… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0099 | Manual Translation Stage | Black Anodised Aluminum | 13 mm | Z | 5 kg |
Out of stock
$372
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 13 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 1 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | Z |
| Load Capacity Horizontal | 5 kg |
| Weight | 0.25 kg |
| Mounting Thread | M6, M4, M3 |
| Width | 43.2 mm |
| Length | 45 mm |
| Height | 55 mm |
| Lead Screw Pitch | 0.25 mm |
Description
- Compact
- High precision
- Travel range 13 mm
- See 860-0098 for 5 mm travel
- Motorized version 960-0199 is available
Vertical Stage 860-0099 is made in most compact design. Vernier scale is engraved on one side of the stage. Travel range is 13 mm.
Four M4 holes are made in the positioner’s platform for mounting on other suitable surfaces, two of those can be used as thought holes for M3x10 screws to stack stages on top of others, for example on translation stage 860-0096.
