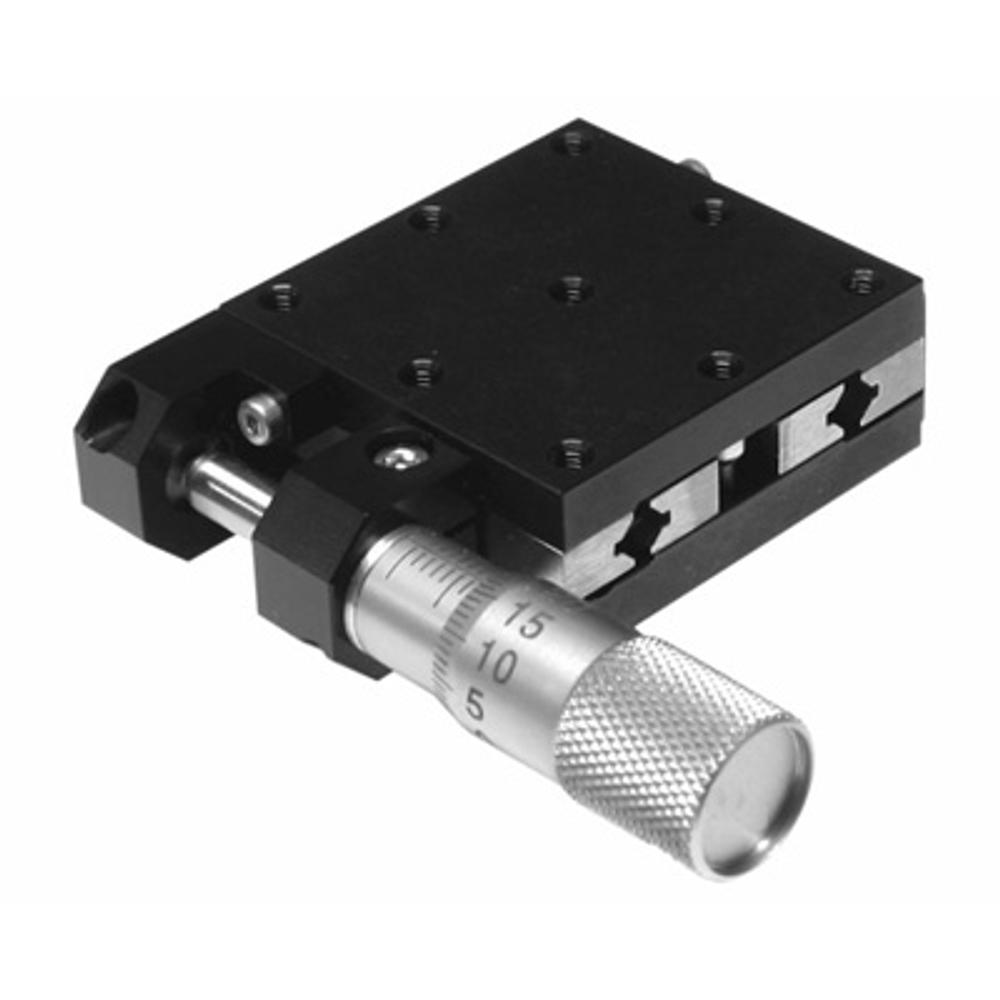

Aluminium Ball Bearing Stage 860-0096
• Compact design • Precise movement • 13 mm travel range • Lockable • X-Y direct stacking
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0096 | Manual Translation Stage | Black Anodised Aluminum | 13 mm | X | 10 kg |
Out of stock
$372
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 13 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 10 kg |
| Load Capacity Vertical | 3 kg |
| Weight | 0.12 kg |
| Mounting Thread | M3 |
| Width | 38.3 mm |
| Length | 58.2 mm |
| Height | 16 mm |
| Lead Screw Pitch | 0.5 mm |
Description
- Compact design
- Precise movement
- 13 mm travel range
- Lockable
- X-Y direct stacking
