Thin Micrometers 870-0045
• Designed for micro-positioning applications • Stainless steel screw with hardened steel ball tip, aluminium handle • Brass threaded collar • Very smooth motion allows positioning with sensitivity of 1 µm • Scale 10 µm… Read more →
Configure & order — pick a catalog variant or configure your own
Product
Travel Range
5 mm - 10 mm · 2 values
Any
mm
mm
Length
46 mm - 58.5 mm · 2 values
Any
mm
mm
Mounting method
Any
4
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Travel Range | Travel Sensitivity | Length | Screw Pitch | Mounting method | |
|---|---|---|---|---|---|---|---|
| 870-0045-02 | Micrometer Adjustment Screws | 10 mm | 1 µm | 58.5 mm | M6×0.5 | Mounting Barrel |
Out of stock
$71
|
| 870-0045-04 | Micrometer Adjustment Screws | 10 mm | 1 µm | 58.5 mm | M6×0.5 | Mounting Thread |
Out of stock
$71
|
| 870-0045-52 | Micrometer Adjustment Screws | 5 mm | 1 µm | 46 mm | M6×0.5 | Mounting Barrel |
Out of stock
$65
|
| 870-0045-54 | Micrometer Adjustment Screws | 5 mm | 1 µm | 46 mm | M6×0.5 | Mounting Thread |
Out of stock
$65
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Micrometer Adjustment Screws |
| Travel Sensitivity | 1 µm |
| Screw Pitch | M6×0.5 |
| Scale Division | 10 µm |
Description
- Designed for micro-positioning applications
- Stainless steel screw with hardened steel ball tip, aluminium handle
- Brass threaded collar
- Very smooth motion allows positioning with sensitivity of 1 µm
- Scale 10 µm division
- Nominal travel 5, 10 mm

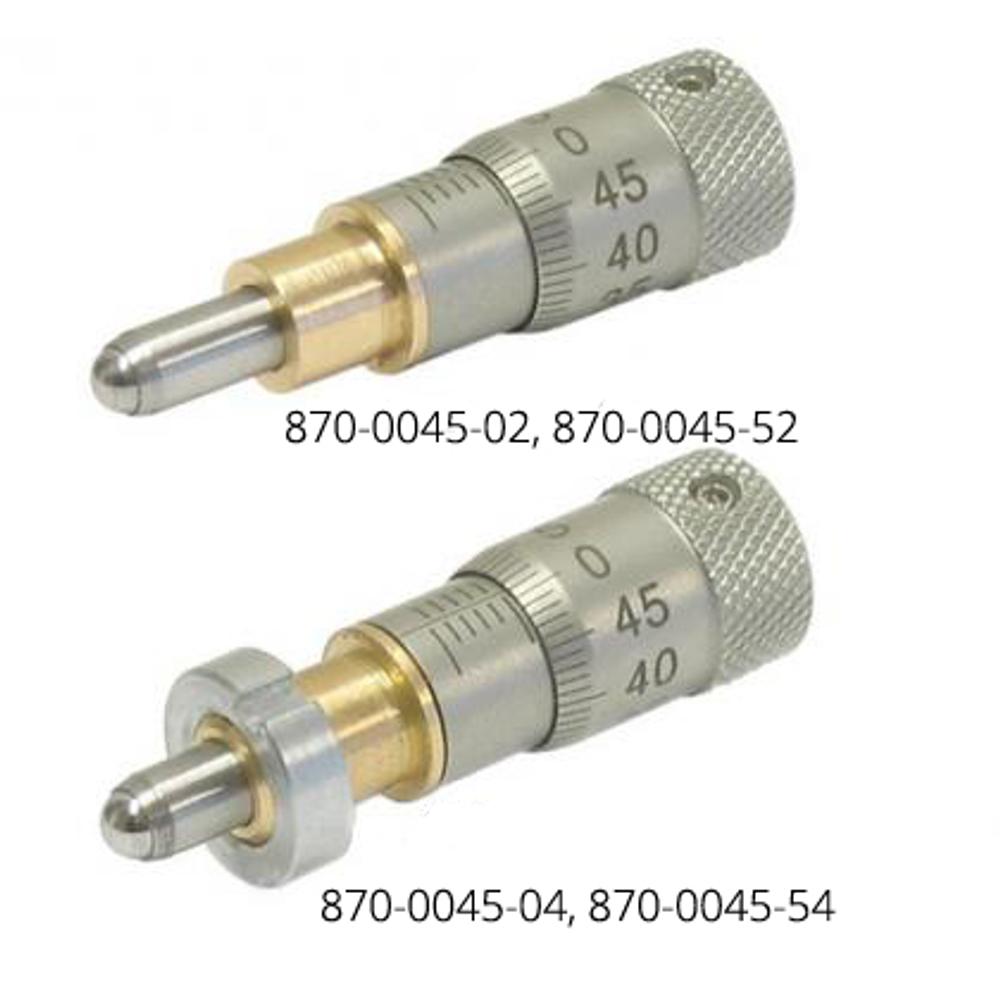

There are two types of the Thin Micrometers. They differ in their mounting method:
870-0045-02, 870-0045-52 has a Ø8x7 mm mounting barrel.
870-0045-04, 870-0045-54 can be mounted by tightening a fixing nut included on a M8x1 thread.
