Thin Micrometers 870-0045 SKU: 870-0045-52
• Designed for micro-positioning applications • Stainless steel screw with hardened steel ball tip, aluminium handle • Brass threaded collar • Very smooth motion allows positioning with sensitivity of 1 µm • Scale 10 µm division • Nominal travel 5, 10 mm There are two types of…
Variant specifications
| Specification | Value |
|---|---|
| Length | 46 mm |
| Nominal travel | 5 mm |
| Description | Without fixing nut |
Shared product specifications
These specifications apply across the Thin Micrometers 870-0045 product family.
| Micrometer screw thread | M6x0.5 |
| Sensitivity | 1 μm |
| Scale division | 10 μm |
| Pitch | 0.5 mm |

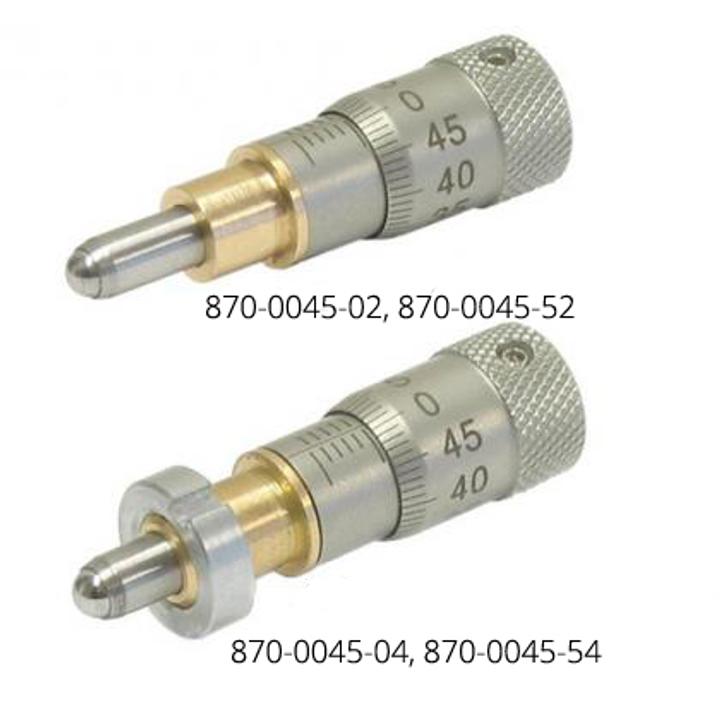

| Way of mounting: / 870-0045-02, 870-0045-52 / 870-0045-04, 870-0045-54 | Mounting barrel / Mounting sleeve with fixing nut |
Product brochures
Shared documentation for the complete product family.
