Ultra Low Profile Steel Translation Stages. Single and Two-Axes 860-0092
• 10.5 mm in height • 1axis stage • Compact X-Y configuration • Exceptionally precise orientation of axes at 90° • Precision movement • 10 travel range • Stages of stainless steel are available Precision ball bearings… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Vacuum Compatibility | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|---|
| 860-0092-01 | Manual Translation Stage | False | Steel | 10 mm | X | 6 kg |
Out of stock
$296
|
| 860-0092-01SS | Manual Translation Stage | False | Stainless Steel | 10 mm | X | 6 kg |
Out of stock
$395
|
| 860-0092-01SSV | Manual Translation Stage | True | Stainless Steel | 10 mm | X | 6 kg |
Out of stock
—
|
| 860-0092-02 | Manual Translation Stage | False | Steel | 10 mm | XY | 6 kg |
Out of stock
$514
|
| 860-0092-02SS | Manual Translation Stage | False | Stainless Steel | 10 mm | XY | 6 kg |
Out of stock
$609
|
| 860-0092-02SSV | Manual Translation Stage | True | Stainless Steel | 10 mm | XY | 6 kg |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Translation Stage |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Load Capacity Horizontal | 6 kg |
| Load Capacity Vertical | 3 kg |
| Mounting Thread | M4 |
| Length | 50.5 mm |
Description
- 10.5 mm in height
- 1axis stage
- Compact X-Y configuration
- Exceptionally precise orientation of axes at 90°
- Precision movement
- 10 travel range
- Stages of stainless steel are available

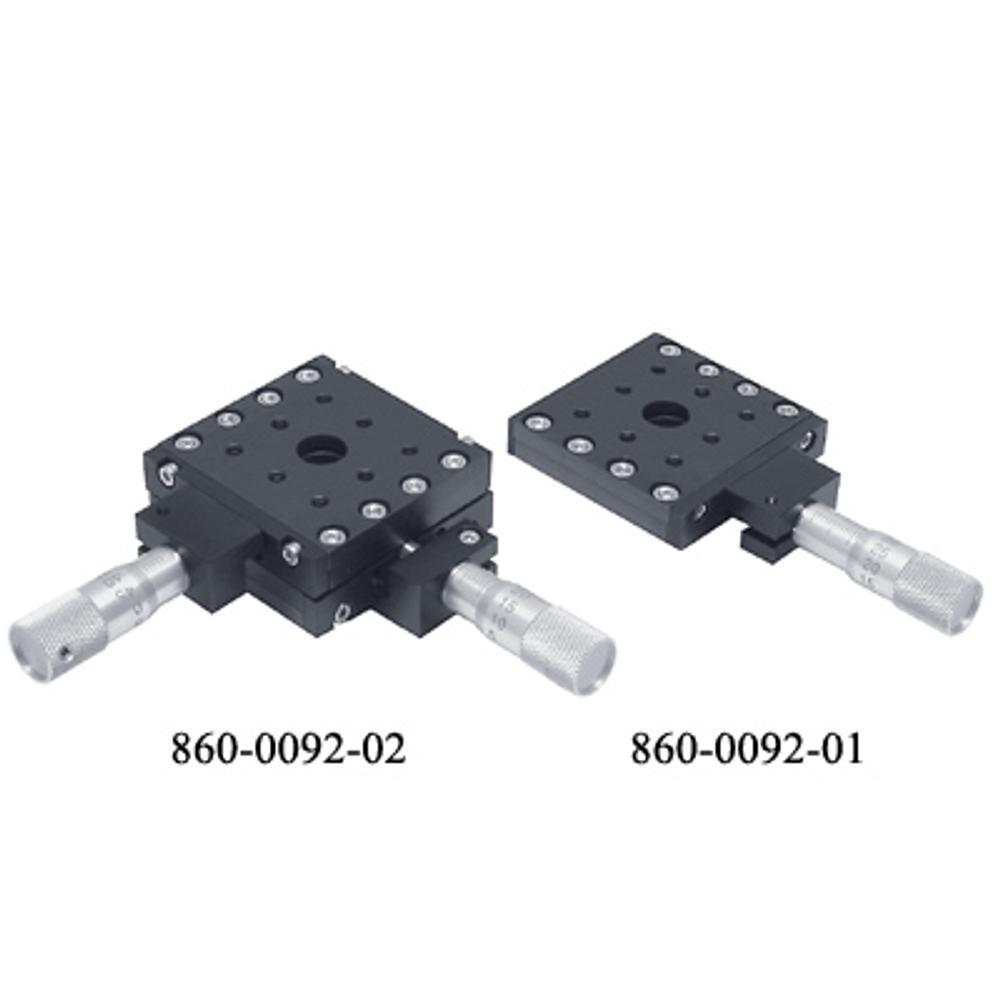

Precision ball bearings Ultra Low Profile Steel Two-Axes 860-0092-02 and Single Axis 860-0092-01 translation Stages. The height of single axis translation stage is 10.5 mm, and of two axes translation stage – 20 mm. To match the low height of the stages thin Micrometers 870-0045-02 with small knob diameter (13 mm) are used as driving screws.
It is possible to easily combine 860-0092-02, 860-0092-01 and angle bracket 810-0140 to have 3 axis translation system. Difference between models 860-0092-01 and 860-0092-01U is that the 860-0092-01U has a reversed central hole compared to the 860-0092-01. Although the system looks very light and thin, it is very reliable and precise.
