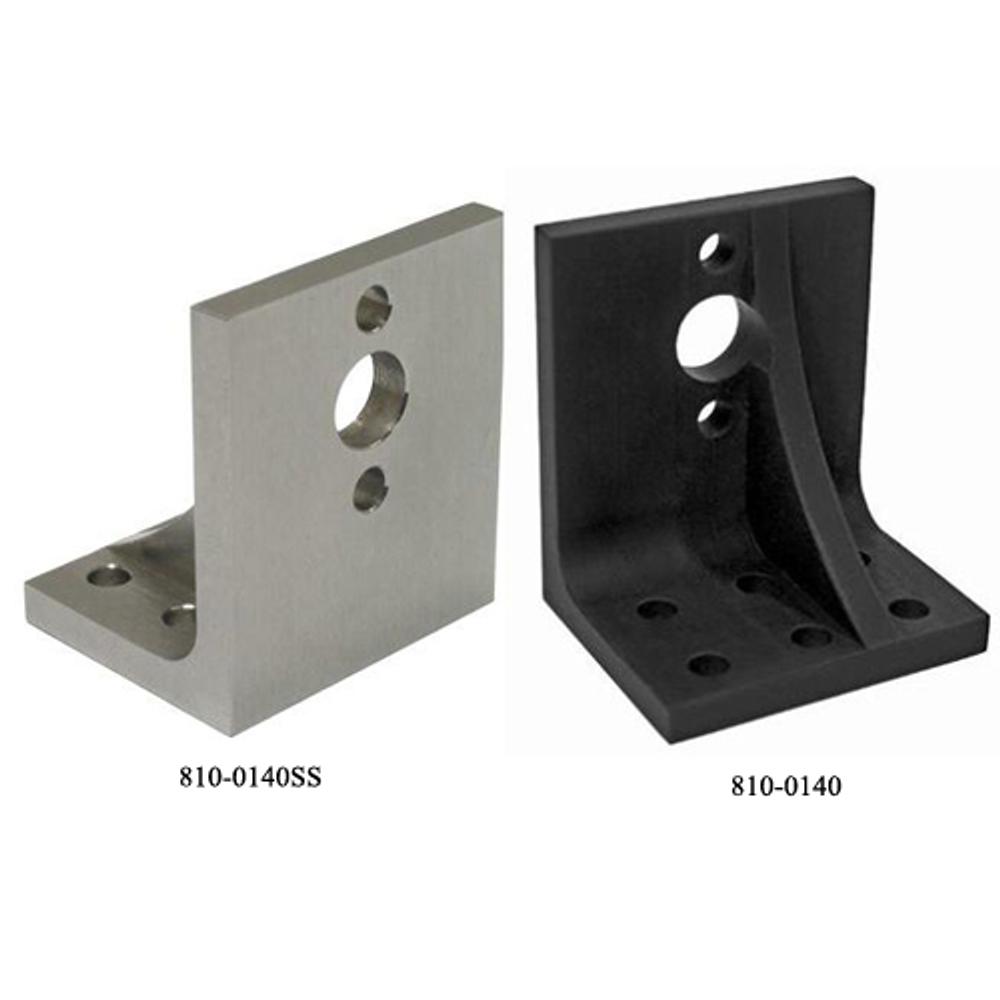

Angle Bracket 810-0140
Angle Bracket 810-0140 is ideally suited for orthogonally attaching Single-Axis Translation Stage 860-0092-01 to a Two-Axes Translation Stage 860-0092-02 or 860-0094. 810-0140 may as well be used to attach units of… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Width | Length | Height | Mount Material and Coating | |
|---|---|---|---|---|---|---|
| 810-0140 | Angle Bracket | 40 mm | 33 mm | 46 mm | Black Anodised Aluminum |
Out of stock
$29
|
| 810-0140SS | Angle Bracket | 40 mm | 33 mm | 46 mm | Stainless Steel |
Out of stock
$65
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Angle Bracket |
| Width | 40 mm |
| Length | 33 mm |
| Height | 46 mm |
| Hole spacing | 12.5 mm |
Description
Angle Bracket 810-0140 is ideally suited for orthogonally attaching Single-Axis Translation Stage 860-0092-01 to a Two-Axes Translation Stage 860-0092-02 or 860-0094. 810-0140 may as well be used to attach units of other models together or to the base surfaces.
810-0140 has holes to attach translators with M4 screws. It also has a hole of Ø10mm which can serve as a clear aperture.
Material: black anodized aluminium.
