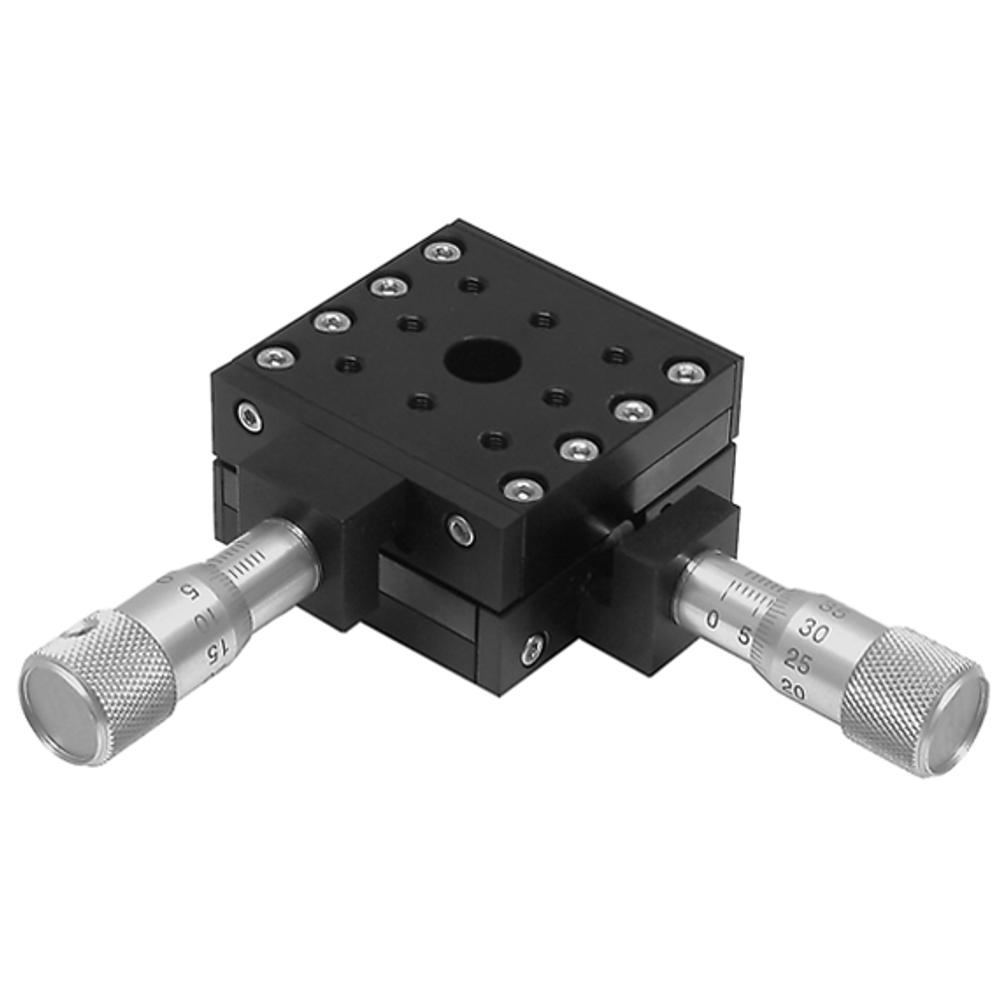

Low Profile Two-Axes Aluminium Translation Stage 860-0094
• Compact X-Y configuration • Exceptionally precise orientation of axes at 90° • Precision movement • 10 mm travel range • Precision ball bearings • Perpendicular and side control configuration Low Profile Two-Axis… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0094 | Manual Translation Stage | Black Anodised Aluminum | 10 mm | XY | 15 kg |
Out of stock
$478
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | XY |
| Load Capacity Horizontal | 15 kg |
| Load Capacity Vertical | 5 kg |
| Weight | 0.38 kg |
| Mounting Thread | M4 |
| Width | 51 mm |
| Length | 51 mm |
| Height | 28 mm |
Description
- Compact X-Y configuration
- Exceptionally precise orientation of axes at 90°
- Precision movement
- 10 mm travel range
- Precision ball bearings
- Perpendicular and side control configuration
Low Profile Two-Axis Aluminium Translation Stage 860-0094 provides smooth, precise, X-Y axis movement. The travel of this Stage is 10 mm with resolution of 10 µm.
Eight M4 tapped holes are provided in order to mount other components. It can be directly mounted to breadboards and other equipment from our by use of mounting holes Ø4.5 mm and M4.
The base and the platform are produced from the black anodized aluminium.
For Z axis use Translation Stage 860-0092 and Angle Bracket 810-0140.
