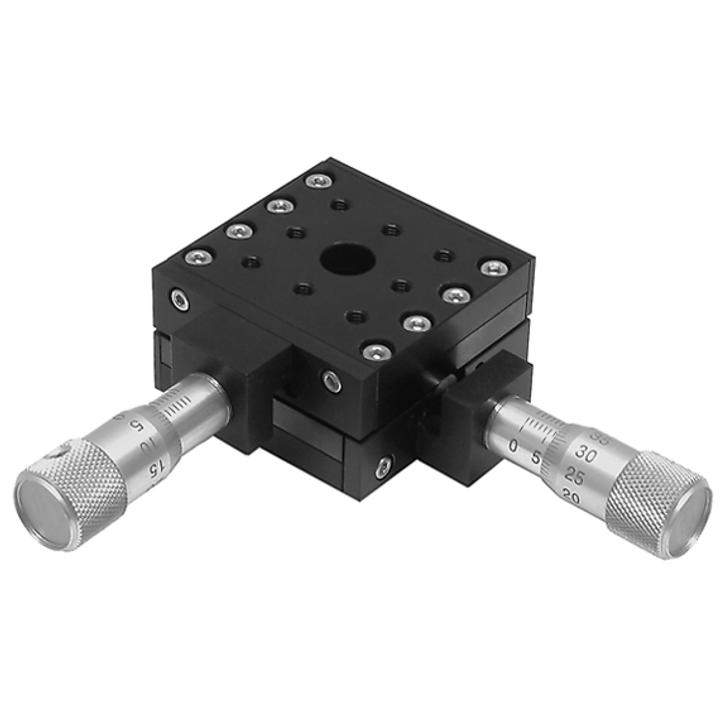

Low Profile Two-Axes Aluminium Translation Stage 860-0094 SKU: 860-0094
• Compact X-Y configuration • Exceptionally precise orientation of axes at 90° • Precision movement • 10 mm travel range • Precision ball bearings • Perpendicular and side control configuration Low Profile Two-Axis Aluminium Translation Stage 860-0094 provides smooth, precise,…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | XY |
| Load Capacity Horizontal | 15 kg |
| Load Capacity Vertical | 5 kg |
| Weight | 0.38 kg |
| Mounting Thread | M4 |
| Width | 51 mm |
| Length | 51 mm |
| Height | 28 mm |
