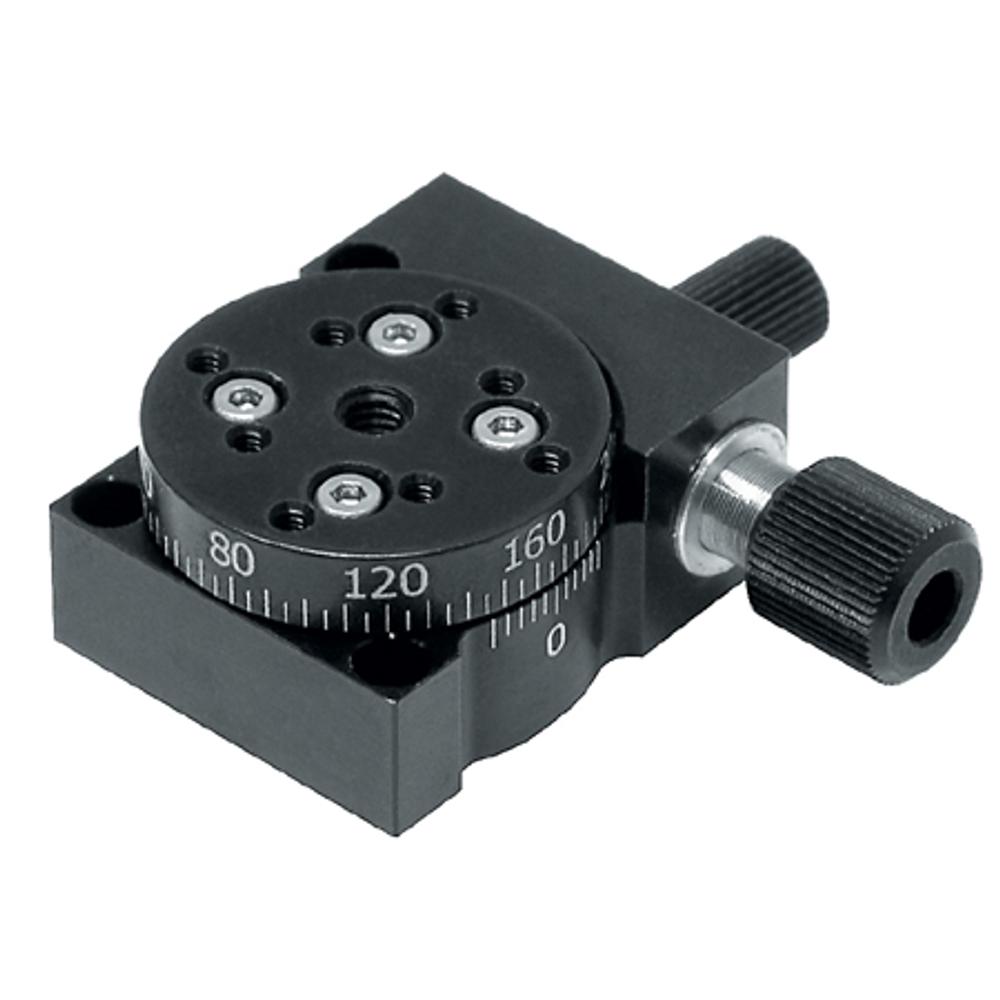

Micro Rotation Stage 860-0130
Micro Rotation Stage 860-0130 is a compact 360° rotation platform. Using a fine screw it’s possible to rotate platform precisely. It’s screw is 0.25 mm. Vernier can be read to 1°. Using M2 screws and an angle bracket… Read more →
Order
| SKU | Product Type | Rotation Range, coarse | Platform Size, mm | Load Capacity Horizontal | |
|---|---|---|---|---|---|
| 860-0130 | Manual Rotation Stage | 360 deg | Ø25 | 0.1 kg |
Out of stock
$309
|
| 860-0130-45 | Manual Rotation Stage | 360 deg | Ø25 | 0.1 kg |
Out of stock
$340
|
Specifications
| Product Type | Manual Rotation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Rotation Range, coarse | 360 deg |
| Rotation Range, fine | 15 deg |
| Reading Accuracy - Angular | 1 deg |
| Wobble | 1 min |
| Platform Size, mm | Ø25 |
| Load Capacity Horizontal | 0.1 kg |
| Load Capacity Vertical | 0.1 kg |
| Weight | 0.04 kg |
| Width | 25 mm |
| Length | 45 mm |
| Height | 43 mm |
| Rotation Sensitivity | 30 sec |
Description
Micro Rotation Stage 860-0130 is a compact 360° rotation platform.
Using a fine screw it’s possible to rotate platform precisely. It’s screw is 0.25 mm. Vernier can be read to 1°.
Using M2 screws and an angle bracket 810-0120, this compact stage could be attached to other micro stages (like 860-0100). Other angle brackets 810-0120 are available in order to attach the stage to other units, e.g. to 840-0060.
The stage is produced from black anodized aluminium.
