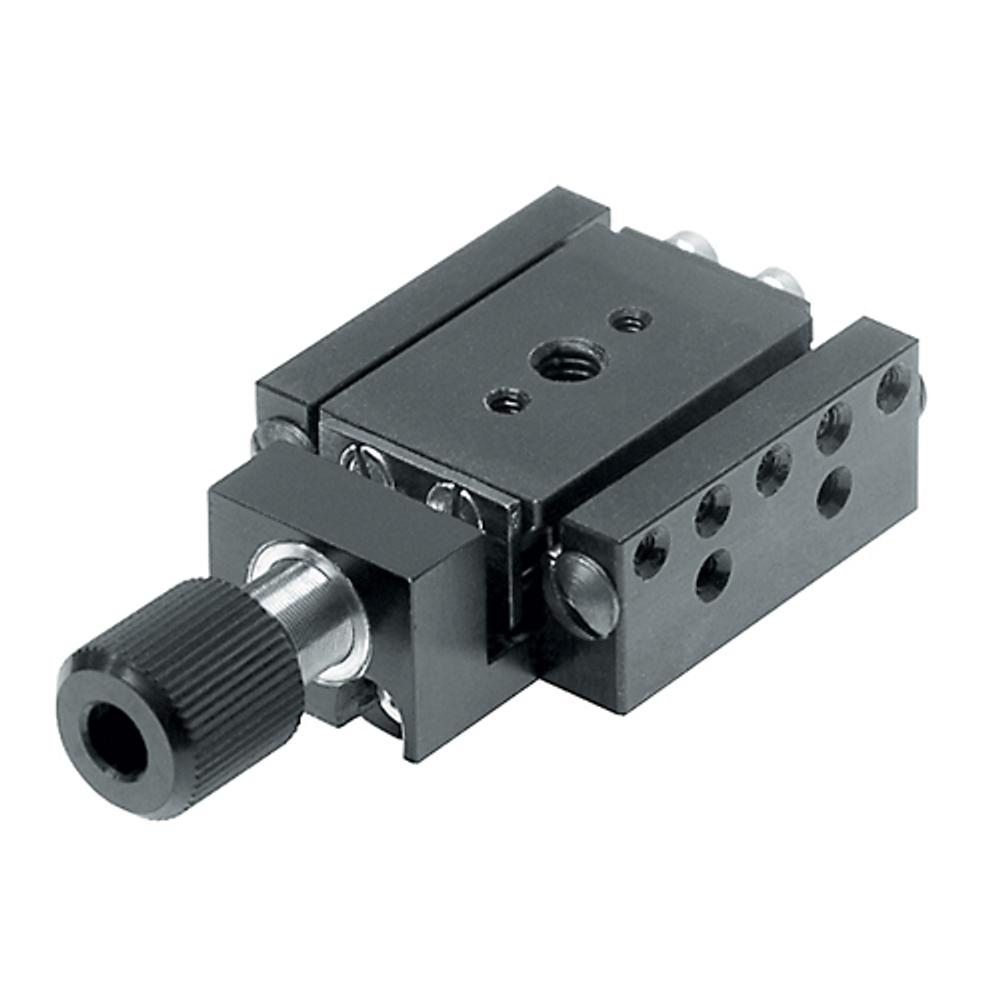

Micro Translation Stage 860-0100
• compact configuration • precision movement • 5 mm travel range • precision ball bearings • X-Y units are available Micro Translation Stage 860-0100 provides smooth, precise single axis movement. The travel of this… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0100 | Manual Translation Stage | Black Anodised Aluminum | 5 mm | X | 0.5 kg |
Out of stock
$236
|
| 860-0100-05 | Manual Translation Stage | Black Anodised Aluminum | 5 mm | X | 0.5 kg |
Out of stock
$250
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 5 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 0.5 kg |
| Load Capacity Vertical | 0.2 kg |
| Mounting Thread | M4, M2 |
| Width | 25 mm |
| Length | 28 mm |
| Height | 12 mm |
Description
- compact configuration
- precision movement
- 5 mm travel range
- precision ball bearings
- X-Y units are available
Micro Translation Stage 860-0100 provides smooth, precise single axis movement. The travel of this stage is 5 mm with sensitivity of 1 µm.
For mounting components M2 and M4 tapped holes are provided. It can be directly mounted to breadboards and other equipment by mounting holes M2 and M4.
860-0100-05 configuration comes with an installed 870-055-02 Thin Micrometer.
The stages are designed to stack for x-y-z motion using angle brackets 810-0120. The base and the platform are produced from the black anodized aluminium.
