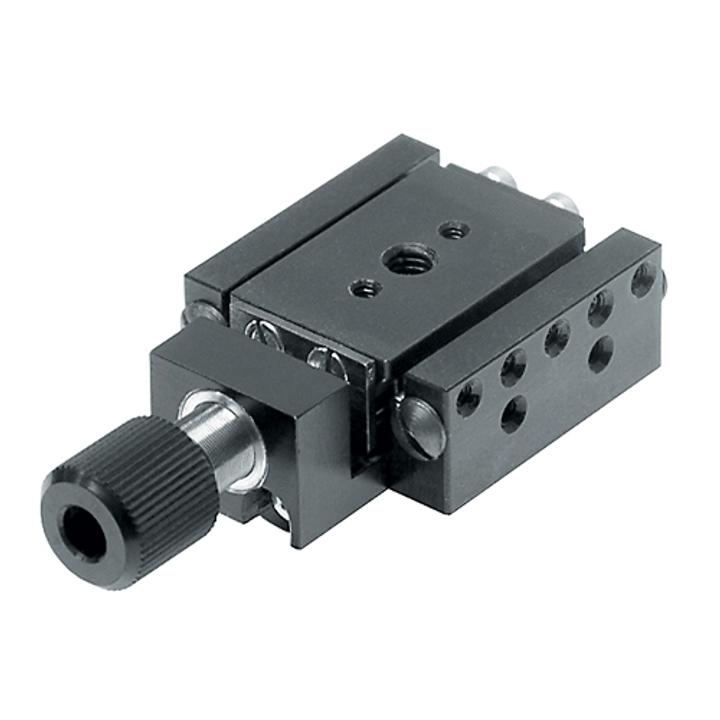

Micro Translation Stage 860-0100 SKU: 860-0100
• compact configuration • precision movement • 5 mm travel range • precision ball bearings • X-Y units are available Micro Translation Stage 860-0100 provides smooth, precise single axis movement. The travel of this stage is 5 mm with sensitivity of 1 µm. For mounting…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Translation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Travel Range | 5 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 0.5 kg |
| Load Capacity Vertical | 0.2 kg |
| Weight | 0.04 kg |
| Width | 25 mm |
| Length | 28 mm |
| Height | 12 mm |
Product brochures
Shared documentation for the complete product family.
