Mini Micrometers 870-0055
• Designed for micro-positioning applications • Stainless steel screw with hardened steel ball tip • Brass threaded collar • Very smooth motion allows positioning with sensitivity of 1 μm • Scale 10 μm division •… Read more →
Configure & order — pick a catalog variant or configure your own
Product
Mounting method
Any
4
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Travel Range | Travel Sensitivity | Length | Screw Pitch | Mounting method | |
|---|---|---|---|---|---|---|---|
| 870-0055-02 | Micrometer Adjustment Screws | 5 mm | 1 µm | 36.7 mm | M4×0.5 | Mounting Barrel |
Out of stock
$69
|
| 870-0055-02-BL | Micrometer Adjustment Screws | 5 mm | 1 µm | 36.7 mm | M4×0.5 | Mounting Barrel |
Out of stock
$69
|
| 870-0055-04 | Micrometer Adjustment Screws | 5 mm | 1 µm | 36.7 mm | M4×0.5 | Mounting Thread |
Out of stock
$72
|
| 870-0055-04-BL | Micrometer Adjustment Screws | 5 mm | 1 µm | 36.7 mm | M4×0.5 | Mounting Thread |
Out of stock
$72
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Micrometer Adjustment Screws |
| Travel Range | 5 mm |
| Travel Sensitivity | 1 µm |
| Length | 36.7 mm |
| Screw Pitch | M4×0.5 |
| Axial Load Capacity | 60 N |
| Scale Division | 10 µm |
Description
- Designed for micro-positioning applications
- Stainless steel screw with hardened steel ball tip
- Brass threaded collar
- Very smooth motion allows positioning with sensitivity of 1 μm
- Scale 10 μm division
- Nominal travel 6.35 mm

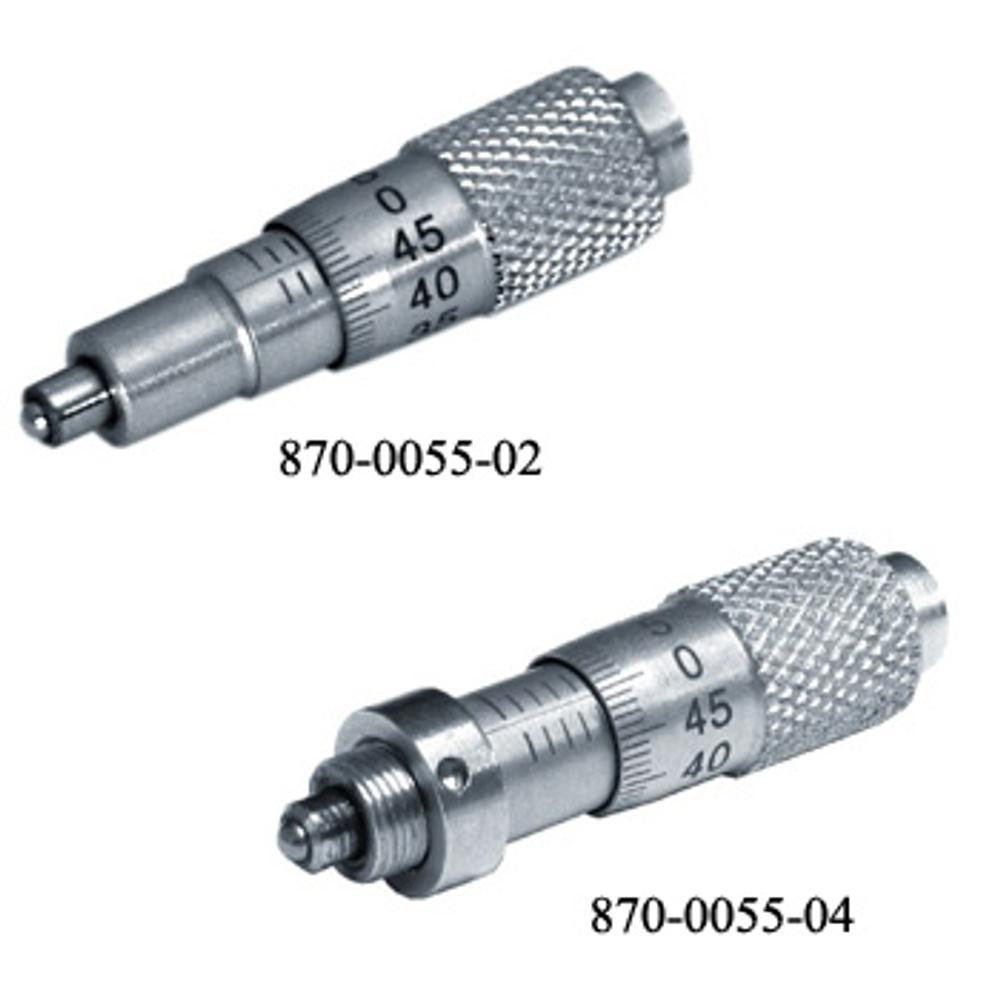

There are two types of the Mini Micrometers – 870-0055-02 and 870-0055-04. They differ in their mounting method:
870-0055-02 has a Ø6x6 mm mounting barrel.
870-0055-04 series micrometer is designed to be mounted using the M6x0.5 thread. Final position of the micrometer can be set by fastening the included fixing nut.
