Stainless Steel Single to Multi-Axis Stages 860-0054
• Solid box design • Compact design • 6 mm travel range • Large mounting surface • Easily stackable for X-Y configuration • Made entirely of stainless steel – easily adaptable for vacuum applications Stable Steel… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0054 | Manual Translation Stage | Stainless Steel | 6 mm | X | 45 kg |
Out of stock
$237
|
| 860-0054-02 | Manual Translation Stage | Stainless Steel | 6 mm | X | 45 kg |
Out of stock
$250
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Stainless Steel |
| Travel Range | 6 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 10 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 45 kg |
| Load Capacity Vertical | 3 kg |
| Weight | 0.1 kg |
| Width | 29 mm |
| Length | 38.5 mm |
| Height | 13 mm |
Description
- Solid box design
- Compact design
- 6 mm travel range
- Large mounting surface
- Easily stackable for X-Y configuration
- Made entirely of stainless steel – easily adaptable for vacuum applications

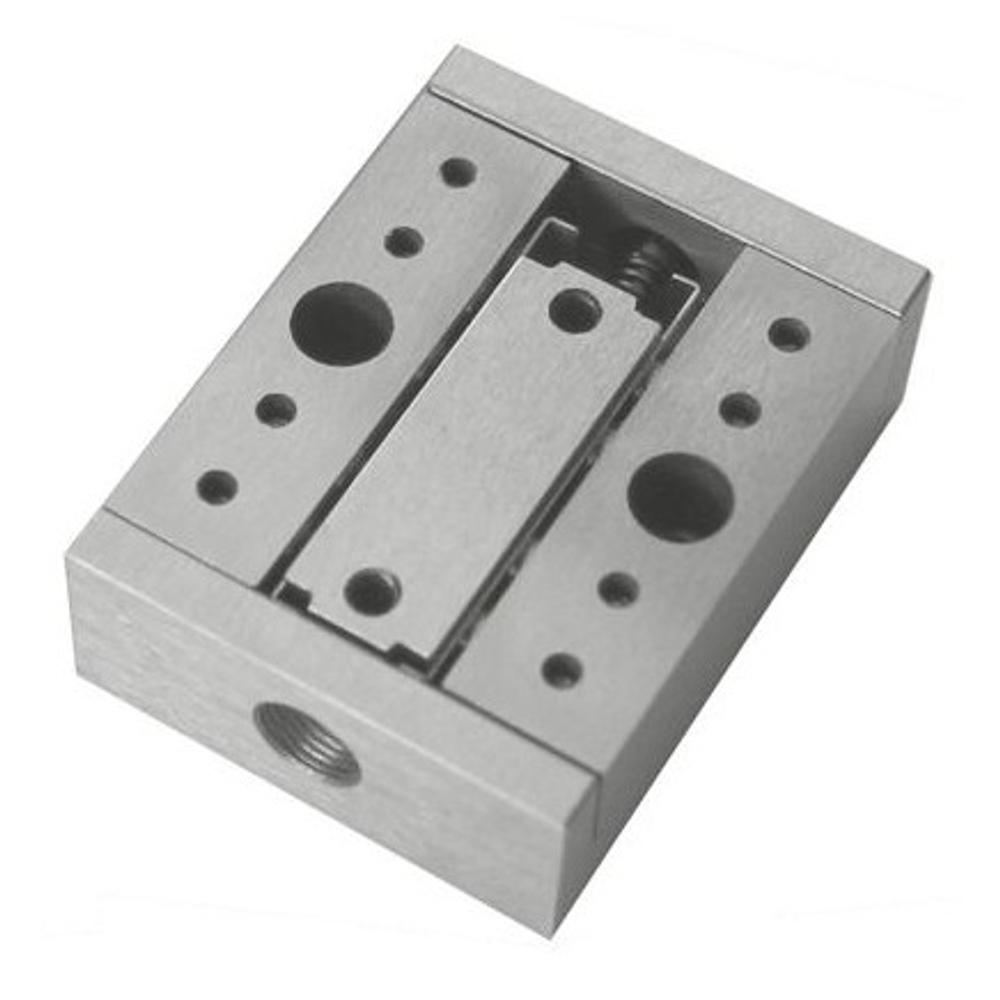

Stable Steel Translation Stages 860-0054 have low profile, increased stability and precision.
Box design reinforces the stage, reducing flex. Steel, as a material, adds to stability. The platform is preloaded by springs. The stages can be stacked immediately to other units, or to their own type (e.g. in X-Y configuration). The stages can be used upside-down.
The stages are entirely made of stainless steel.
Ordering information:
860-0054 − model of metric dimensions − is the standard one.
860-0054-02 − model of imperial dimensions − is produced on demand.
Note: actuator is not included. It can be ordered separately. Suitable micrometers are: 870-0055-04, 870-0090M, 870-0090MN.
For vacuum applications please indicate this in your order. We will prepare the stage with appropriate components (e.g. apply alternative lubricants).
