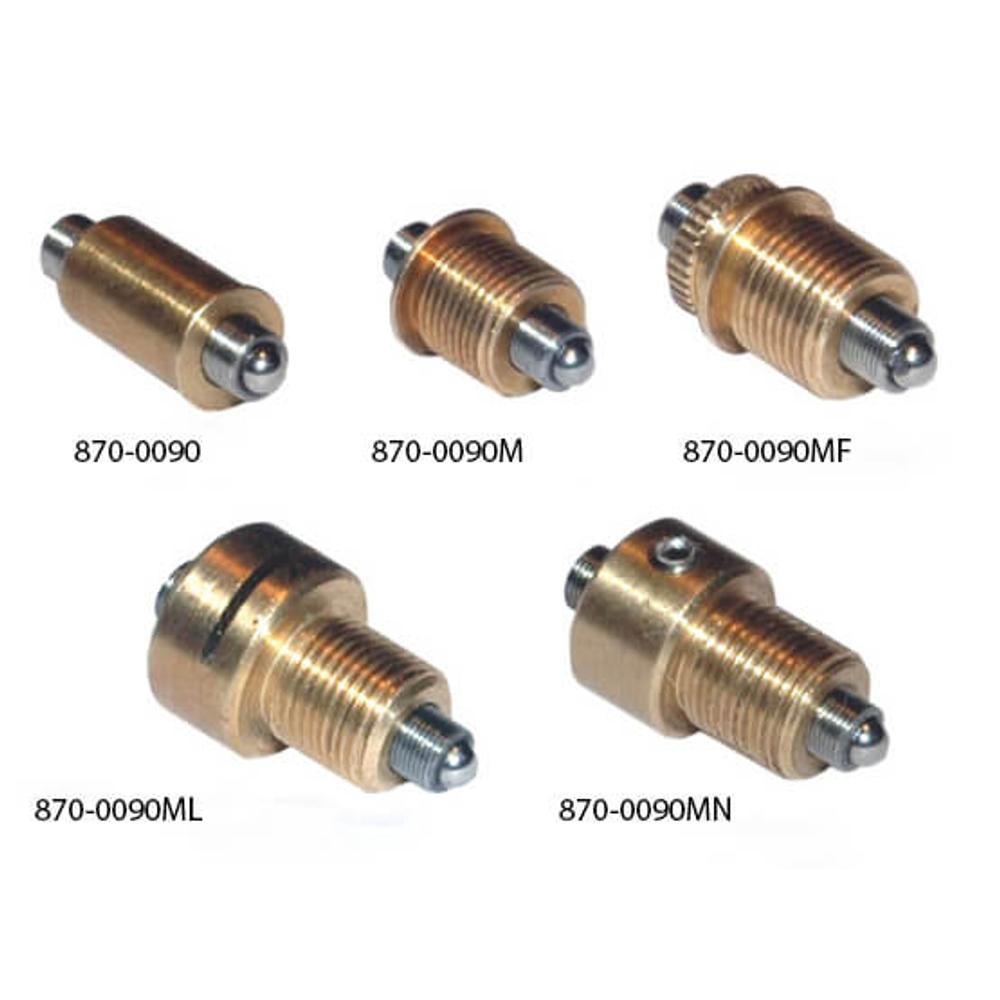

Fine Hex Adjustment Screws 870-0090, 870-0095
• Small (M3 or M4) adjustment screws • Screws of stainless steel • Brass nut with outer M6 mounting thread • Hex key drive • Screw thread pitch 0.25 mm • Travel 5 mm • Lockable models available Screws of pitch M4×0.25… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Travel Range | Travel Sensitivity | Length | Screw Pitch | Mounting method | |
|---|---|---|---|---|---|---|---|
| 870-0090 | Fine Adjustment Screws | 5 mm | 0.5 µm | 14.6 mm | M3×0.25 | Mounting Barrel |
Out of stock
$21
|
| 870-0090M | Fine Adjustment Screws | 5 mm | 0.5 µm | 12 mm | M3×0.25 | Mounting Thread |
Out of stock
$24
|
| 870-0090MF | Fine Adjustment Screws | 5 mm | 0.5 µm | 13.5 mm | M3×0.25 | Mounting Thread |
20 in stock
Ships in: 2–5 calendar days
$33
|
| 870-0090ML | Fine Adjustment Screws | 5 mm | 0.5 µm | 16 mm | M3×0.25 | Mounting Thread |
Out of stock
$33
|
| 870-0090MN | Fine Adjustment Screws | 5 mm | 0.5 µm | 16 mm | M3×0.25 | Mounting Thread |
Out of stock
$29
|
| 870-0095 | Fine Adjustment Screws | 5 mm | 0.5 µm | 14.6 mm | M4×0.25 | Mounting Barrel |
Out of stock
$21
|
| 870-0095M | Fine Adjustment Screws | 5 mm | 0.5 µm | 12 mm | M4×0.25 | Mounting Thread |
Out of stock
$24
|
| 870-0095MF | Fine Adjustment Screws | 5 mm | 0.5 µm | 13.5 mm | M4×0.25 | Mounting Thread |
Out of stock
$34
|
| 870-0095ML | Fine Adjustment Screws | 5 mm | 0.5 µm | 16 mm | M4×0.25 | Mounting Thread |
Out of stock
$34
|
| 870-0095MN | Fine Adjustment Screws | 5 mm | 0.5 µm | 16 mm | M4×0.25 | Mounting Thread |
Out of stock
$30
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Fine Adjustment Screws |
| Travel Range | 5 mm |
| Travel Sensitivity | 0.5 µm |
| Axial Load Capacity | 40 N |
| Weight | 0.01 kg |
Description
- Small (M3 or M4) adjustment screws
- Screws of stainless steel
- Brass nut with outer M6 mounting thread
- Hex key drive
- Screw thread pitch 0.25 mm
- Travel 5 mm
- Lockable models available
Screws of pitch M4×0.25 are similar in dimensions. They are: 870-0095, 870-0095M, 870-0095ML, 870-0095MN, and 870-0095MF. You may order lockable versions of our positioners. There are different locking mechanisms. They lock a Fine Screw, while causing a slightest displacement possible. A lock at each Fine Screw is tightened with a hex key. For lockable versions append letter "L" to the code of the standard unit.
Fixing nuts 3N6X05 (for 870-0090) and 3N8X1 (for 870-0095) are available for screws with threaded collar. It will allow to fix the screw at any depth in walls too thin for the 6 mm collar thread. It will fix a screw so that the locking screw is in desired orientation. In case the unit’s wall is thin we include a fixing nut with a screw. In other case you may order the nut separately.
