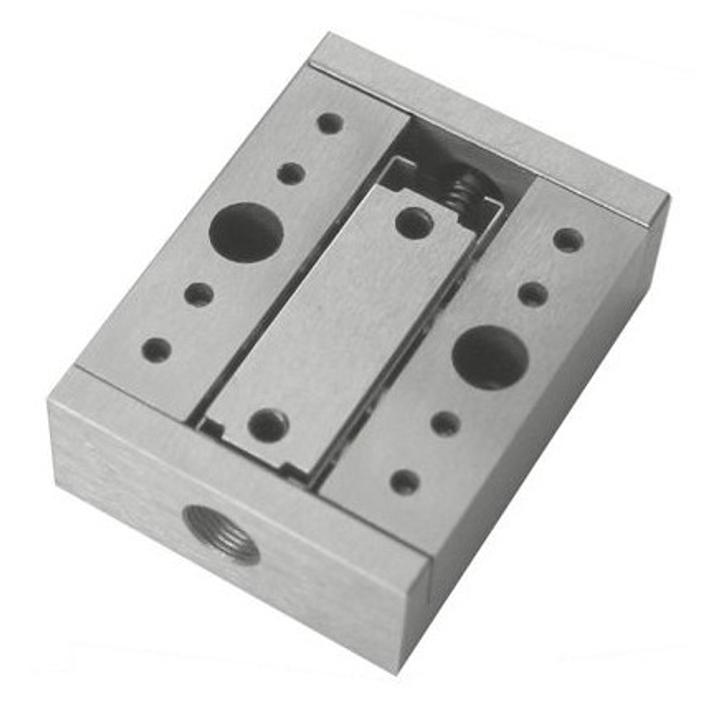

Stainless Steel Single to Multi-Axis Stages 860-0054 SKU: 860-0054-02
• Solid box design • Compact design • 6 mm travel range • Large mounting surface • Easily stackable for X-Y configuration • Made entirely of stainless steel – easily adaptable for vacuum applications Stable Steel Translation Stages 860-0054 have low profile, increased stability…
Shared product specifications
These specifications apply across the Stainless Steel Single to Multi-Axis Stages 860-0054 product family.
| Travel range | 6 mm |
| Sensitivity | 1 µm |
| Reading accuracy | 10 µm |
| Angular deviation | < 150 µrad |
| Load capacity: / horizontal / vertical | 45 kg / 3 kg |
| Tracking accuracy | 2 µm |
| Dimensions | 860-0054-02 (imperial) | 860-0054 (metric) |
|---|---|---|
| A | #8-32x0.11'' deep | M4x3 deep |
| B | #8-32x0.19'' deep | M4x5 deep |
| C | #4-40x0.23'' deep | M3x6 deep |
| D | 0.2x0.27'' deep | 6x7 deep |
Classification
| Type | translation|rotation |
| 860-0054 Stainless Steel Single to Multi-Axis Stages - STEP file |
