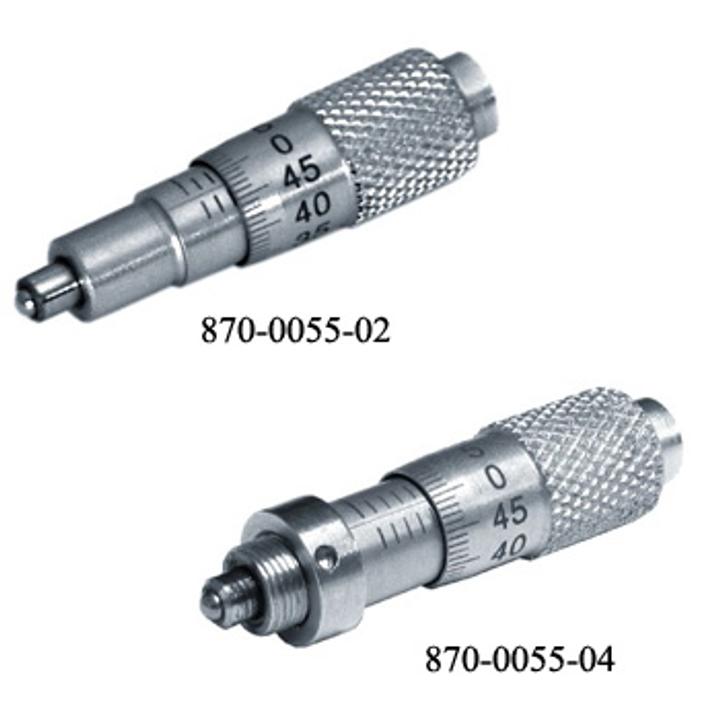

Mini Micrometers 870-0055 SKU: 870-0055-04
• Designed for micro-positioning applications • Stainless steel screw with hardened steel ball tip • Brass threaded collar • Very smooth motion allows positioning with sensitivity of 1 μm • Scale 10 μm division • Nominal travel 6.35 mm There are two types of the Mini…
Variant specifications
| Specification | Value |
|---|---|
| Nominal travel | 5 mm |
| Scale division | 10 µm |
| Sensitivity | 1 µm |
| Material | Stainless steel |
Shared product specifications
These specifications apply across the Mini Micrometers 870-0055 product family.
| Micrometer screw thread | M4x0.5 |
| Sensitivity | 1 μm |
| Travel range | 5 mm |
| Scale division | 10 μm |
| Axial load capacity | 60 N |
| Mini Micrometers - Solidworks file | |
| Mini Micrometers - DWG file | |
| Mini Micrometers - STEP file |
Variant files
Technical drawings, models and data files for SKU 870-0055-04.
Product brochures
Shared documentation for the complete product family.
