XZ Micro Translation Stage of Side Regulation 860-0102
• Ultra compact configuration • Precise rectilineal movement • 4 mm X-Z or X-Y travel range • Precision ball bearings • Fine Screws pitch 0.25 mm (100 threads per Inch) XZ Micro Translation Stage 860-0102 provides… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0102 | Manual Translation Stage | Black Anodised Aluminum | 4 mm | XY, XZ | 0.3 kg |
Out of stock
$340
|
| 860-0102-04 | Manual Translation Stage | Black Anodised Aluminum | 4 mm | XY, XZ | 0.3 kg |
Out of stock
$430
|
| 860-0102L | Manual Translation Stage | Black Anodised Aluminum | 4 mm | XY, XZ | 0.3 kg |
Out of stock
$383
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 4 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Possible Axis Configurations | XY, XZ |
| Load Capacity Horizontal | 0.3 kg |
| Load Capacity Vertical | 0.1 kg |
| Mounting Thread | M3, M2 |
| Width | 28.5 mm |
| Length | 22.6 mm |
| Height | 44 mm |
| Lead Screw Pitch | 0.25 mm |
Description
- Ultra compact configuration
- Precise rectilineal movement
- 4 mm X-Z or X-Y travel range
- Precision ball bearings
- Fine Screws pitch 0.25 mm (100 threads per Inch)

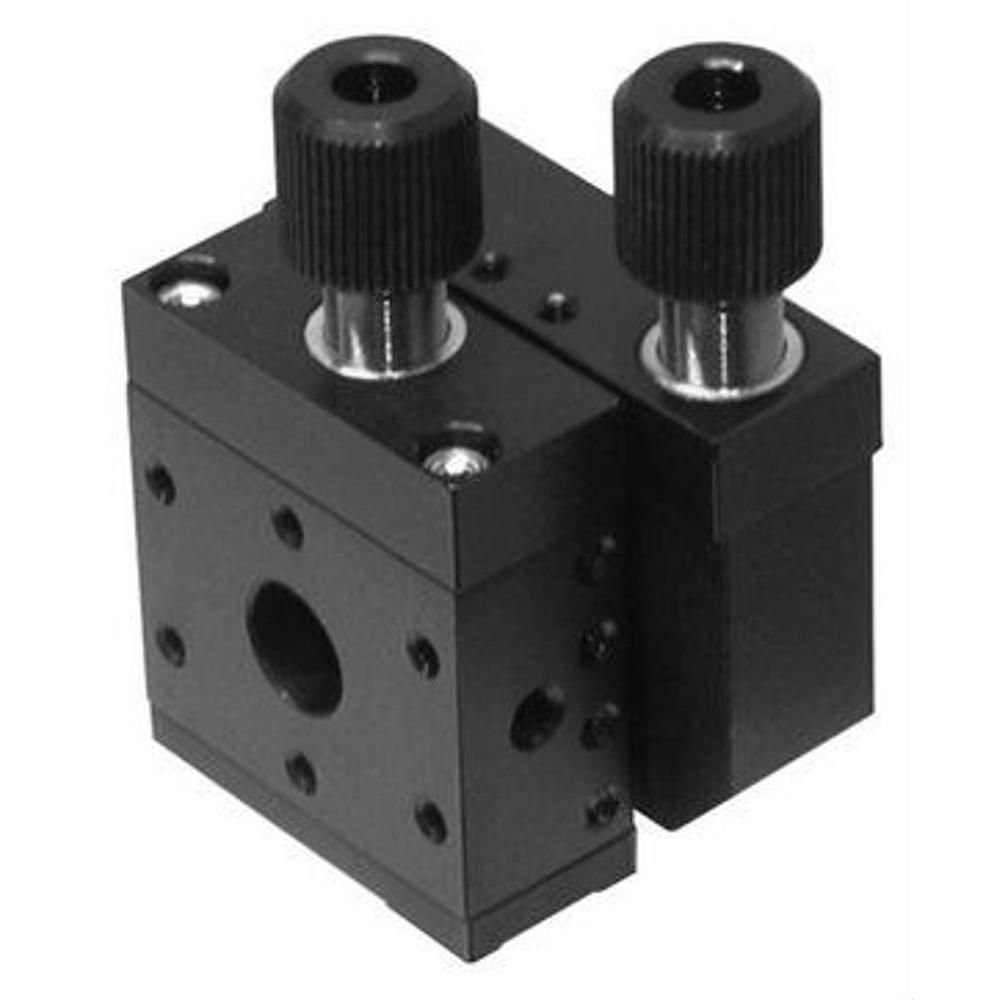

XZ Micro Translation Stage 860-0102 provides smooth, precise two axes movement. The driving screws are positioned so that the unit is controlled only from one side. That's why 860-0102 is very handy in optical schemes with very dense placement of instruments.
The travel of this stage is 4 mm with sensitivity of 5 µm. M2 tapped holes are provided for components mounting. The unit has a clear aperture of Ø7 mm. So it is ideally suited for use as a holder of diaphragms. The stage can be directly mounted on breadboards and other our equipment by use of mounting holes M3 and M2.

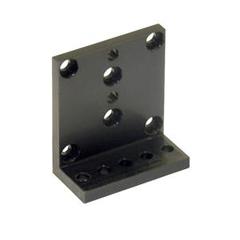

Angle bracket 810-0120 may be used to combine the stage with other units. Base plate must be ordered separately.
The base and the platform are made of black anodized aluminium.
