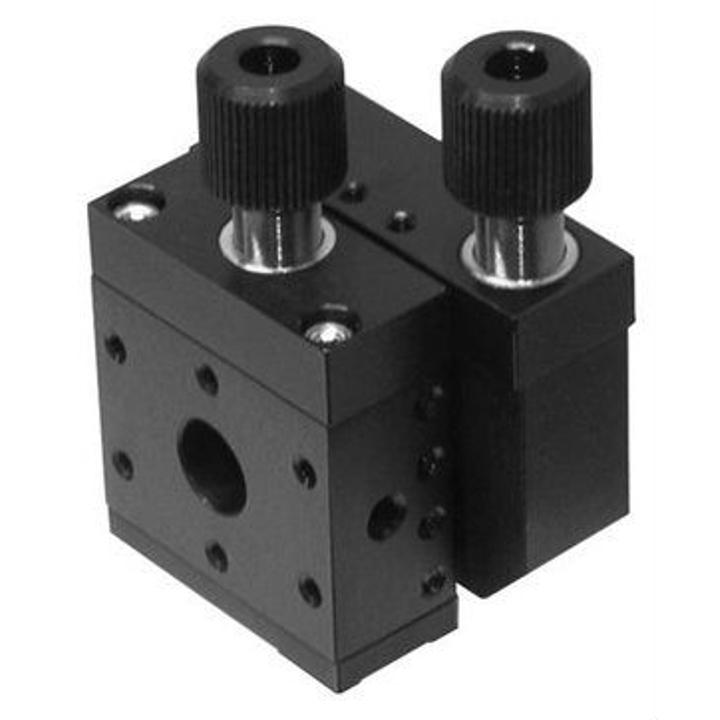

XZ Micro Translation Stage of Side Regulation 860-0102 SKU: 860-0102
• Ultra compact configuration • Precise rectilineal movement • 4 mm X-Z or X-Y travel range • Precision ball bearings • Fine Screws pitch 0.25 mm (100 threads per Inch) XZ Micro Translation Stage 860-0102 provides smooth, precise two axes movement. The driving screws are…
Variant specifications
| Specification | Value |
|---|---|
| Description | standard version |
Shared product specifications
These specifications apply across the XZ Micro Translation Stage of Side Regulation 860-0102 product family.
| Travel range | 4 mm |
| Sensitivity | 1 µm |
| Tracking accuracy | 2 µm |
| Load capacity: / horizontal / vertical | 0.3 kg / 0.1 kg |
| XZ Micro Translation Stage - Solidworks file | |
| XZ Micro Translation Stage - DWG file | |
| XZ Micro Translation Stage - STEP file |
Classification
| Type | translation|rotation |
