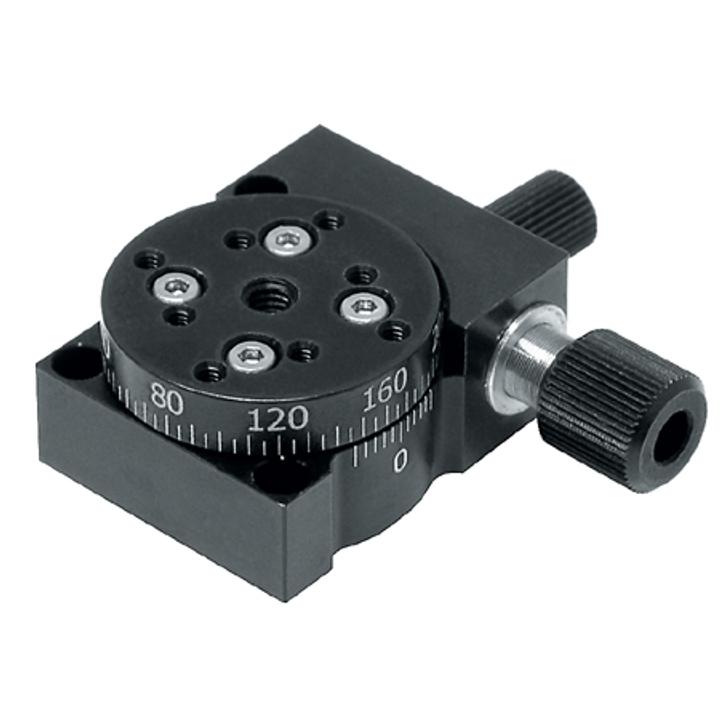

Micro Rotation Stage 860-0130 SKU: 860-0130
Micro Rotation Stage 860-0130 is a compact 360° rotation platform. Using a fine screw it’s possible to rotate platform precisely. It’s screw is 0.25 mm. Vernier can be read to 1°. Using M2 screws and an angle bracket 810-0120, this compact stage could be attached to other…
Shared product specifications
These specifications apply across the Micro Rotation Stage 860-0130 product family.
| Rotation range | 360° coarse; 15° fine |
| Reading accuracy | 1° |
| Sensitivity | 0.5 arcmin |
| Wobble | 1 arcmin |
| Load capacity: / horizontal / vertical | 0.1 kg / 0.1 kg |
| Micro Rotation Stage - Solidworks file | |
| Micro Rotation Stage - DWG file |
Classification
| Type | translation|rotation |
