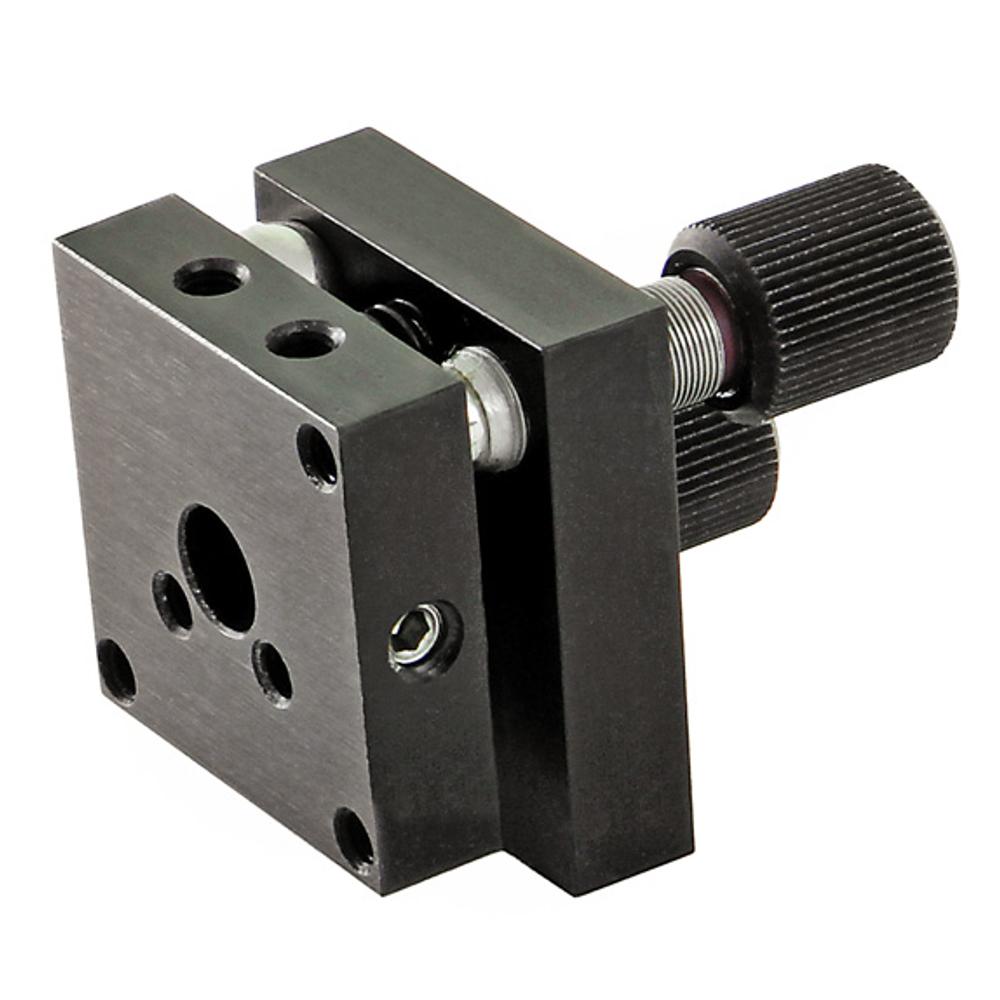

Mirror / Optics Mount 840-0060
These black anodized aluminium precision mirror mounts are ideal for holding 25 mm and smaller optics in tight spaces. The M4 and M6 taped holes are provided for mounting. • Miniature mounts for small optics • ±10°… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mounted Optics Diameter | Mount Material and Coating | Mounting Thread | |
|---|---|---|---|---|---|
| 840-0060 | Manual Optical Positioner, 2-screws | 0 mm - 25 mm | Black Anodised Aluminum | M4, M3 |
Out of stock
$52
|
| 840-0060-00 | Manual Optical Positioner, 2-screws | 12.7 mm - 25.4 mm | Black Anodised Aluminum | M4, M3 |
Out of stock
$65
|
| 840-0060-45 | Manual Optical Positioner, 2-screws | 12.7 mm - 25.4 mm | Black Anodised Aluminum | M4, M3 |
Out of stock
$78
|
| 840-0060S | Manual Optical Positioner, 2-screws | 0 mm - 25 mm | Black Anodised Aluminum | M4, M3 |
Out of stock
$65
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Optical Positioner, 2-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M4, M3 |
| Angular Tilt Range | 20 Deg |
| Tilt Sensitivity | 0 deg 0 min 10 sec |
| Number of Axes | 2 |
| Mount Clear Aperture | 6.2 mm |
| Screw Pitch | M6×0.35 |
Description
These black anodized aluminium precision mirror mounts are ideal for holding 25 mm and smaller optics in tight spaces. The M4 and M6 taped holes are provided for mounting.
- Miniature mounts for small optics
- ±10° tilt adjustments about two orthogonal axes
- High degree of versatility
- Made of black anodized aluminium
The Mirror/Optics Mount 840-0060 provides smooth and precise adjustments with sensitivity of 10 arcsec and can be used in horizontal position as a tilt stage with the Spring Clamp 840-0112 and the Mounting post. The mount has holes of M6×0.35 on its base for adjustment screws. As a standard, fine screws 870-0060 are used. The Mirror/Optics Mount 840-0060 has Ø6.2 mm clear aperture.
Mirror/Optics Mount 840-0060 with adapters 840-0060-00 and 840-0060-45 are suitable for round (Ø25.4 (1”) and Ø12.7(0.5”)) and square (15x15 mm and 20x20 mm) optical elements.
