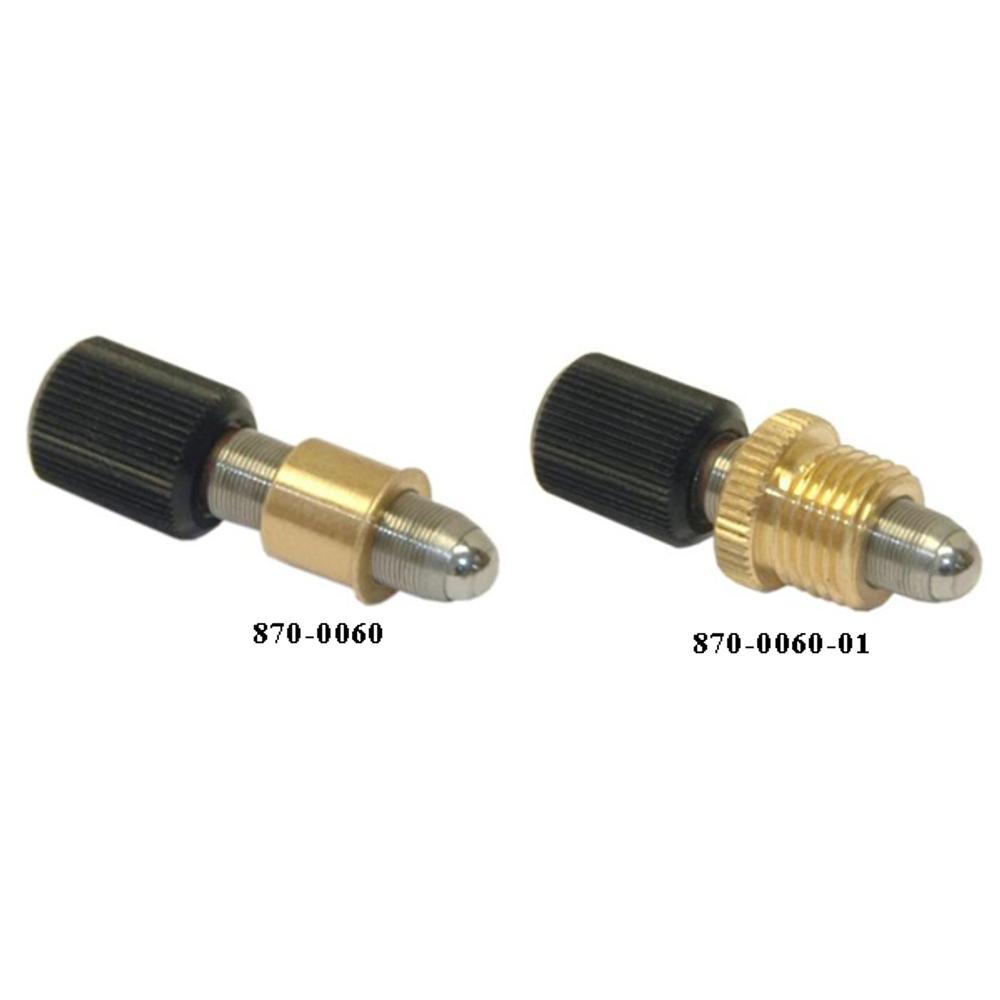

Compact Fine Screws 870-0060, 870-0060-01
Compact Fine Screws 870-0060 provide high resolution. Their unique design allows smooth adjustment and high repeatability. Using stainless steel screw / brass nut matching technology, backlash is in high precision… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 870-0060 |
Out of stock
$24
|
|
| 870-0060-01 |
17 in stock
Ships in: 2–5 calendar days
$29
|
Specifications
| Adjustment screw thread | M6x0.35 |
| Sensitivity | 1.3 μm |
| Nominal travel | 8 mm |
| Axial load capacity | 70 N |
| Compact Fine Screws - Solidworks file | |
| Compact Fine Screws - DWG file | |
| Compact Fine Screws - STEP file |
Description
Compact Fine Screws 870-0060 provide high resolution. Their unique design allows smooth adjustment and high repeatability. Using stainless steel screw / brass nut matching technology, backlash is in high precision M6x0.35 thread almost eliminated. The combination of metals provides a superior match for both movement and long lifetime.
870-0060 has a mounting diameter of Ø8 mm.
870-0060-01 has a mounting thread M10x1, or M10x0.5 as option.
A compact knob is made from black anodized aluminium.
